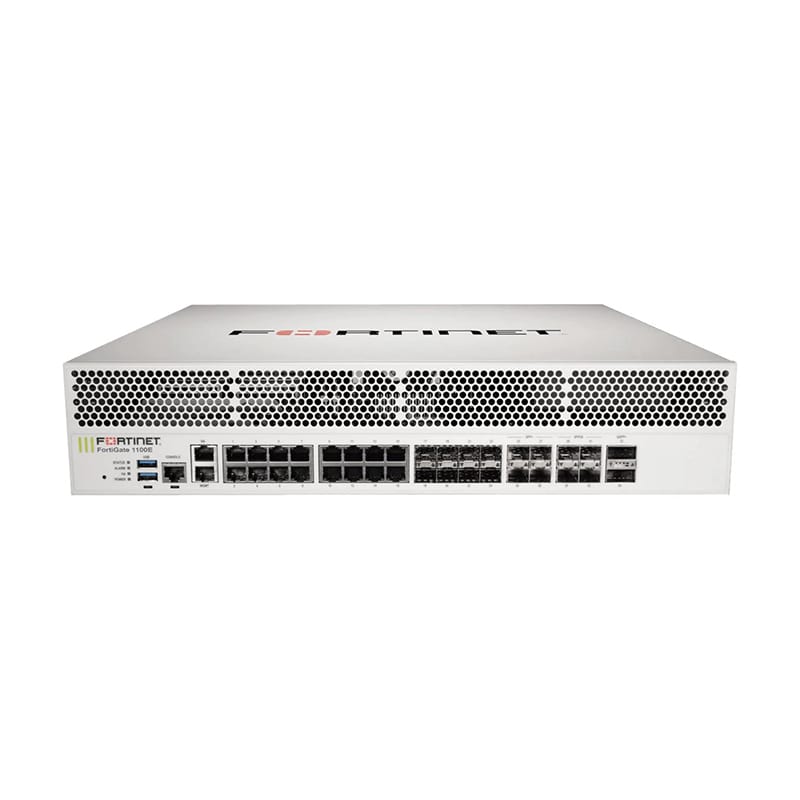

FG-1101E, Fortinet FortiGate 1101E Firewall, 2x40GE QSFP+, 960GB SSD, SPU NP6/CP9
SKU: FT:FG-1101E · MPN: FT:FG-1101E · Category: Storage
Fortinet FortiGate 1101E FG-1101E 2x 40GE QSFP+ slots, 4x 25GE SFP28 slots, 4x 10GE SFP+ slots, 8x GE SFP slots, 18x GE RJ45 ports (including 16x ports, 2x management/HA ports) SPU NP6 and CP9 hardware accelerated, 960GB SSD onboard storage, and 2 AC power supplies
Specifications
| Weight | 25.4 lbs (11.55 kg) |
|---|---|
| Humidity | 10 – 90% non-condensing |
| Compliance | FCC ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Noise Level | 66.7 dBA |
| Console Port | 1 |
| AC Power Input | 100 – 240V AC, 50/60 Hz |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6 |
| Forced Airflow | Front to Back |
| Onboard Storage | 2x 480 GB SSD |
| Heat Dissipation | 1,181 BTU/h |
| IPS Throughput 2 | 12.5 Gbps |
| Firewall Policies | 100,000 |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| SSL-VPN Throughput | 8.4 Gbps |
| Storage Temperature | -31 – 158 ° F (-35 – 70 ° C) |
| AC Current (Maximum) | 6A@120V, 3A@240V |
| DC Current (Maximum) | -- |
| NGFW Throughput 2, 4 | 9.8 Gbps |
| Included Transceivers | 2x SFP (SX 1 GE) |
| Operating Temperature | 32 – 104 ° F (0 – 40 ° C) |
| Redundant Power Supplies | Yes, Hot swappable |
| Concurrent Sessions (TCP) | 8 Million |
| New Sessions/Second (TCP) | 500,000 |
| USB Ports (Client / Server) | 1 / 2 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this FG-1101E, Fortinet FortiGate 1101E Firewall, 2x40GE QSFP+, 960GB SSD, SPU NP6/CP9 (FT:FG-1101E) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This FG-1101E, Fortinet FortiGate 1101E Firewall, 2x40GE QSFP+, 960GB SSD, SPU NP6/CP9 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the FG-1101E, Fortinet FortiGate 1101E Firewall, 2x40GE QSFP+, 960GB SSD, SPU NP6/CP9 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the FT:FG-1101E.
