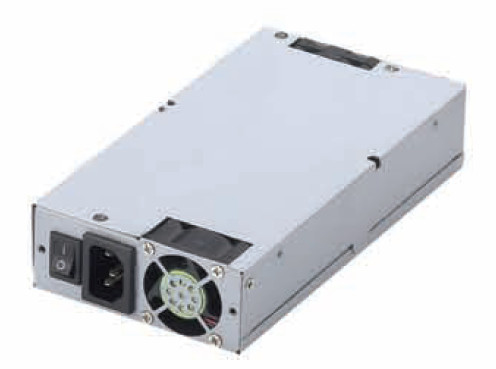

FSP FSP350-701UJ power supply unit 350 W 1U Grey
Brand: FSP · SKU: FSP350-701UJ · MPN: FSP350-701UJ · Category: Components
FSP FSP350-701UJ, 350 W, 230 V, 47 - 53 Hz, 6.3 A, 3 A, 0.5 W. FSP FSP350-701UJ power supply unit 350 W 1U Grey (part number FSP350-701UJ) is an enterprise power supplies product available from Server Tech Central. Key specifications include depth 190 mm, width 100 mm, height 40.5 mm, purpose Server, hold time 17 ms, efficiency 80%, total power 350 W, cabling type Non-Modular. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 190 mm |
|---|---|
| Width | 100 mm |
| Height | 40.5 mm |
| Purpose | Server |
| Hold time | 17 ms |
| Efficiency | 80% |
| Total power | 350 W |
| Cabling type | Non-Modular |
| Cooling type | Active |
| Fan location | Side |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Product colour | Grey |
| AC input voltage | 230 V |
| AC input frequency | 47 - 53 Hz |
| Combined power (-12V) | 0.5 W |
| Max output current (+5V) | 18 A |
| Storage temperature (T-T) | -20 - 80 °C |
| Max output current (+12V1) | 16 A |
| Max output current (+12V2) | 16 A |
| Max output current (+3.3V) | 16 A |
| Max output current (+5Vsb) | 3 A |
| Operating temperature (T-T) | 0 - 50 °C |
| Maximum input current (@110V) | 6.3 A |
| Warranty | 3-Year Warranty |
| Dimensions | 100 mm x 190 mm x 40.5 mm |
Product Description
FSP350-701UJ is an industrial level of switching power supply. The power supply comes to offer the total power capacity up to 350 Watts, and uses unique active PFC (Power Factor Correction) circuit design with its high-load electrical components, makes it to be perfectly used in an industrial environment. In addition, with its full range of input and output electrical features, the power supply is ideally the best choice for server, workstation, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide. - 80 Plus Bronze - Low Ripple & Noise - Output over voltage protection - Short circuit protection on all outputs - Resettable power shut down - Dual +12V output (+12V/1,+12V/2) - 5V is included - INTERNAL 4 cm fan - 100% burn-in under high ambient temperature(50℃) - Vacuum-impregnated transformer - MTBF:100K hours at 25℃ - 100% Hi-pot tested - Line input fuse protection
Key Features
FSP FSP350-701UJ. Total power: 350 W, AC input voltage: 230 V, AC input frequency: 47 - 53 Hz. Cabling type: Non-Modular. Purpose: Server, Power supply unit (PSU) form factor: 1U, Mean time between failures (MTBF): 100000 h. Product colour: Grey, Cooling type: Active, Number of fans: 1 fan(s). Width: 100 mm, Depth: 190 mm, Height: 40.5 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this FSP FSP350-701UJ power supply unit 350 W 1U Grey (FSP350-701UJ) is 100% genuine FSP hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This FSP FSP350-701UJ power supply unit 350 W 1U Grey includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the FSP FSP350-701UJ power supply unit 350 W 1U Grey compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the FSP350-701UJ.
