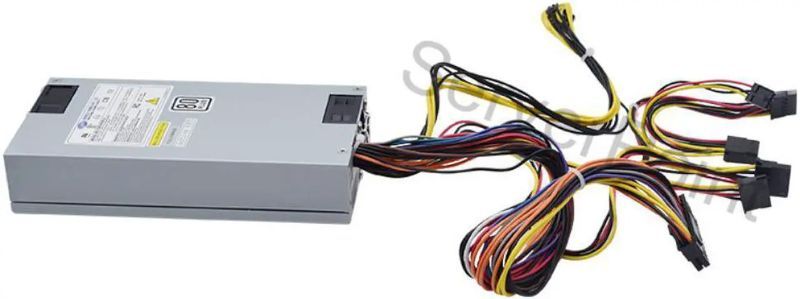

350W 1U Switching Power Supply
Brand: Sparkle Power Inc. / FSP Group · SKU: FSP350-601U · MPN: FSP350-601U · Category: Components
The FSP350-601U is a compact and efficient 350W power supply designed for 1U server chassis. It features a wide input voltage range of 90-264V AC and an input frequency of 47-63 Hz, ensuring reliable power delivery. The unit includes multiple power connectors such as a 24-pin ATX main connector, an 8-pin CPU connector, two SATA connectors, and two IDE connectors. It meets safety certifications including UL60950, CSA C22.2, TUV EN60950, and CE, and has an efficiency rating of at least 65% at nominal AC input and full load. It also features Active PFC circuit with Power factor correction (PFC)>0.95@100VAC, internal 12 VDC Ball Bearing fan, and protections like Output over voltage protection and Short circuit protection on all outputs. The dimensions are 40.5H x 100W x 220L (mm).
Specifications
| Fan | Internal 12 VDC (Ball Bearing) |
|---|---|
| PFC | Active PFC circuit (PFC > 0.95 @ 100VAC) |
| Connectors | 24-pin ATX main, 8-pin CPU, two SATA, two IDE |
| Efficiency | At least 65% at nominal AC input and full load |
| Form Factor | 1U Server Chassis |
| Power Output | 350 Watts |
| Input Voltage Range | 90-264V AC |
| Warranty | Varies by seller (Often sold refurbished with limited warranty) |
| Dimensions | 40.5H x 100W x 220L (mm) |
Key Features
A 350W, 1U form factor switching power supply with Active PFC, designed for server environments. It supports universal input voltage and includes necessary connectors for various server configurations. It is compliant with multiple safety standards and offers various protections.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this 350W 1U Switching Power Supply (FSP350-601U) is 100% genuine Sparkle Power Inc. / FSP Group hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This 350W 1U Switching Power Supply includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the 350W 1U Switching Power Supply compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the FSP350-601U.
