Brand: FSP (FSP Group) · SKU: FSP300-60BTV · MPN: FSP300-60BTV · Category: Components

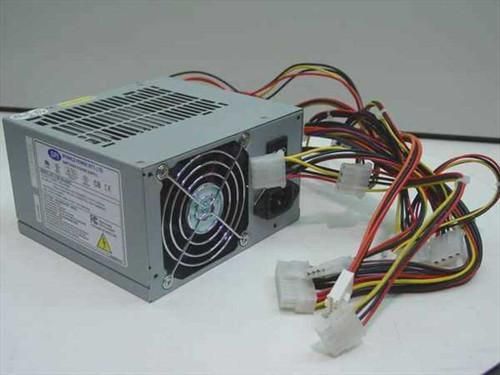

The FSP300-60BTV is a 300 Watt ATX 2.03 PC Power Supply designed for Intel P4 & AMD Athlon systems. It features remote ON/OFF control for ATX systems and a passive PFC (Power Factor Correction) circuit at 230 Vac operation. Key features include high efficiency, low ripple & noise, output overvoltage protection, and short circuit protection on all outputs. It comes with an internal 12 VDC fan and is 100% Hi-pot tested. The unit supports switch-select input voltage between 95 ~ 132 VAC and 180 ~ 264 VAC, operating from 47Hz to 63Hz. It has achieved approvals by UL 1950, CSA C22.2, TUV EN 60950, VDE 0805, NEMKO & CB Report. The MTBF is rated above 50,000 hours at +40°C.
| PFC | Passive PFC (at 230 Vac) |
|---|---|
| Control | Remote ON/OFF Control |
| Cooling | Internal 12 VDC fan |
| Protection | Output overvoltage protection, Short circuit protection on all outputs, Resettable power shut down |
| Form Factor | ATX 2.03 |
| Input Frequency | 47Hz to 63Hz |
| Total Power Output | 300W |
| Input Voltage Range | 95 ~ 132 VAC / 180 ~ 264 VAC (Switch-select) |
| Warranty | Data Not Found |
| Weight | Data Not Found |
| Dimensions | 86H x 150W x 140L (mm) |
A 300 Watt ATX 2.03 PC Power Supply featuring switch-selectable AC input range, passive PFC, and standard protection features suitable for Intel P4 and AMD Athlon systems.
