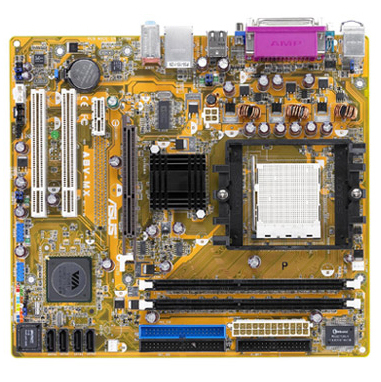

Fujitsu A8V-MX VIA K8M800 Socket 939 micro ATX
Brand: Fujitsu · SKU: FSP:140000589 · MPN: FSP:140000589 · Category: Components
Fujitsu A8V-MX, AMD, Socket 939, AMD Sempron, 2 GB, 0, 1, 0+1, JBOD, micro ATX. Fujitsu A8V-MX VIA K8M800 Socket 939 micro ATX (part number FSP:140000589) is an enterprise components product available from Server Tech Central. Key specifications include depth 218 mm, width 245 mm, audio chip Realtek ALC653, raid levels 0, 1, 0+1, JBOD, agp x8 slots 1, microphone in Yes, s/pdif in port Yes, cd/aux audio in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 218 mm |
|---|---|
| Width | 245 mm |
| Audio chip | Realtek ALC653 |
| RAID levels | 0, 1, 0+1, JBOD |
| AGP x8 slots | 1 |
| Microphone in | Yes |
| S/PDIF in port | Yes |
| CD/AUX audio in | Yes |
| Processor socket | Socket 939 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| COM ports quantity | 1 |
| USB 2.0 connectors | 2 |
| Motherboard chipset | VIA K8M800 |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| Serial ports quantity | 1 |
| Number of memory slots | 2 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 2 GB |
| Motherboard form factor | micro ATX |
| Warranty | 3-Year Warranty |
| Dimensions | 245 mm x 218 mm |
Product Description
64bit CPU support 64-bit computing, the next generation technology to replace current 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by supporting Supports AMD Socket 939 Athlon 64FX/Athlon 64 This motherboard supports AMD 939-pin Athlon 64 FX/ Athlon 64 processors with 1MB/512KB L2 cache which is based on 64-bit architecture. It features 1600 MT/s HyperTransport Bus, dual-channel un-buffered DDR400 memory support and AMD Cool 'n' Quiet! Technology. AMD Athlon™ 64 X2 Dual-Core processor This motherboard supports AMD 939-pin Athlon™ 64 X2 Dual-Core processor with 1MBx2 or 512KBx2 L2 cache which is based on 64-bit architecture. It features better multithreaded / multitasking performance than Athlon™ 64 FX / Athlon™ 64. AMD Cool 'n' Quiet! Technology The A8V-MX supports AMD Cool 'n' Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment. DDR400 DDR400 (PC3200), the latest and fastest DDR memory standard, supports bandwidth up to 3.2GB/s to provide enhanced system performance. Serial ATA RAID The onboard VT8251 southbridge provides the complete solution to your RAID requirements on different disk array standards, and supports RAID 0, 1, 0+1 and JBOD on 2 Serial ATA ports. S/PDIF-out on Back I/O Port The A8V-MX's S/PDIF out function turns your computer into a high-end entertainment system with digital connectivity to powerful speaker systems. 6 Channel Audio The A8V-MX uses an onboard Audio CODEC that lets you enjoy high-quality 6-channel audio without having to buy advanced sound cards. CrashFree BIOS 2 Whenever BIOS gets corrupted, ASUS CrashFree BIOS 2 allows users to reboot the computer and perform an smart auto-recovery procedure through the motherboard support CD. Integrated 10/100 LAN The on-board LAN controller is a highly integrated Fast Ethernet controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems. Max 8 USB 2.0 ports support USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast dat C.P.R.(CPU Parameter Recall) When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.
Key Features
Fujitsu A8V-MX. Processor manufacturer: AMD, Processor socket: Socket 939, Compatible processor series: AMD Sempron. Maximum internal memory: 2 GB. RAID levels: 0, 1, 0+1, JBOD. Motherboard form factor: micro ATX, Motherboard chipset: VIA K8M800, Audio chip: Realtek ALC653. Width: 245 mm, Depth: 218 mm
