Brand: NETGEAR · SKU: FS516 · MPN: FS516 · Category: Components

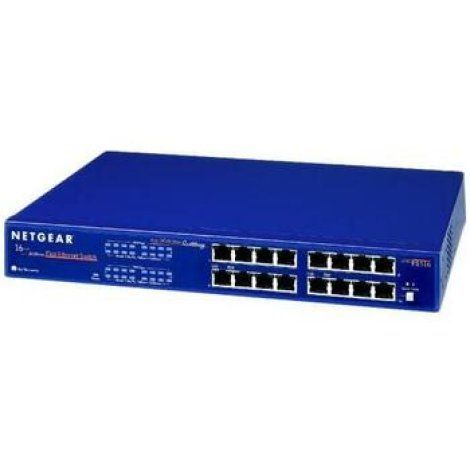

The NETGEAR FS516 16-Port Fast Ethernet Switch provides a low-cost, high-performance network solution designed to support workgroups operating at either 10 Mbps or 100 Mbps. It offers private, dedicated bandwidth to each connected device, significantly increasing network capacity compared to shared environments. The switch features 16 auto-sensing 10/100 Mbps Fast Ethernet ports with RJ-45 connectors. Each port supports automatic negotiation for full-duplex mode, doubling throughput when the connected device also supports it. If the connected device does not support negotiation, the port defaults to half-duplex. A manual override is available to force full-duplex operation. The switch supports up to 4,000 MAC addresses, allowing for networks with up to 4,000 devices. It is designed for flexibility, usable as a standalone device or integrated with other hubs and interconnection devices. The FS516 can be used as a desktop switch or mounted in a standard 19-inch rack. It supports unshield
| Port Speed | 10/100 Mbps Fast Ethernet |
|---|---|
| Throughput | 200 Mbps per port |
| Cabling Type | UTP Cat 5 |
| Duplex Modes | Half-duplex, Full-duplex |
| Input Voltage | 100–240 V AC |
| Auto MDI/MDI-X | Yes |
| Auto Uplink™ | Yes |
| LED Indicators | Power, Link/Activity, 100 Mbps |
| Number of Ports | 16 |
| Switching Method | Store-and-forward |
| Power Consumption | 42 W |
| Cable Length Limit | 100 meters (328 feet) |
| Operating Humidity | 90% max. relative humidity, noncondensing |
| Standards Compliance | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| MAC Address Table Size | 4000 entries |
| Connectivity Technology | Ethernet |
| Warranty | Switch: 5 years; Power supply: 1 year (for products purchased before 05/01/2007, warranty is 5 years). |
| Weight | 2.5 kg (5.5 lb) |
| Dimensions | W 330 mm (13”) D 202 mm (8”) H 43 mm (1.7”) |
The NETGEAR FS516 is a 16-port 10/100 Mbps Fast Ethernet unmanaged switch designed to enhance network performance for small to medium-sized businesses and home offices. It provides dedicated bandwidth to each connected device, supports auto-negotiation for speed and duplex modes, and offers features like Auto Uplink™ and Auto MDI/MDI-X for ease of use and installation. The switch is rack-mountable and built with a durable metal case.
Yes, this FS516 (FS516) is 100% genuine NETGEAR hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This FS516 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the FS516.
