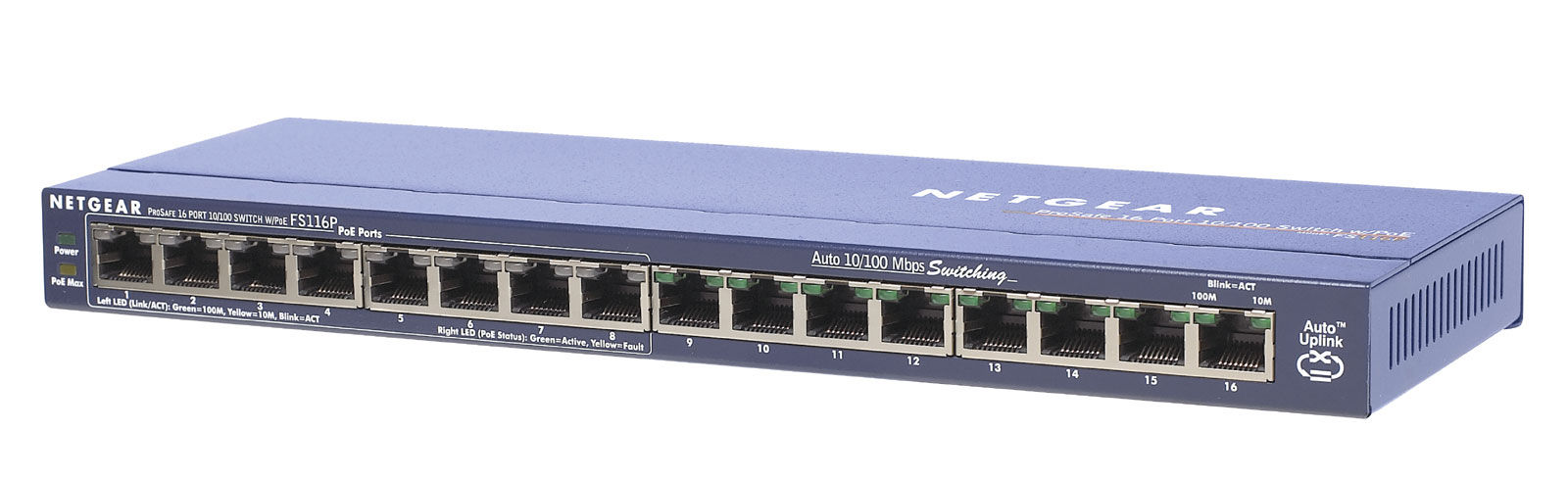

NETGEAR FS116PEU network switch Fast Ethernet (10/100) Power over Ethernet (PoE)
Brand: Netgear · SKU: FS116PEU · MPN: FS116PEU · Category: Networking
NETGEAR FS116PEU, Fast Ethernet (10/100), Power over Ethernet (PoE)
Specifications
| Depth | 102 mm |
|---|---|
| Width | 286 mm |
| Height | 27 mm |
| Safety | CE; CE/LVD EN60950 |
| Weight | 828 g |
| Latency | 20 µs for 64-byte frames |
| 10G support | No |
| MAC address table | 1000 entries |
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 287 x 103 x 27 mm |
| Power requirements | 48VDC, 4.5 power output |
| Switching capacity | 3.2 Gbit/s |
| Data link protocols | Ethernet, Fast Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Packet buffer memory | 0.096 MB |
| Electromagnetic emissions | CE mark, commercial, FCC Part 15 Class A, VCCI Class A, EN 55022 (CISPR 22) Class A, C-Tick |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | 10 - 70 °C |
| Maximum data transfer rate | 0.1 Gbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 80 W |
| Storage relative humidity (H-H) | 95 |
| Mean time between failures (MTBF) | 116009 h |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Warranty | 3-Year Warranty |
| Weight | 828 g |
| Dimensions | 287 x 103 x 27 mm |
Product Description
The ProSafe FS116P provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The sixteen Fast Ethernet ports can be used for any 10/100 Mbps link and eight of these ports can supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power only to 802.3af end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the ProSafe FS116P automatically determines PoE requirements, speed, duplex, and cable type using AutoUplink™. The affordably priced ProSafe FS116P delivers PoE to any small business network that wants to simplify the installation of wireless access points and IP-based surveillance cameras. These devices are optimally installed on a ceiling or high on a wall, away from most electrical outlets. PoE eliminates the requirement for a dedicated electrical outlet to power these devices. This allows for flexibility in situating devices where AC power is difficult to access and lowers installation costs. Compact and flexible, the ProSafe FS116P is ideal for small business network that want to inexpensively use PoE to deploy wireless access points and IP-based network surveillance cameras.
Key Features
NETGEAR FS116PEU. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 1000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this NETGEAR FS116PEU network switch Fast Ethernet (10/100) Power over Ethernet (PoE) (FS116PEU) is 100% genuine Netgear hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This NETGEAR FS116PEU network switch Fast Ethernet (10/100) Power over Ethernet (PoE) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the NETGEAR FS116PEU network switch Fast Ethernet (10/100) Power over Ethernet (PoE) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the FS116PEU.
