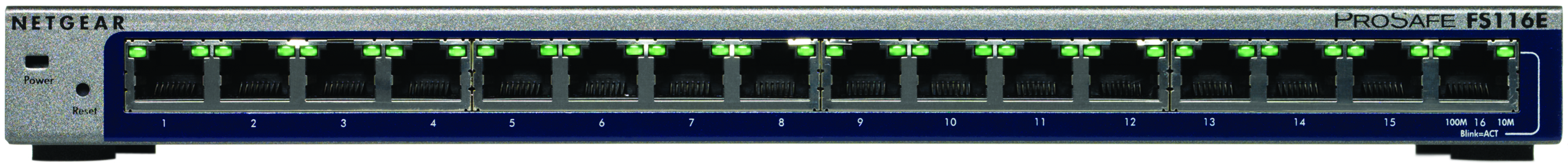

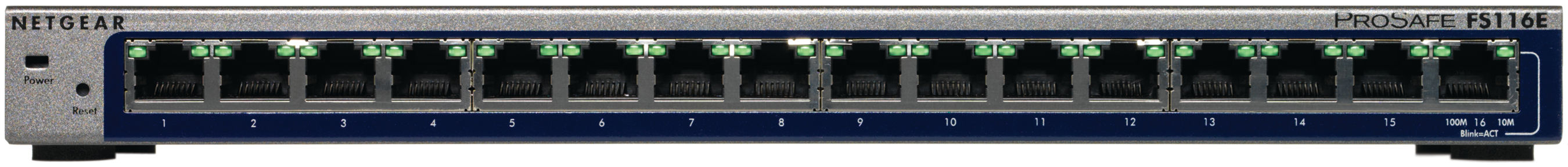

NETGEAR FS116E Managed
Brand: NETGEAR · SKU: FS116E-100NAS · MPN: FS116E-100NAS · Category: Components
Specifications
| Safety | CE/LVD EN 60950, CB |
|---|---|
| Weight | 810 g |
| Bandwidth | 3.2 Gbit/s |
| Stackable | No |
| 10G support | No |
| Full duplex | Yes |
| Switch type | Managed |
| Power source | 12V, 1.0A |
| Certification | CE, EN 55022 (CISPR 22) Class A, FCC Part 15 Class A, VCCI Class A, C-Tick |
| LED indicators | LAN, Power, Status |
| MAC address table | 4000 entries |
| Dimensions (WxDxH) | 27 x 287 x 103 mm |
| Networking features | Fast Ethernet |
| Flow control support | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Power over Ethernet (PoE) | No |
| Maximum data transfer rate | 0.1 Gbit/s |
| Operating temperature (T-T) | 0 - 50 °C |
| Power consumption (typical) | 5.46 W |
| Supported data transfer rates | 10/100 Mbps |
| Mean time between failures (MTBF) | 4046880 h |
| Operating relative humidity (H-H) | 10 - 90% |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Warranty | 3-Year Warranty |
| Weight | 810 g |
Product Description
More Capabilities beyond Plug-and-play connectivity Today's growing businesses are both placing more demands on and relying more on their network. Companies are putting more applications and demands on their Ethernet Infrastructure. Using VoIP phones and IP cameras require more than simple plug-and-play connectivity. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced training to deal with complex managed switches. NETGEAR's new ProSafe Plus Switches meet this growing need by providing easy to use visibility and limited configuration capabilities. To provide more insight into the network behavior, ProSafe Plus Switches offer traffic monitoring for users to observe traffic behavior. Additionally, if there are connectivity issues, these switches offer a cable diagnostic test capability that can identify and even locate problems in the cables. To optimize traffic through the switches, ProSafe Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, as a means of improving security or managing collision domains, ProSafe Smart Switches offer VLAN technology. ProSafe Plus Switches offering these monitoring and configuration capabilities at a slight cost premium over unmanaged switches, delivering great value to the end user. Additionally, furthering NETGEAR's support of the environment, ProSafe Plus Switches have power-saving Green Ethernet technology. The FS116E is the first 16-port Fast Ethernet on the market with such Green Ethernet features. The switch comes in a sturdy metal case with a fan-less design for silent operation. p> Features - Use as a Plug-and-Play switch or use the configuration utility for simple setup - 16 ports deliver up to 200 Mbps bi-directional bandwidth on each port - Quality of Service (QoS) for prioritizing network traffic - Virtual LAN (VLAN) support for network segmentation and security - Troubleshoot connection problem via cable test - Bandwidth management to avoid network congestions - Network traffic monitoring - Port mirroring - Broadcast storm control NETGEAR Green - Up to 60% lower power consumption than the previous model1 - Auto power-down mode conserves energy when a port is not connected - Less transmit power when the cable is short (under 10 m) - Packaging manufactured with at least 80% recycled material
Key Features
NETGEAR FS116E. Switch type: Managed. Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 4000 entries. Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Frequently Asked Questions
Is this product genuine OEM?
Yes, this NETGEAR FS116E Managed (FS116E-100NAS) is 100% genuine NETGEAR hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This NETGEAR FS116E Managed includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the NETGEAR FS116E Managed compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the FS116E-100NAS.
