FG-301E, Fortinet NGFW, 18 x GE RJ45, 16 x GE SFP, SPU NP6 & CP9
SKU: FG-301E · MPN: FG-301E · Category: Networking

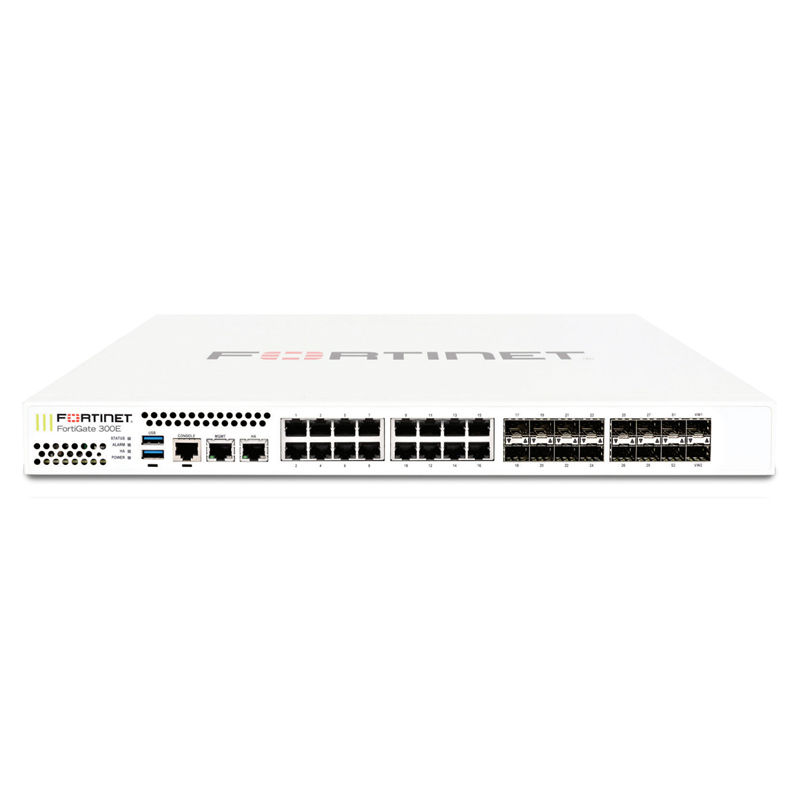

Fortinet FG-301E, 18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 16 x GE SFP slots, SPU NP6 and CP9 hardware accelerated, 2x 240GB onboard SSD storage.
Specifications
| Type | FORTIGATE 301E |
|---|---|
| Humidity | 10–90% non-condensing |
| USB Ports | 2 |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Form Factor | 1 RU |
| Noise Level | 48 dBA |
| GE SFP Slots | 16 |
| Product Type | FORTIGATE 301E |
| Local Storage | 2x 240 GB SSD |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
| IPS Throughput | 5 Gbps |
| AC Power Supply | 100–240V AC, 60–50 Hz |
| NGFW Throughput | 3.5 Gbps |
| Heat Dissipation | 570 BTU/h |
| Current (Maximum) | 6A |
| Firewall Policies | 10,000 |
| RJ45 Console Port | 1 |
| GE RJ45 Interfaces | 16 |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| SSL-VPN Throughput | 2.5Gbps |
| Storage Temperature | -31–158°F (-35–70°C) |
| Included Transceivers | 2x SFP (SX 1 GE) |
| Operating Temperature | 32–104°F (0–40°C) |
| Height x Width x Length | 1.75 x 17.0 x 15.0 inches 44.45 x 432 x 380 mm |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this FG-301E, Fortinet NGFW, 18 x GE RJ45, 16 x GE SFP, SPU NP6 & CP9 (FG-301E) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This FG-301E, Fortinet NGFW, 18 x GE RJ45, 16 x GE SFP, SPU NP6 & CP9 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the FG-301E, Fortinet NGFW, 18 x GE RJ45, 16 x GE SFP, SPU NP6 & CP9 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the FG-301E.
