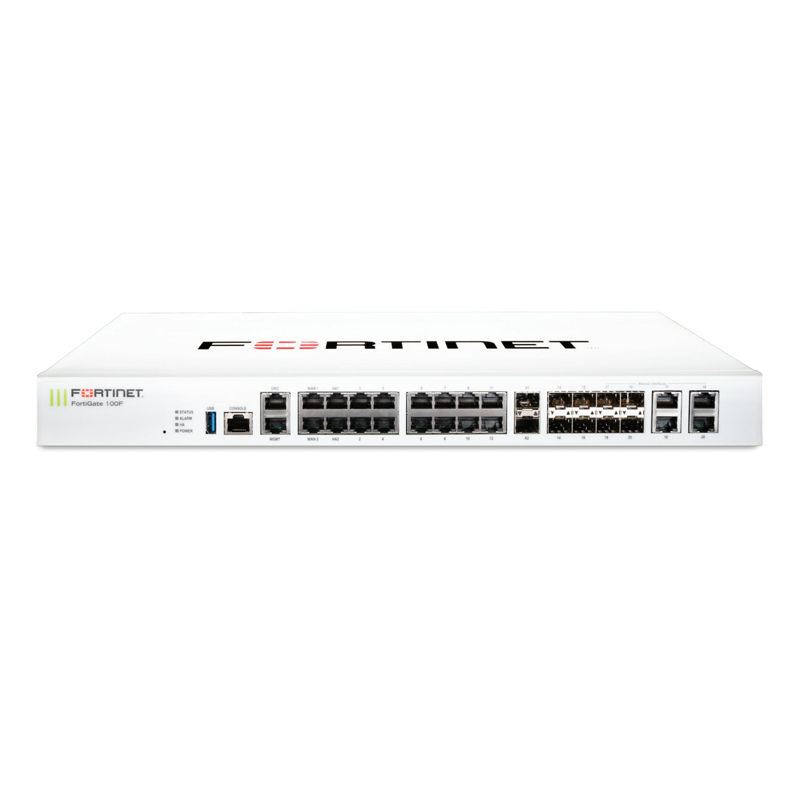

FG-100F, Fortinet Fortigate 100F Firewall, 22x GE RJ45/4x SFP/2x 10GE SFP+
SKU: FG-100F · MPN: FG-100F · Category: Networking
The Fortigate 100F blends 22 versatile GE RJ45 ports, including WAN, DMZ, management, HA, and switch ports, with 4 SFP ports and 2 high-speed 10 GE SFP+ FortiLinks, featuring dual power supplies and managing up to 64 FortiAPs, license required.
Specifications
| Weight | 7.25 lbs (3.29 kg) |
|---|---|
| Humidity | 10 – 90% non-condensing |
| USB Port | 1 |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Noise Level | 40.4 dBA |
| Console Port | 1 |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 |
| Forced Airflow | Side to Back |
| AC Power Supply | 100 – 240V AC, 50/60 Hz |
| Onboard Storage | 0 |
| Heat Dissipation | 119.77 BTU/h |
| IPS Throughput 2 | 2.6 Gbps |
| Current (Maximum) | 100V / 1A, 240V / 0.5A |
| Firewall Policies | 10,000 |
| GE RJ45 WAN Ports | 2 |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| SSL-VPN Throughput | 1 Gbps |
| Storage Temperature | -31 – 158 ° F (-35 – 70 ° C) |
| NGFW Throughput 2, 4 | 1.6 Gbps |
| Included Transceivers | 0 |
| Operating Temperature | 32 – 104 ° F (0 – 40 ° C) |
| Redundant Power Supplies | Yes |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 56,000 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this FG-100F, Fortinet Fortigate 100F Firewall, 22x GE RJ45/4x SFP/2x 10GE SFP+ (FG-100F) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This FG-100F, Fortinet Fortigate 100F Firewall, 22x GE RJ45/4x SFP/2x 10GE SFP+ includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the FG-100F, Fortinet Fortigate 100F Firewall, 22x GE RJ45/4x SFP/2x 10GE SFP+ compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the FG-100F.
