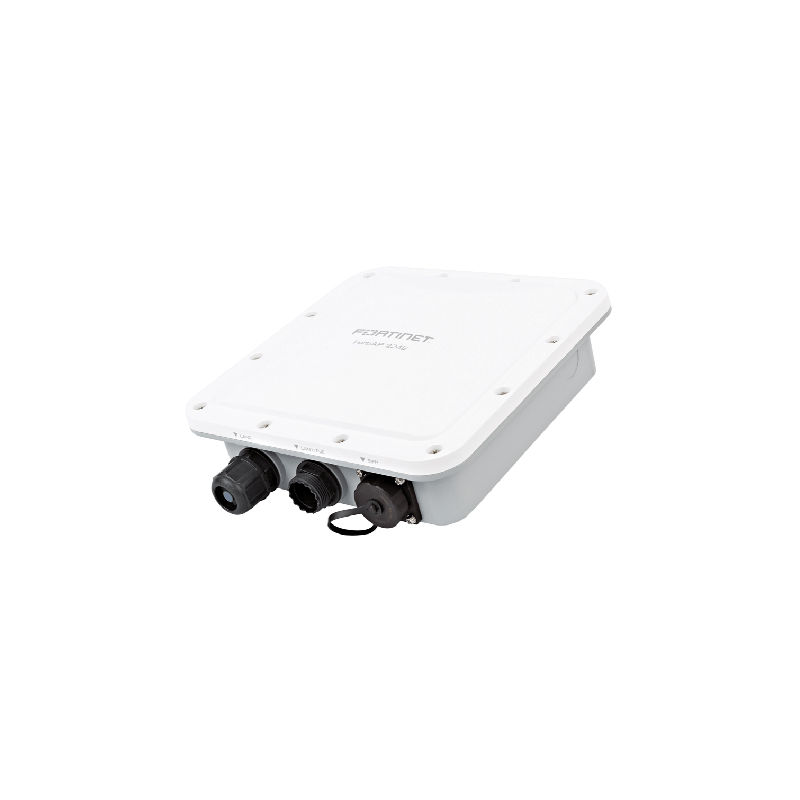

FAP-224E, Fortinet FAP-224E, Outdoor Wireless AP, Dual radio, Internal antenna, 1x GE RJ45
SKU: FAP-224E · MPN: FAP-224E · Category: Networking
Fortinet FAP-224E, Outdoor wireless AP: Dual radio, internal antenna, 1 x GE RJ45 port, 1x SFP port
Specifications
| Depth | 8.4 in |
|---|---|
| Width | 8.4 in |
| Height | 2.7 in |
| Antenna | Internal |
| Capacity | Maximum number of configured SSIDs: 16 ¦ Wireless clients per Wi-Fi radio: 512 |
| Features | Mesh networking, WPA2 encryption, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Maximum Likelihood Demodulation (MLD), Captive Portal, WPA encryption, packet aggregation A-MPDU, packet aggregation A-MSDU, T-Rail mountable, 2x2 MU-MIMO technology, FortiPresence support |
| Interfaces | 1 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x - SFP (mini-GBIC) ¦ 1 x console |
| Antenna Qty | 4 |
| Device Type | Wireless access point |
| Form Factor | Wall / ceiling mountable |
| Performance | Maximum throughput (2.4 GHz): 400 Mbps ¦ Maximum throughput (5 GHz): 867 Mbps |
| Frequency Band | 2.4 GHz, 5 GHz |
| Ruggedized Design | Outdoor, indoor |
| Service & Support | Limited warranty - lifetime |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Data Transfer Rate | 867 Mbps |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.11j, IEEE 802.3az, IEEE 802.11ac Wave 2 |
| Encryption Algorithm | TLS, PEAP, TTLS, WPA, WPA2, WEP |
| Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA |
| Connectivity Technology | Wireless |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 149 °F |
| Min Operating Temperature | -4 °F |
| Power Consumption Operational | 14.33 Watt |
| Warranty | 3-Year Warranty |
