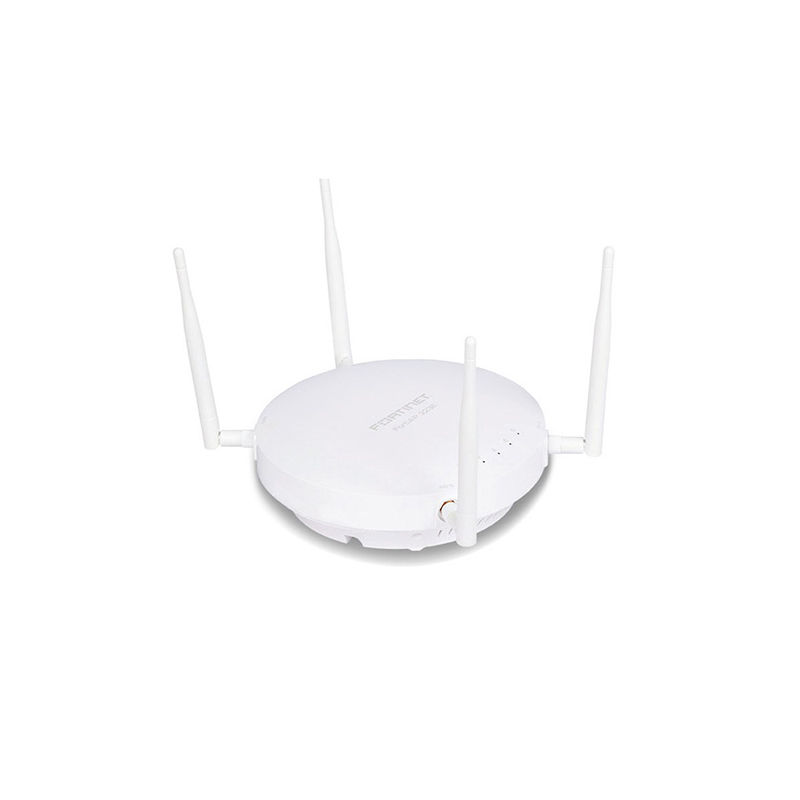

FAP-223E, Fortinet FAP-223E Indoor Wireless Access Point, Dual radio, External antenna, 1 x GE RJ45 port
SKU: FAP-223E · MPN: FAP-223E · Category: Networking
Fortinet FAP-223E Indoor wireless AP: Dual radio, External antenna, 1 x GE RJ45 port
Specifications
| DFS | FCC, IC, CE, Japan, Taiwan, Korea |
|---|---|
| Weight | 1.1 lbs (0.5 kg) |
| Humidity | 5–90% non-condensing |
| IP Rating | — |
| Directives | Low Voltage Directive • RoHS |
| Interfaces | 1x 10/100/1000 Base-T RJ45 |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| Power Supply | SP-FAP200-PA-XX, GPI-115, or GPI-130 |
| Hardware Type | Indoor AP |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3az |
| Kensington Lock | Yes |
| LED Off Mode Yes | Yes |
| Maximum Tx Power | 2.4 GHz: 23 dBm / 200 mW (2 chains combined)** 5 GHz: 24 dBm / 251 mW (2 chains combined)** |
| Mounting Options | Ceiling, T-Rail and Wall |
| Number of Radios | 2 + 1 BLE |
| Rogue Scan Radio | Background, Full-time |
| Maximum Data Rate | Radio 1: up to 400 Mbps Radio 2: up to 867 Mbps |
| Number of Antennas | 4 Internal + 1 Internal BLE |
| Simultaneous SSIDs | 16 (14 if background scanning enabled) |
| Spectrum Analyze r | Yes Yes |
| Packet Sniffer Mode | Yes |
| Included Accessories | Mount kits for Ceiling, T-Rail, and Wall, 4 dipole antennas |
| Radio 1 Capabilities | 2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (256 QAM) |
| Radio 2 Capabilities | 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this FAP-223E, Fortinet FAP-223E Indoor Wireless Access Point, Dual radio, External antenna, 1 x GE RJ45 port (FAP-223E) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This FAP-223E, Fortinet FAP-223E Indoor Wireless Access Point, Dual radio, External antenna, 1 x GE RJ45 port includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the FAP-223E, Fortinet FAP-223E Indoor Wireless Access Point, Dual radio, External antenna, 1 x GE RJ45 port compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the FAP-223E.
