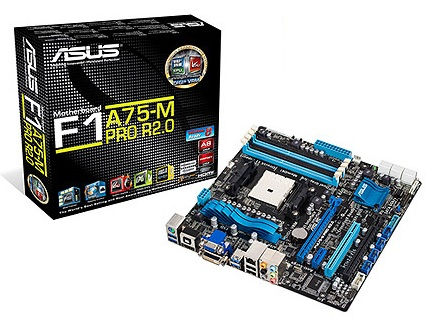

ASUS F1A75-M PRO R2.0 motherboard AMD A75 FCH Socket FM1 micro ATX
Brand: ASUS · SKU: F1A75-M PRO R2.0 · MPN: F1A75-M PRO R2.0 · Category: Components
ASUS F1A75-M PRO R2.0, AMD, Socket FM1, AMD A, AMD E, DDR3-SDRAM, DIMM, Dual-channel. ASUS F1A75-M PRO R2.0 motherboard AMD A75 FCH Socket FM1 micro ATX (part number F1A75-M PRO R2.0) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 244 mm, bios type AMI, pci slots 1, audio chip Realtek ALC892, raid levels 0, 1, 10, JBOD, acpi version 2.0a, ethernet lan Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AMI |
| PCI slots | 1 |
| Audio chip | Realtek ALC892 |
| RAID levels | 0, 1, 10, JBOD |
| ACPI version | 2.0a |
| Ethernet LAN | Yes |
| Component for | PC |
| Graphics card | Radeon HD 6000 |
| Microphone in | Yes |
| Internal memory | 64 GB |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Processor socket | Socket FM1 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 10 |
| HDMI ports quantity | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 244 mm |
Product Description
ASUS has released new hardware and software designs to shorten system boot-up time to 2-seconds for a smoother user experience that removes annoying delays under Windows 8, and even previous versions of Windows. Faster system boot and restart means Windows starts quicker and higher efficiency - No more waiting around. Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PCs startup process. You can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on. This motherboard supports AMD® A-& E2- series Accelerated Processor with AMD Radeon™ HD 6000 Series Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features Dual-channel DDR3 memory support and accelerates data transfer rate up to 5GT/s. AMD® A75 FCH (Hudson D3) is designed to support up to 5GT/s interface speed and PCI Express™ 2.0 x 16(at x4 speed)graphics. It supports 6 x SATA6Gb/s ports and 4 x USB 3.0 Ports. Flexible Multi-GPU solutions, Your Weapon of Choice! F1A75-M PRO R2.0 brings you the multi-GPU choice of CrossFireX™. Expect a brand-new gaming style you’ve never experienced before! The world’s first Dual Intelligent Processors from ASUS pioneered the use of two onboard chips - EPU (Energy Processing Unit) and TPU (TurboV Processing Unit). New generation Dual Intelligent Processors 2 with DIGI+ VRM digital power design launch control into a new era. The digital architecture delivers twice the precision power, intelligently adjusting PWM voltage and frequency modulation with minimal power loss through BIOS tuning and an exclusive user interface to increase the board’s overclocking range while performance reaches its full potential. It also adjusts VRM frequencies dynamically, cutting radiation interference by half and decreasing Vcore power noise for CPU to enhance system stability through enabling VRM spread spectrum. ASUS DIGI+ VRM digital power design empowers users with superior flexibility and perfect precision to ensure optimized performance, extreme system stability and greater power efficiency. VRM, or voltage regulator modules, are considered among the most essential motherboard design components. They supply the voltage demanded by the CPU, and a good VRM must intelligently detect actual CPU power draw to provide precise power accordingly. ASUS DIGI+ VRM is an innovative. ASUS DIGI+ VRM design features a digital programmable microprocessor onboard and upgrades motherboard power delivery to a digital standard. The 6+2 digital architecture delivers twice the precision power, intelligently adjusting PWM voltage and frequency modulation with minimal power loss through BIOS tuning and exclusive user interface to increase over-clocking range while performance reaches its full potential. It also adjusts frequencies dynamically, cutting radiation interference by half to enhance system stability through enabling spread spectrum. The DIGI+ VRM digital power design empowers users with superior flexibility and perfect precision to ensure optimized performance, extreme system stability, and greater power efficiency. Unleash your performance with ASUS' simple onboard switch or AI Suite II utility. The TPU chip offers precise voltage control and advanced monitoring through Auto Tuning and TurboV functions. Auto Tuning offers a user friendly way to automatically optimize the system for fast, yet stable clock speeds, while TurboV enables unlimited freedom to adjust CPU frequencies and ratios for optimized performance in diverse situations. Tap into the world's first real-time PC power saving chip through a simple onboard switch or AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity! Feel the adrenaline rush of real-time OC-now a reality with the ASUS TurboV. This easy OC tool allows you to overclock without exiting or rebooting the OS; and its user-friendly interface makes overclock with just a few clicks away. Moreover, the ASUS OC profiles in TurboV provides the best O.C. settings in different scenarios. Auto Tuning is an intelligent tool that automates overclocking to achieve a total system level up. This tool also provides stability testing. Even O.C. beginners can achieve extreme yet stable overclocking results with Auto Tuning! ASUS facilitates strategic USB 3.0 accessibility for both the front and rear panel - 4 USB 3.0 ports in total. Experience the latest plug & play connectivity at speeds up to 10 ti
Key Features
ASUS F1A75-M PRO R2.0. Processor manufacturer: AMD, Processor socket: Socket FM1, Compatible processor series: AMD A, AMD E. Supported memory types: DDR3-SDRAM, Memory slots type: DIMM, Memory channels: Dual-channel. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 10, JBOD. Parallel processing technology support: 2-Way CrossFireX, Graphics card: Radeon HD 6000. Ethernet interface type: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS F1A75-M PRO R2.0 motherboard AMD A75 FCH Socket FM1 micro ATX (F1A75-M PRO R2.0) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS F1A75-M PRO R2.0 motherboard AMD A75 FCH Socket FM1 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS F1A75-M PRO R2.0 motherboard AMD A75 FCH Socket FM1 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the F1A75-M PRO R2.0.
