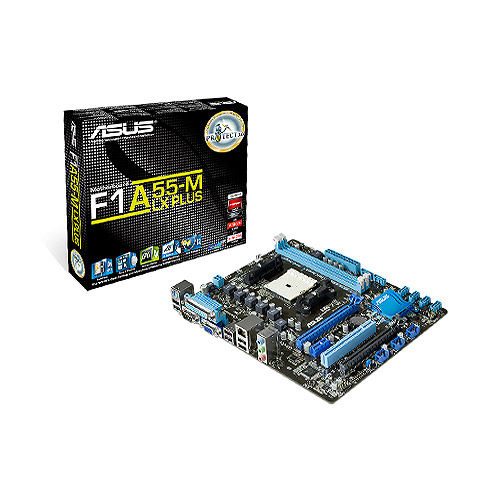

ASUS F1A55-M LX PLUS motherboard AMD A55 Socket FM1 micro ATX
Brand: ASUS · SKU: F1A55-M LX PLUS · MPN: F1A55-M LX PLUS · Category: Components
ASUS F1A55-M LX PLUS, AMD, Socket FM1, AMD A, AMD E2, 32 GB, Dual-channel, 1066,1333,1600,1866 MHz. ASUS F1A55-M LX PLUS motherboard AMD A55 Socket FM1 micro ATX (part number F1A55-M LX PLUS) is an enterprise components product available from Server Tech Central. Key specifications include depth 213 mm, width 244 mm, cnr slot No, bios type UEFI, bluetooth No, pci slots 1, audio chip Realtek ALC887, raid levels 0, 1, 10, JBOD. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 213 mm |
|---|---|
| Width | 244 mm |
| CNR slot | No |
| BIOS type | UEFI |
| Bluetooth | No |
| PCI slots | 1 |
| Audio chip | Realtek ALC887 |
| RAID levels | 0, 1, 10, JBOD |
| ACPI version | 2.0a |
| Component for | PC |
| Graphics card | Radeon HD 6000 |
| Microphone in | Yes |
| TPM connector | No |
| LAN controller | Realtek RTL8111E |
| Internal memory | 0 GB |
| Memory channels | Dual-channel |
| BIOS memory size | 32 Mbit |
| Drivers included | Yes |
| Processor socket | Socket FM1 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| GAME/MIDI connector | No |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 213 mm |
Product Description
AMD® A-& E2- series Accelerated Processor with AMD Radeon™ HD 6000 Series Graphics This motherboard supports AMD® A-& E2- series Accelerated Processor with AMD Radeon™ HD 6000 Series Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features Dual-channel DDR3 memory support and accelerates data transfer rate up to 5GT/s. AMD® A55 FCH (Hudson D2) AMD® A55 FCH (Hudson D2) is designed to support up to 5GT/s interface speed and PCI Express™ 2.0 x 16(at x4 speed)graphics. Flexible Multi-GPU solutions, Your Weapon of Choice! F1A55-M LX PLUS brings you the multi-GPU choice of CrossFireX™. Expect a brand-new gaming style you’ve never experienced before! Flexible & Easy BIOS Interface Exclusive to ASUS motherboards, its UEFI (Unified Extensible Firmware Interface) is the first ever mouse-controlled graphical BIOS interface designed with dual selectable modes. It delivers a user-friendly interface that goes beyond traditional keyboard-only BIOS controls to enable more flexible and convenient input with quick scrolling. Users can easily navigate the UEFI BIOS with the smoothness of their operating system. Quick and simple overclocking and setup sharing is facilitated by the F12 hotkey BIOS snapshot feature. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system control, including detailed DRAM information. Supports Hard Drives over 2.2TB ASUS UEFI BIOS natively supports hard drives larger than 2.2TB in 64-bit, with full storage space utilization helping deliver far more exciting computing than traditional BIOS versions. Exclusive ASUS Interface EZ Mode - gives easy access to selectable, optimized system modes, clear system info display and drag and drop boot prioritizing Advanced Mode - for experienced performance enthusiasts that demand intricate system settings ASUS Anti-Surge Protection Anti-Surge Protection Design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect the system. 1. Real-time over voltage detection. 2. Active protection against potential damage to your motherboards and systems. 100% All High-quality Conductive Polymer Capacitors This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity. Energy Efficiency All Around Tap into the world's first real-time PC power saving chip through a simple onboard switch or AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity! One-stop Access to Innovative ASUS Features With its user-friendly interface, ASUS AI Suite II consolidates all exclusive ASUS features into one simple-to-use package. It allows users to supervise overclocking, energy management, fan speed, voltage, and sensor readings. This all-in-one software offers diverse and easy to use functions, with no need to switch back and forth between different utilities. EZ-Flash 2 Simply update BIOS from a USB flash disk before entering the OS EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility FAN Xpert ASUS Fan Xpert intelligently allows you to adjust the CPU and chassis fan speeds according to different ambient temperatures caused by different climate conditions in different geographic regions and your PC’s loading. The built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment. C.P.R.(CPU Parameter Recall) The BIOS C.P.R. feature automatically restores the CPU default settings when the system hangs due to overclocking failure. C.P.R. eliminates the need to open the system chassis and clear the RTC data. Simply shut down and reboot the system, and the BIOS automatically restores the CPU parameters to their default settings. Simply restore corrupted BIOS data from USB flash disk The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip. Green ASUS and ErP Ready The motherboard is European Union’s Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to redu
Key Features
ASUS F1A55-M LX PLUS. Processor manufacturer: AMD, Processor socket: Socket FM1, Compatible processor series: AMD A, AMD E2. Maximum internal memory: 32 GB, Memory channels: Dual-channel, Supported memory clock speeds: 1066,1333,1600,1866 MHz. RAID levels: 0, 1, 10, JBOD. Graphics card family: AMD, Graphics card: Radeon HD 6000. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111E
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS F1A55-M LX PLUS motherboard AMD A55 Socket FM1 micro ATX (F1A55-M LX PLUS) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS F1A55-M LX PLUS motherboard AMD A55 Socket FM1 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS F1A55-M LX PLUS motherboard AMD A55 Socket FM1 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the F1A55-M LX PLUS.
