Brand: Juniper Networks · SKU: EX2300-48P · MPN: EX2300-48P · Category: Networking

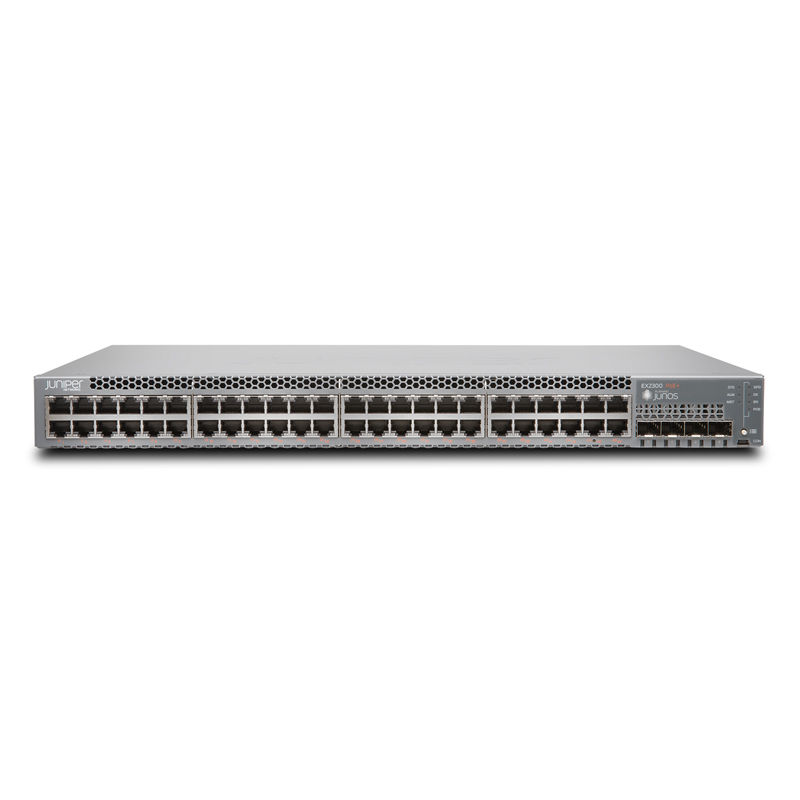

The Juniper Networks EX2300-48P is a high-performance, compact, and cost-effective 1U Ethernet switch designed for converged network access in branch offices, retail environments, and enterprise campus networks. It features 48 10/100/1000BASE-T ports with full PoE+ support (802.3at) and a 740W power budget, alongside four fixed 1/10GbE SFP/SFP+ uplink ports. Built on the field-proven Junos OS, the EX2300-48P supports Virtual Chassis technology, allowing up to four switches to be interconnected and managed as a single logical device. It provides wire-rate performance with a switching capacity of 176 Gbps and a forwarding rate of 130 Mpps, making it an ideal entry-level solution for modern access layer deployments.
| CPU | 1.25 GHz ARM |
|---|---|
| DRAM | 2 GB |
| Flash | 2 GB |
| Max VLANs | 4093 |
| Port Count | 48 x 10/100/1000BASE-T |
| Jumbo Frames | 9216 bytes |
| PoE Standard | IEEE 802.3at (PoE+) / 802.3af (PoE) |
| Uplink Ports | 4 x 1/10GbE SFP/SFP+ |
| Forwarding Rate | 130 Mpps |
| Operating System | Junos OS |
| PoE Power Budget | 740 Watts |
| MAC Address Table | 16,000 entries |
| Switching Capacity | 176 Gbps |
| Warranty | Enhanced Limited Lifetime Warranty (includes next-business-day hardware replacement) |
| Weight | 11.07 lb (5.02 kg) |
| Dimensions | 1.75 x 17.4 x 12.2 in (4.45 x 44.19 x 30.98 cm) |
The EX2300-48P offers an economical standalone solution for access-layer deployments. Key features include Virtual Chassis support for simplified management, high PoE+ density for powering Wi-Fi 6 APs and IP cameras, and carrier-class reliability derived from Juniper's high-end routers. It is hardware-ready for Junos Fusion Enterprise, enabling large-scale management from a single interface.
