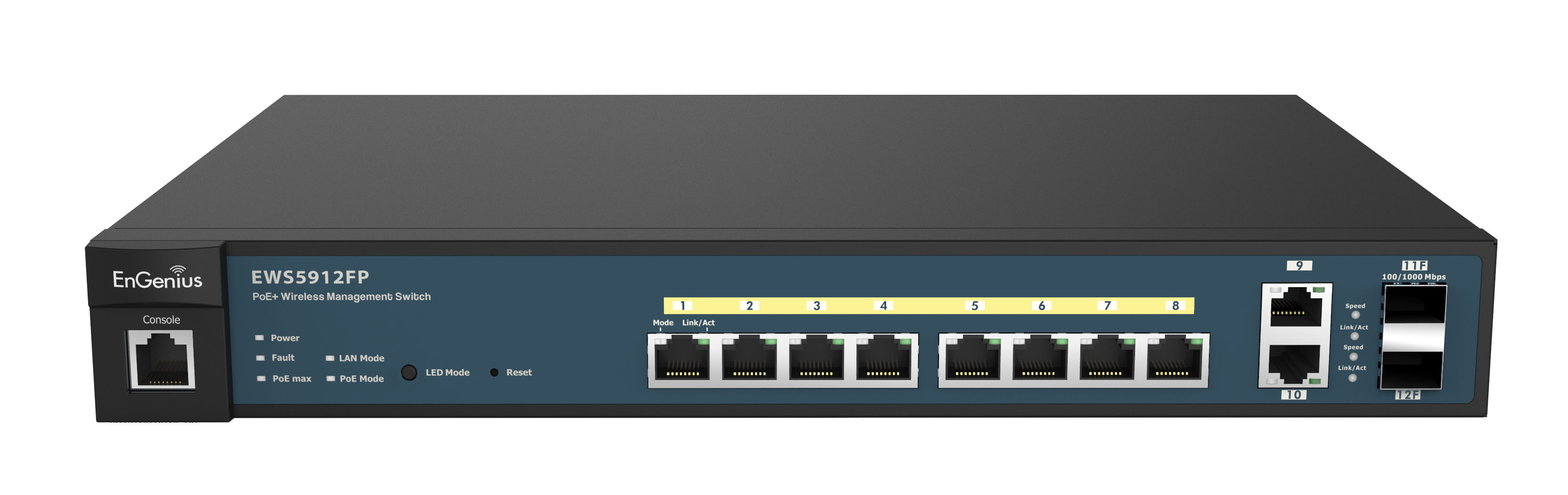

EnGenius EWS5912FP Wireless Managed L2 switch 8-port GbE PoE+ Switch 2 x GbE 2 x SFP 130W manage up to 50 x AP
Brand: Engenius · SKU: EWS5912FP Wireless Managed L2 switch 8-port GbE PoE+ Switch 2 x GbE 2 x SFP 130W manage up to 50 x AP · MPN: EWS5912FP Wireless Managed L2 switch 8-port GbE PoE+ Switch 2 x GbE 2 x SFP 130W manage up to 50 x AP · Category: Networking
EnGenius EWS5912FP Wireless Managed L2 switch 8-port GbE PoE+ Switch 2 x GbE 2 x SFP 130W manage up to 50 x AP, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), 1U. EnGenius EWS5912FP Wireless Managed L2 switch 8-port GbE PoE+ Switch 2 x GbE 2 x SFP 130W manage up to 50 x AP (part number EWS5912FP Wireless Managed L2 switch 8-port GbE PoE+ Switch 2 x GbE 2 x SFP 130W manage up to 50 x AP) is an enterprise transceivers & optics product available from Server Tech Central. Key specifications include depth 228.6 mm, width 330.2 mm, height 43.9 mm, manual Yes, weight 2 kg, stackable No, 10g support No, form factor 1U. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 228.6 mm |
|---|---|
| Width | 330.2 mm |
| Height | 43.9 mm |
| Manual | Yes |
| Weight | 2 kg |
| Stackable | No |
| 10G support | No |
| Form factor | 1U |
| MIB support | RFC1213, RFC1493, RFC1757, RFC2674 |
| Switch type | Managed |
| Console port | RJ-45 |
| Flash memory | 32 MB |
| Switch layer | L2 |
| VLAN support | Yes |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Rack mounting | No |
| Rate limiting | Yes |
| LED indicators | Activity, LAN, Link, PoE, Power, Yes |
| Port mirroring | Yes |
| Product colour | Black |
| Cables included | AC, LAN (RJ-45) |
| Internal memory | 256 MB |
| SSH/SSL support | Yes |
| Warranty | 3-Year Warranty |
| Weight | 2 kg |
| Dimensions | 330.2 mm x 228.6 mm x 43.9 mm |
Product Description
Power, connect, and manage Neutron Series Access Points throughout your company The EWS5912FP is a Neutron Series Managed Wireless solution 8-Port Gigabit PoE+ Layer 2 Switch with 2 Gigabit uplink ports and 2 Dual-Speed SFP ports for fiber uplinks. As part of an EnGenius Neutron Series wireless management solution, the EWS5912FP can control up to 20 Neutron Series Wireless Access Points to provide a single location with which to centrally configure and manage the entire network. The EWS5912FP is a Neutron Series Managed Wireless solution 8-Port Gigabit PoE+ Layer 2 Switch with 2 Gigabit uplink ports and 2 Dual-Speed SFP ports for fiber uplinks. As part of an EnGenius Neutron Series wireless management solution, the EWS5912FP through its browser-based GUI (Graphical User Interface) can discover, configure, manage and monitor up to 20 Neutron Series Wireless Access Points. The controller mode of the Switch provides a suite of wireless management features for IT managers to configure Neutron Series Access Points. Features include clustering Neutron Series Access Points in clusters with identical policies, Access Point IP Auto-Discovery, remote Access Point rebooting for hard-to-reach / previously deployed units, and a host of visual monitoring features including topology and floor plan view modes for the mapping out and tracking of networks. The controller also features a statistics section for record traffic tracking and comparison between units or over-time comparisons. The interface also lets IT managers apply configuration changes to multiple Access Points or the entire network simultaneously. A dashboard provides instant access to a variety of clients, network information, and events, while a real time map displays Access Point locations and network topology for planning and deployment. Managing the wired portion of the network is also easy using the same browser-based interface. The Switch supports IEEE 802.1p QoS which automatically classifies and prioritizes compliant device traffic to ensure that time sensitive data such as VoIP is forwarded without delay. The Switch’s Gigabit Ethernet ports support IEEE 802.3at/af PoE and can supply up to 30 watts per port for a total PoE budget of 130 watts. The 8 Gigabit ports provide seamless connectivity for devices and applications that require high speed network access and reduce bottlenecks that can interrupt communication. The Switch’s two SFP slots accept fiber transceivers for extending the wired network beyond the limitation of Ethernet cabling. This is especially useful for schools with satellite classrooms, or for hotels and resorts, or other businesses with multiple building properties. The EWS5912FP includes bracketing hardware for mounting into a switch rack.
Key Features
EnGenius EWS5912FP Wireless Managed L2 switch 8-port GbE PoE+ Switch 2 x GbE 2 x SFP 130W manage up to 50 x AP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1ab, IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Form factor: 1U
Frequently Asked Questions
Is this product genuine OEM?
Yes, this EnGenius EWS5912FP Wireless Managed L2 switch 8-port GbE PoE+ Switch 2 x GbE 2 x SFP 130W manage up to 50 x AP (EWS5912FP Wireless Managed L2 switch 8-port GbE PoE+ Switch 2 x GbE 2 x SFP 130W manage up to 50 x AP) is 100% genuine Engenius hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This EnGenius EWS5912FP Wireless Managed L2 switch 8-port GbE PoE+ Switch 2 x GbE 2 x SFP 130W manage up to 50 x AP includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the EnGenius EWS5912FP Wireless Managed L2 switch 8-port GbE PoE+ Switch 2 x GbE 2 x SFP 130W manage up to 50 x AP compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the EWS5912FP Wireless Managed L2 switch 8-port GbE PoE+ Switch 2 x GbE 2 x SFP 130W manage up to 50 x AP.
