Brand: Ubiquiti · SKU: ETH-SP-G2 · MPN: ETH-SP-G2 · Category: Components

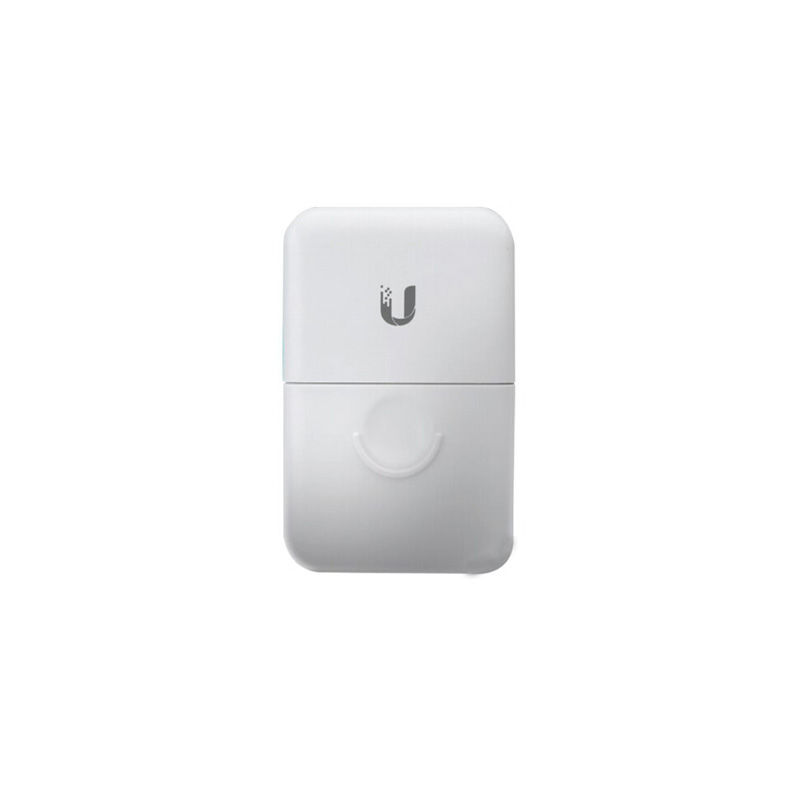

The Ubiquiti ETH-SP-G2 is the next generation Ethernet Surge Protector, designed as a cost-effective solution to protect outdoor Ethernet devices from damaging electrostatic discharge (ESD) and surges. It supports connection speeds up to 1 Gbps (10/100/1000 Mbps) and features two passive, surge-protected RJ45 connections for maximum equipment compatibility. The device is IPX5 rated for weather resistance and can be mounted on a wall or pole. It works by absorbing transient current in response to surge voltage and safely discharging it to the ground, providing an additional layer of protection, especially when used near CPE devices or at building entry points. It supports IEEE 802.3af PoE pass-through.
| PoE Support | Yes (IEEE 802.3af) |
|---|---|
| Weatherproofing | IPX5 |
| Discharge Current | 5kA (Normal) / 10kA+ (Maximum) |
| Maximum Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | RJ45 10/100/1000 Ethernet |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Interface Connections | (2) RJ45 Female Connectors |
| Operating Temperature | -30 to 65° C (-22 to 149° F) |
| Maximum Insulation Resistance | 1G ohm @ 50V |
| Shock and Vibration Certification | ETSI300-019-1.4 Standard |
| Maximum Impulse Spark-Over Voltage | 700V @ 1kV/µs |
| Warranty | 1-year Manufacturer Warranty |
| Weight | 80 g (2.82 oz) |
| Dimensions | 91 x 61 x 32.5 mm (3.58 x 2.4 x 1.28") |
The ETH-SP-G2 is a next-generation, cost-effective Ethernet Surge Protector from Ubiquiti, engineered to shield outdoor Power over Ethernet (PoE) or non-PoE devices from electrostatic discharge (ESD) and surges up to 1 Gbps speeds. It features dual passive surge-protected RJ45 ports, an IPX5 rating, and supports wall or pole mounting. Its primary function is to absorb transient current and safely discharge surges to the ground, offering essential protection for network infrastructure and meeting local code requirements.
Yes, this Ubiquiti ETH-SP-G2 Ethernet Surge Protector (ETH-SP-G2) is 100% genuine Ubiquiti hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Ubiquiti ETH-SP-G2 Ethernet Surge Protector includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ETH-SP-G2.
