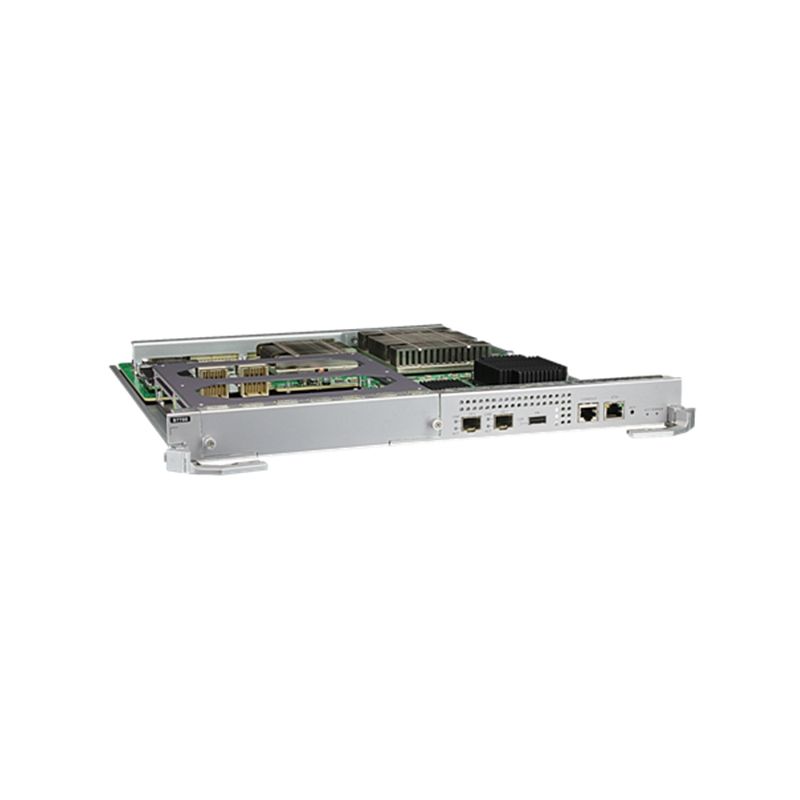

ES1D2SRUH000, Huawei S7700 Switch, Main Control Unit H/Redundant Hot Swap/High Reliability
Brand: Huawei · SKU: ES1D2SRUH000 · MPN: ES1D2SRUH000 · Category: Networking
Huawei S7706/S7712,Main Control Unit H ES1D2SRUH000
Specifications
| CSS | The ES1D2SRUH000 can have the ES1D2VS04000 installed to support the CSS function in V200R009C00 and later versions. |
|---|---|
| OAM | The ES1D2SRUH000 can have ES0D00FSUA00 installed to provide enhanced services such as Operation, Administration and Maintenance (OAM) and Bidirectional Forwarding Detection (BFD). 802.1ag: identifies, detects, and sends continuity check (CC) packets. Multiprotocol Label Switching (MPLS OAM): identifies, detects, and sends MPLS OAM packets. OAM UNCFG_MEP. |
| Flash | 64MB |
| Model | ES1D2SRUH000 |
| Memory | 4GB |
| Weight | 4.64 kg |
| Hot swap | Supported Before removing the active ES1D2SRUH000, perform an active/standby switchover. |
| eUSB card | 2GB The system configuration data, startup files, system software package, and system logs are saved in the eUSB card by default. |
| EMC compliance | CISPR22 Class A CISPR24 EN55022 Class A EN50024 ETSI EN 300 386 Class A CFR 47 FCC Part 15 Class A ICES 003 Class A AS/NZS CISPR22 Class A VCCI Class A IEC61000-6-2 IEC61000-6-4 IEC61000-4-2 ITU-T K 20 ITU-T K 21 ITU-T K 44 CNS13438 CLASS A KN 22 CLASS A |
| Basic functions | The ES1D2SRUH000 is the system control and management unit for the S7712 and S7706. It integrates the main control unit, switching unit, and system maintenance unit. |
| Redundancy backup | Supported Main control board is mandatory for switches. Each switch must be configured with one or two main control boards. When one main control board is configured for a switch, the main control board can be installed in either main control board slot of the switch. When two main control boards are configured, the two main control boards work in hot standby mode to improve reliability of the switch. The active and standby main control boards monitor the status of each other. If the active main control board fails, the standby main control board automatically becomes active to ensure uninterrupted services. |
| Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
| Environment parameters | Operating temperature: 0°C to 45°C (32°F to 113°F) Operating relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°C to +70°C (-40°F to +158°F) Storage relative humidity: 5% RH to 95% RH (noncondensing) |
| Physical specifications | Dimensions (W x D x H): 394.7mm x 426.8mm x 35.1mm (15.5in. x 16.8in. x 1.4in.) Reserved subcard slot: 243.7mm x 170.0mm x 35.1mm (15.5in. x 6.7in. x 1.4in.) Weight: 3.46 kg (7.63 lb) Maximum power consumption: 183W (including subcards) |
| Safety standards compliance | IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No 60950-1 AS/NZS 60950.1 BS EN 60950-1 |
| Environmental standards compliance | RoHS REACH WEEE |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ES1D2SRUH000, Huawei S7700 Switch, Main Control Unit H/Redundant Hot Swap/High Reliability (ES1D2SRUH000) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ES1D2SRUH000, Huawei S7700 Switch, Main Control Unit H/Redundant Hot Swap/High Reliability includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ES1D2SRUH000, Huawei S7700 Switch, Main Control Unit H/Redundant Hot Swap/High Reliability compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ES1D2SRUH000.
