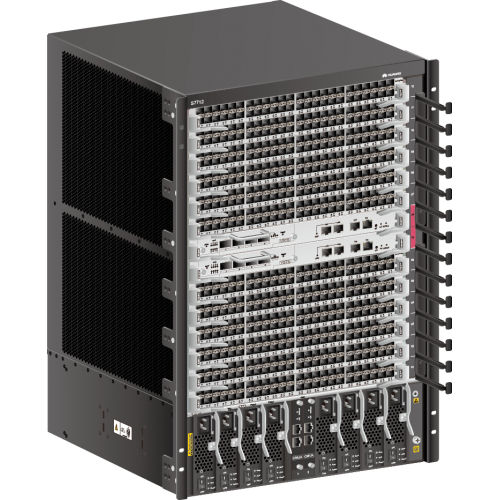

ES0B017712P0, Huawei S7700 Switch, 12 slots/POE chassis/No PSU
Brand: Huawei · SKU: ES0B017712P0 · MPN: ES0B017712P0 · Category: Components
Specifications
| ARP | 256K ARP entries |
|---|---|
| QoS | 256K ACLs |
| MPLS | Basic MPLS functions |
| VLAN | Three types of interfaces: access, trunk, and hybrid |
| Model | ES0B017712P0 |
| Weight | 66.73 kg |
| Multicast | 128,000 multicast routing entries |
| IP Routing | 1M IPv4 routing entries |
| MAC Address | 1M MAC address entries |
| Reliability | LACP and E-Trunk between devices |
| Service Slots | 12 |
| Ring Protection | STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) |
| User Management | Unified user management |
| Working Voltage | DC: –38.4V to –72V AC: 90V to 290V |
| Interoperability | Supports VBST (compatible with PVST/PVST+/RPVST) |
| Maximum PoE Power | 8,800W |
| Redundancy Design | Supervisors, power modules, CMUs, fans trays |
| Switching Capacity | 3.84 Tbit/s |
| Energy Conservation | IEEE 802.3az: Energy Efficient Ethernet (EEE) |
| Time synchronization | IEEE 1588v2 |
| Value-added Service* | Firewall |
| Dimensions (W x D x H) | 442mm x 489mm x 664mm |
| Forwarding Performance | 2,880Mpps |
| Security and Management | 802.1x authentication and portal authentication |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ES0B017712P0, Huawei S7700 Switch, 12 slots/POE chassis/No PSU (ES0B017712P0) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ES0B017712P0, Huawei S7700 Switch, 12 slots/POE chassis/No PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ES0B017712P0, Huawei S7700 Switch, 12 slots/POE chassis/No PSU compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ES0B017712P0.
