Brand: Ubiquiti · SKU: ES-24-LITE · MPN: ES-24-LITE · Category: Networking

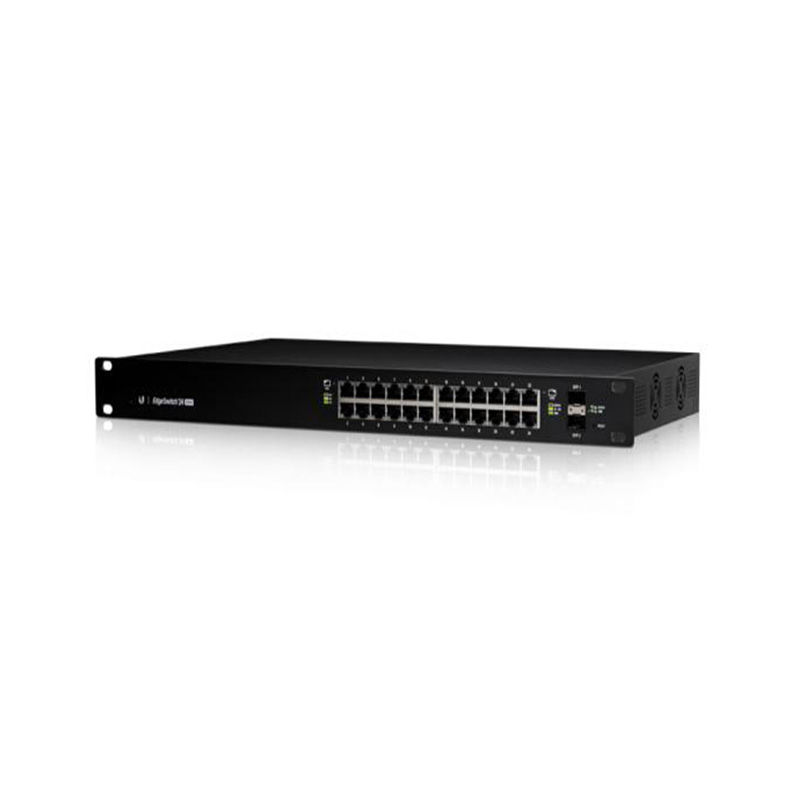

The Ubiquiti EdgeSwitch 24 Lite (ES-24-LITE) is a fully managed Gigabit switch from the EdgeMAX line, offering robust performance and intelligent switching capabilities for growing networks. It supports an extensive suite of advanced Layer 2 switching features and protocols, as well as Layer 3 routing capability. It processes traffic on all ports at line rate without packet loss. It features 24 Gigabit RJ45 ports and 2 Gigabit SFP ports, making it suitable for high-density Ethernet networks and providing fiber connectivity options for uplinks up to 1 Gbps. It is designed for quiet, fanless operation, can be rack or wall-mounted, and supports an optional redundant Power Supply Unit (PSU).
| Operation | Fanless |
|---|---|
| Rackmount | Yes, 1U High |
| Power Method | 100-240VAC/50-60Hz, Universal Input; DC 25V/25W Min. (Optional Redundant PSU) |
| Forwarding Rate | 38.69 Mpps |
| Switching Capacity | 52 Gbps or 53 Gbps (Sources vary) |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Networking Interfaces | (24) 10/100/1000Mbps RJ45 Ethernet Ports + (2) 1Gbps SFP Ethernet Ports |
| Max. Power Consumption | 25W |
| Total Non-Blocking Throughput | 26 Gbps |
| Warranty | N/A |
| Weight | 2.51kg (5.54lbs) without rack-mount brackets; 2.7kg (5.7lbs) with brackets |
| Dimensions | 443 x 43 x 221mm (17.44 x 1.69 x 8.70") |
The EdgeSwitch 24 Lite is a fully managed, fanless Gigabit switch offering 24 RJ45 ports and 2 SFP ports. It supports Layer 2 and Layer 3 features, non-blocking throughput of 26 Gbps, and a switching capacity of 52/53 Gbps. It has a low maximum power consumption of 25W and supports mounting in a standard 1U rack.
Yes, this Ubiquiti EdgeSwitch 24-Port Lite Gigabit Switch (ES-24-LITE) is 100% genuine Ubiquiti hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Ubiquiti EdgeSwitch 24-Port Lite Gigabit Switch includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ES-24-LITE.
