Eagle Eye Bridge 305 Ruggedized 4-Port PoE Video Bridge – EN-BR305-0
Brand: Eagle Eye Networks · SKU: EN-BR305-0 · MPN: EN-BR305-0 · Category: Components

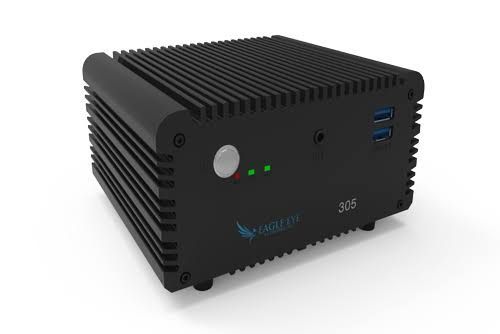

Eagle Eye Bridge 305 EN-BR305-0 is a ruggedized video bridge with four managed PoE ports, fanless aluminum construction and cloud-managed surveillance support.
Specifications
| Mounting | Wall or Shelf Mount |
|---|---|
| PoE Ports | 4 Managed PoE Ports (Class 3) |
| Dimensions | Approximately 14.5 × 13 × 7.5 cm |
| Max Cameras | 12 IP Cameras @ 4MP |
| Video Output | 1x HDMI, 1x DisplayPort |
| Network Ports | 1x Gigabit WAN, 4x 100Mbps PoE CamLAN |
| Local Buffering | 2 Days on-premise storage |
| Part Number / MPN | EN-BR305-0 |
| Power Consumption | 22W Typical |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Warranty | 3-Year Warranty |
| Weight | 2.90 lbs |
| Dimensions | 7.08 x 5.00 x 2.50 in |
Key Features
The Eagle Eye Bridge 305 EN-BR305-0 is a ruggedized video networking appliance designed for demanding security and surveillance installations. It combines video bridging and managed PoE connectivity in a compact, fanless aluminum enclosure suitable for industrial and remote applications. The Bridge 305 provides four integrated Class 3 managed PoE ports compliant with IEEE 802.3af/at, allowing compatible IP cameras to connect directly to the appliance. It supports up to 15 HD IP cameras when used with an Ethernet switch, while four cameras can be connected directly through its integrated PoE ports. The appliance is fully managed through the Eagle Eye Security Camera VMS and provides local video buffering, cloud synchronization and remote camera power cycling. It also includes WAN connectivity, DisplayPort and HDMI video outputs, wall mounting and an external power supply.
