Brand: Cisco · SKU: EHWIC-4G-LTE-G · MPN: EHWIC-4G-LTE-G · Category: Components

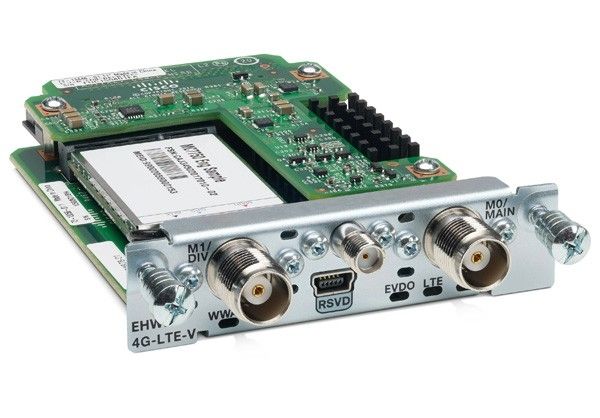

The Cisco EHWIC-4G-LTE-G is a 4G Wireless WAN Enhanced High-Speed WAN Interface Card (EHWIC) designed to deliver high-speed mobile broadband connectivity for enterprise branch offices and remote sites. It supports 4G LTE networks for both primary and backup WAN applications, offering the capability to automatically initiate a connection over 4G WWAN if the primary WAN link fails. It supports the latest 4G standards, delivering a maximum data rate of 100Mbps downstream and 50 Mbps upstream (dependent on the service provider's network). It builds on the performance of previous generations, offering a cost-effective, reliable, rapidly deployable, and secure backup solution. It is designed for seamless integration into next-generation routers and switches, enabling enhanced network reach and redundancy. The card supports fallback to 3G connectivity when necessary. It is optimized for demanding network environments and serves as an effective backup solution for applications like expanding d
| Modem | Sierra Wireless MC7710 |
|---|---|
| Form Factor | Single-wide EHWIC |
| Module Type | 4G LTE |
| Product Type | Wireless WAN Module |
| SIM Card Support | 4G LTE SIM card socket (USIM or mini-SIM) |
| Power Consumption | 10.6 W peak (5.1 W typical) |
| Antenna Connectors | Two TNC connectors for main and MIMO RF port; Separate active GPS with SMA |
| External Interfaces | Mini-USB, Two TNC connectors (main and MIMO RF port), SMA GPS port (with later Cisco IOS Software release) |
| LTE Bands Supported | Global: 800/900/1800/2100/2600 MHz (LTE bands 1, 3, 7, 8, 20) |
| Supported Platforms | Cisco 1900, 2900, and 3900 Series ISR G2 |
| Data Rate (Downstream/Upstream) | Up to 100Mbps / 50Mbps |
| Warranty | Not Available |
| Weight | 5.2 oz (147 grams) |
| Dimensions | 0.75 x 3.08 x 4.9 in. (1.9 x 7.8 x 12.4 cm) |
The EHWIC-4G-LTE-G is a high-performance 4G LTE module providing reliable mobile connectivity for Cisco ISR G2 platforms (1900, 2900, 3900 Series). It supports high-speed data rates up to 100Mbps down/50Mbps up and serves as a critical backup or primary WAN link for branch offices and remote sites. It integrates essential features like failover capability and supports necessary 4G standards for global deployment.
Yes, this Cisco EHWIC-4G-LTE-G 4G LTE EHWIC Card (Global) (EHWIC-4G-LTE-G) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Cisco EHWIC-4G-LTE-G 4G LTE EHWIC Card (Global) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the EHWIC-4G-LTE-G.
