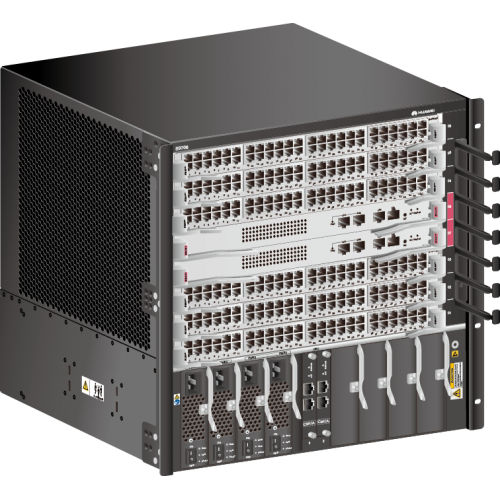

EH1BS9706E00, Huawei S9700 Switch Chassis, 6 Slots/Assembly Chassis/No Fan & PSU
Brand: Huawei · SKU: EH1BS9706E00 · MPN: EH1BS9706E00 · Category: Components
Specifications
| QoS | Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority Actions of ACL, CAR, re-mark, and schedule Queue scheduling algorithms, such as PQ, WRR, DRR, PQ+WRR, and PQ+DRR Congestion avoidance mechanisms, such as WRED and tail drop HQoS Traffic shaping |
|---|---|
| STP | STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s) BPDU protection, root protection, and loop protection BPDU tunnel |
| MPLS | Basic MPLS functions MPLS OAM MPLS TE MPLS VPN/VLL/VPLS |
| VLAN | Adding access, trunk, and hybrid interfaces to VLANs Default VLAN VLAN switching QinQ and selective QinQ MAC address-based VLAN assignment |
| Model | EH1BS9706E00 |
| Weight | 51.85 kg |
| Multicast | IGMP v1/v2/v3, IGMPv1/v2/v3 snooping PIM-SM, PIM-DM, PIM-SSM MSDP, MBGP Prompt leave Multicast traffic control Multicast querier Suppression on multicast packets Multicast CAC Multicast ACL |
| Dimensions | width x depth x height: 442mm - 476mm - 442mm |
| IP routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS IPv6 dynamic routing protocols, such as, RIPng, OSPFv3, ISISv6, and BGP4+ |
| MAC address | Automatic learning and aging of MAC addresses Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses MAC address limiting based on ports and VLANs |
| Reliability | LACP and E-Trunk VRRP and BFD for VRRP BFD for BGP/IS-IS/OSPF/static route NSF, and GR for BGP/IS-IS/OSPF/LDP TE FRR and IP FRR Ethernet OAM (IEEE 802.3ah and 802.1ag) (Hardware level) ITU-Y.1731 DLDP In-service software upgrade (ISSU) |
| Energy saving | IEEE 802.3az: Energy Efficient Ethernet (EEE) |
| Service slots | 6 |
| Operating voltage | DC: -38.4 V to -72 V AC: 90 V to 290V |
| Power consumption | 4400W |
| Backplane capacity | 14.4Tbps |
| Switching capacity | 3.84Tbps/5.76Tbps |
| Value-added services | Firewall NAT Netstream IPSec Load balancing Wireless AC |
| Forwarding performance | 2880Mpps/ 4320Mpps |
| Security and management | 802.1x authentication and Portal authentication NAC RADIUS and HWTACACS authentication for login users Command line authority control based on user levels, preventing unauthorized users from using commands Defense against DoS attacks, TCP SYN Flood attacks, UDP Flood attacks, broadcast storms, and heavy traffic attacks 1K CPU queues Ping and traceroute functions based on ICMP packets Remote network monitoring |
| Configuration and maintenance | Console, Telnet, and SSH terminals Network management protocols, such as SNMPv1/v2/v3 File uploading and downloading using FTP and TFTP BootROM upgrade and remote upgrade Hot patches User operation logs |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this EH1BS9706E00, Huawei S9700 Switch Chassis, 6 Slots/Assembly Chassis/No Fan & PSU (EH1BS9706E00) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This EH1BS9706E00, Huawei S9700 Switch Chassis, 6 Slots/Assembly Chassis/No Fan & PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the EH1BS9706E00, Huawei S9700 Switch Chassis, 6 Slots/Assembly Chassis/No Fan & PSU compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the EH1BS9706E00.
