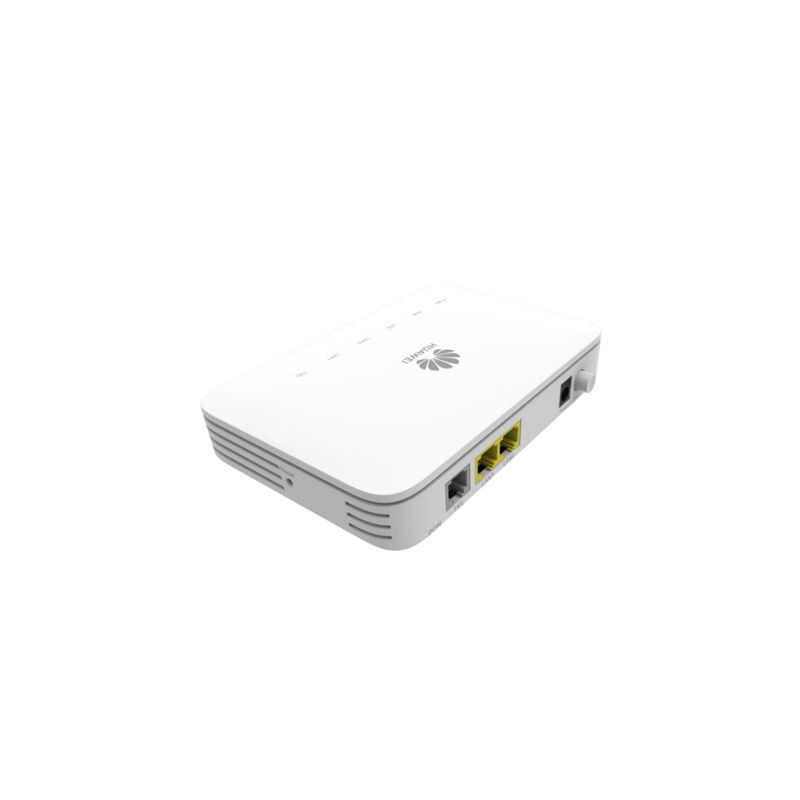

EG8120L5, Huawei GPON Terminal, SC/UPC, Chinese Plug, Chinese
SKU: EG8120L5 · MPN: EG8120L5 · Category: Components
EG8120L5,GPON Terminal,SC/UPC,Chinese Plug Adapter,Chinese
Specifications
| NNI | 1 x GPON |
|---|---|
| UNI | 1 x POTS, 1 x GE, 1 x FE |
| GPON Port | Class B+ Receiver sensitivity: –27 dBm Overload optical power: –8 dBm Wavelengths: US 1310 nm, DS 1490 nm Wavelength blocking filter (WBF) of G.984.5 Flexible mapping between GEM ports and TCONTs GPON: consistent with the SN or password authentication defined in G.984.3 Bidirectional FEC SR-DBA and NSR-DBA Type B (single-homing & dual-homing) |
| POTS Port | Maximum REN: 4 G.711A/μ, G.729a/b, and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (complies with the SIP protocol) |
| Indicators | Power/PON/LOS/LAN2/LAN1/TEL |
| Ethernet Ports | Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning GE: auto-adaptive 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s FE: auto-adaptive 10 Mbit/s or 100 Mbit/s |
| Optical Connector | SC/APC |
| Operating Humidity | 5%–95% RH (non-condensing) |
| Power Adapter Input | 100–240 V AC, 50/60 Hz |
| System Power Supply | 11–14 V (typical value 12 V) DC, 1 A |
| Operating Temperature | 0–40°C |
| Dimensions (H x W x D) | 32 x 145 x 97 mm (without floor mat) |
| Static Power Consumption | 3.8 W |
| Maximum Power Consumption | 5 W |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this EG8120L5, Huawei GPON Terminal, SC/UPC, Chinese Plug, Chinese (EG8120L5) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This EG8120L5, Huawei GPON Terminal, SC/UPC, Chinese Plug, Chinese includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the EG8120L5, Huawei GPON Terminal, SC/UPC, Chinese Plug, Chinese compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the EG8120L5.
