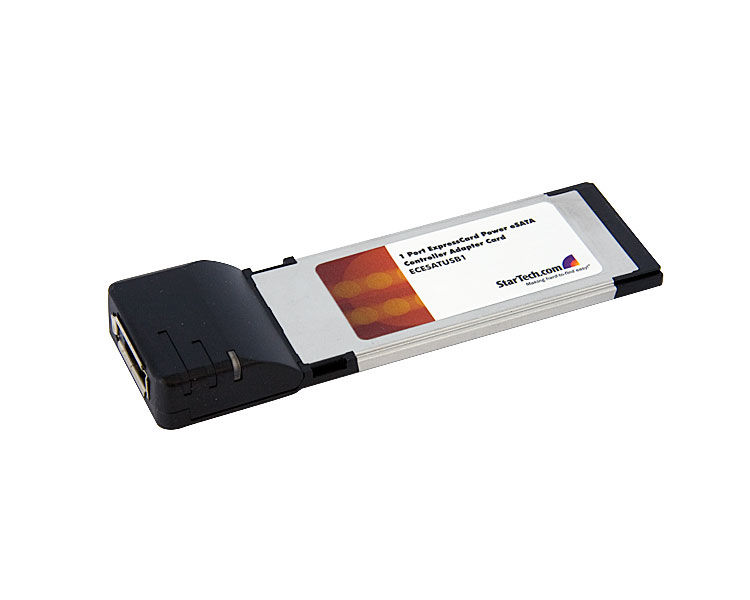

StarTech.com 1Port ExpressCard eSATA Card interface cards/adapter
Brand: StarTech.com · SKU: ECESATUSB1 · MPN: ECESATUSB1 · Category: Components
StarTech.com 1Port ExpressCard eSATA Card, ExpressCard, ExpressCard, 1x 1-pin Power eSATA FM, Black, Grey, ROHS, CE, FCC, SiI3132. StarTech.com 1Port ExpressCard eSATA Card interface cards/adapter (part number ECESATUSB1) is an enterprise components product available from Server Tech Central. Key specifications include depth 110 mm, width 34 mm, height 15 mm, weight 24 g, chipset SiI3132, raid levels 0, 1, 5, JBOD, connector(s) 1x 1-pin Power eSATA FM, certification ROHS, CE, FCC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 110 mm |
|---|---|
| Width | 34 mm |
| Height | 15 mm |
| Weight | 24 g |
| Chipset | SiI3132 |
| RAID levels | 0, 1, 5, JBOD |
| Connector(s) | 1x 1-pin Power eSATA FM |
| Certification | ROHS, CE, FCC |
| Host interface | ExpressCard |
| Ports quantity | 1 |
| Product colour | Black, Grey |
| Output interface | ExpressCard |
| Mac compatibility | Yes |
| eSATA ports quantity | 1 |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Compatible operating systems | Win 2000/XP/Visata Mac 10.5.X Linux |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
| Warranty | 3-Year Warranty |
| Weight | 24 g |
| Dimensions | 34 mm x 110 mm x 15 mm |
Product Description
This ExpressCard Power eSATA port controller card can be installed in an available ExpressCard 34/54 mm slot to provide a powered eSATA connection, and also alternatively provide either external SATA (data only) or USB 2.0 connectivity from one uniquely designed port if using with standard eSATA or USB devices. An ideal solution for using an eSATA SSD Flash drive on your laptop, the power eSATA card delivers both a high speed eSATA connection and power from the combined USB port. A versatile connectivity solution, the card features built-in port multiplier support, allowing multi-drive eSATA storage enclosures to be connected to the host computer using a single eSATA cable. - Supports data transfer speeds up to 3.0 Gbps with SATA II (480Mbps with USB 2.0) - Ideal cable-free solution to using eSATA SSD Flash drives on your laptop - Port multiplier capability with command based switching - Compliant with ExpressCard Specification 1.0 and ExpressCard 34 Form Factor - Supports hot-swappable device installations - Supports RAID 0, 1, 5, and 10 - Supports Windows 2000/XP/Vista, MAC, and Linux - USB 2.0, SATA I, and SATA II standard compliant
Key Features
StarTech.com 1Port ExpressCard eSATA Card. Host interface: ExpressCard, Output interface: ExpressCard, Connector(s): 1x 1-pin Power eSATA FM. Product colour: Black, Grey, Certification: ROHS, CE, FCC. Chipset: SiI3132, RAID levels: 0, 1, 5, JBOD. Width: 34 mm, Depth: 110 mm, Height: 15 mm. Connectivity technology: Wired, Compatible operating systems: Win 2000/XP/Visata Mac 10.5.X Linux
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 1Port ExpressCard eSATA Card interface cards/adapter (ECESATUSB1) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 1Port ExpressCard eSATA Card interface cards/adapter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 1Port ExpressCard eSATA Card interface cards/adapter compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ECESATUSB1.
