StarTech.com EC1S1P55254 interface cards/adapter Internal Parallel, Serial

Brand: StarTech.com · SKU: EC1S1P55254 · MPN: EC1S1P55254 · Category: Components

StarTech.com EC1S1P55254 interface cards/adapter Internal Parallel, Serial
Request for Quote
Backorder

StarTech.com EC1S1P55254, ExpressCard, Parallel, Serial, RS-232, RS-232, IEEE 1284, Laptop, CE, FCC. StarTech.com EC1S1P55254 interface cards/adapter Internal Parallel, Serial (part number EC1S1P55254) is an enterprise components product available from Server Tech Central. Key specifications include depth 115 mm, width 54 mm, height 18 mm, weight 52 g, chipset Moschip MS9922CV-AA, purpose Laptop, internal Yes, user guide Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Components Products

Specifications

Depth115 mm
Width54 mm
Height18 mm
Weight52 g
ChipsetMoschip MS9922CV-AA
PurposeLaptop
InternalYes
User guideYes
Connector(s)RS-232, IEEE 1284
CertificationCE, FCC
Package depth210 mm
Package width145 mm
Plug and PlayYes
Host interfaceExpressCard
Package height40 mm
Ports quantity2
Output interfaceParallel, Serial
Mac compatibilityYes
Data transfer rate1.5 Mbit/s
Flow control supportYes
Serial interface typeRS-232
Serial ports quantity1
Compliance certificatesRoHS
Connectivity technologyWired
Warranty3-Year Warranty
Weight52 g
Dimensions54 mm x 115 mm x 18 mm

Product Description

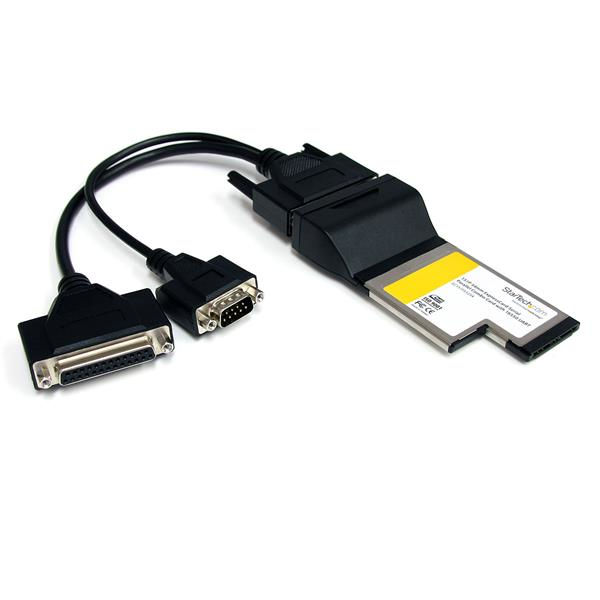

The EC1S1P55254 1S1P 54mm Parallel/Serial ExpressCard (16550 UART) adds 1 RS232 serial, and 1 IEEE 1284 Parallel port to your laptop, using an available 54mm ExpressCard slot. This high-performance Serial/Parallel adapter with included breakout cable uses the full 54mm form factor for a perfect fit and long life durability. Supporting RS232 speeds up to 128Kbps and parallel rates up to 1.5Mbps, the serial/parallel adapter features a native chipset that delivers reliability, performance, and lower CPU loads versus conventional bridge-chip cards. Designed for use with laptop computers equipped with 54mm ExpressCard slots, this 1S-1P card offers a broad operating system compatibility list that includes Windows, Mac OS X and Linux, for simple integration into almost any system. The adapter also functions as a single port Parallel adapter if used without the included breakout cable. Backed by a StarTech.com Lifetime warranty and free lifetime technical support. Features - 1x 16C450/550 compatible UART serial port, and 1x IEEE 1284 Parallel port. - Supports baud rates up to 128000bps. - Parallel data rates up to 1.5Mbps. - 256 Byte deep transmit/receive FIFO. - Breakout cable included. - Fully compliant with PCI Express Base Specification Revision 1.0a. - Supports PCIe Power Management. Applications - Add serial and parallel connectivity to newer systems that lack integrated ports, or expand the amount of available peripheral connections. - Perfect for mobile administrators who are required to connect to and configure routers, switches and industrial serial devices. - Embedded system coding, building, and diagnostics applications. - POS retail applications in grocery and other store locations, for controlling keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays. - Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners and label printers. - Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip drives, and memory card readers. The StarTech.com Advantage - This Parallel/Serial ExpressCard features a high performance single-chip design that optimizes speed, reliability, and power, while reducing CPU load by as much as 48% over conventional adapters that use a 'bridge-chip'. - Full width 54mm ExpressCard is a perfect fit for business laptops and ensures a long life without damage to the card, or your notebook. - The included breakout cable spreads out the 2 ports, to avoid crowded connections.

Key Features

StarTech.com EC1S1P55254. Host interface: ExpressCard, Output interface: Parallel, Serial, Serial interface type: RS-232. Purpose: Laptop, Certification: CE, FCC. Chipset: Moschip MS9922CV-AA, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 2000, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows Vista Home Premium,..., Mac operating systems supported: Mac OS X 10.4 Tiger, Server operating systems supported: Windows 2000 Server, Windows Server 2003, Windows Server 2003 x64. Width: 54 mm, Depth: 115 mm, Height: 18 mm

Frequently Asked Questions

Is this product genuine OEM?

Yes, this StarTech.com EC1S1P55254 interface cards/adapter Internal Parallel, Serial (EC1S1P55254) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This StarTech.com EC1S1P55254 interface cards/adapter Internal Parallel, Serial includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the StarTech.com EC1S1P55254 interface cards/adapter Internal Parallel, Serial compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the EC1S1P55254.
