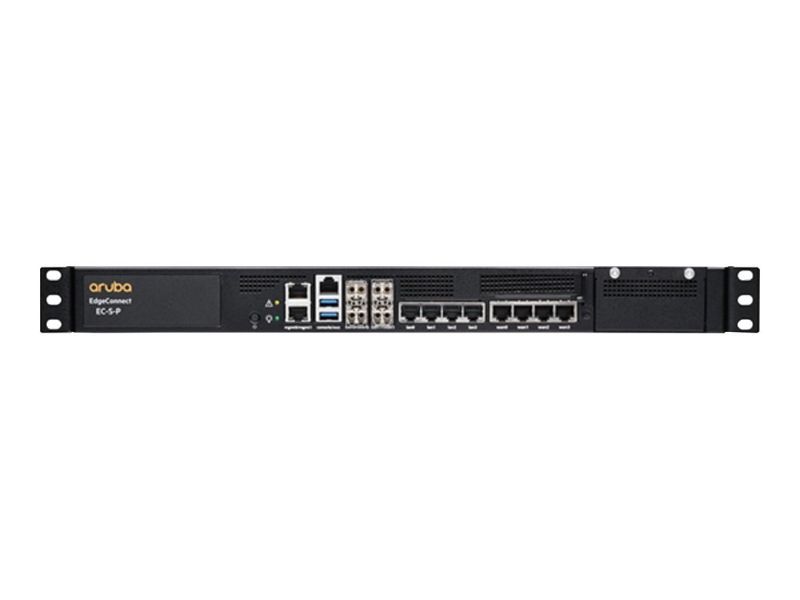

HPE Aruba Networking EdgeConnect EC-S-P SD-WAN Gateway – EC-S-P
Brand: HPE Aruba Networking (formerly Silver Peak) · SKU: EC-S-P · MPN: 300565-002 · Category: Components
HPE Aruba Networking EdgeConnect EC-S-P SD-WAN Gateway with 8 × 10/100/1000 RJ45 and 4 × 1/10Gbps SFP+ ports for secure branch connectivity.
Specifications
| MTBF | 177,726 hours (20 years) |
|---|---|
| Encryption | IPsec (256-bit AES), Disk Encryption (128-bit AES) |
| Fiber Ports | 4 x 1/10 Gbps SFP+ (2 LAN/2 WAN) |
| Form Factor | Compact Thin Edge Appliance, 1U Rack-mountable |
| AC Requirement | 100-240VAC/47-63Hz/300W |
| Management Ports | 2 x RJ-45 (plus 1 console port) |
| Operating Temperature | 0° C to 40° C (32° to 104° F) |
| LAN/WAN Ethernet Ports | 8 x 10/100/1000 (4 LAN/4 WAN) RJ-45 |
| Simultaneous Connections | 256,000 |
| Part Number (Chassis Example) | 300565-002 |
| WAN Throughput Capacity (Max) | 10 to 1,000 Mbps (with encryption) |
| Manufacturer Part Number (AC PSU Example) | 500615-001 |
| Warranty | 3-Year Warranty |
| Weight | 0.5 lbs (for AC Power Supply only) |
| Dimensions | Height: 1.7 in (44 mm) |
Key Features
The HPE Aruba Networking EdgeConnect EC-S-P SD-WAN Gateway is a compact 1U branch networking appliance designed for large branch offices and remote locations. It provides eight 10/100/1000 Ethernet LAN/WAN ports and four 1/10Gbps SFP+ fiber LAN/WAN ports, supporting flexible hybrid WAN deployments. The EC-S-P delivers typical WAN bandwidth from 10 Mbps to 3 Gbps and supports up to 500 Mbps of WAN optimization Boost capacity. Integrated EdgeConnect SD-WAN capabilities provide path optimization, WAN optimization, application-aware routing, segmentation and security features including IDS/IPS. The appliance includes dual 480GB SSDs, a power supply and power cord, with an option for redundant power.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this HPE Aruba Networking EdgeConnect EC-S-P SD-WAN Gateway – EC-S-P (EC-S-P) is 100% genuine HPE Aruba Networking (formerly Silver Peak) hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This HPE Aruba Networking EdgeConnect EC-S-P SD-WAN Gateway – EC-S-P includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the HPE Aruba Networking EdgeConnect EC-S-P SD-WAN Gateway – EC-S-P compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the EC-S-P.
