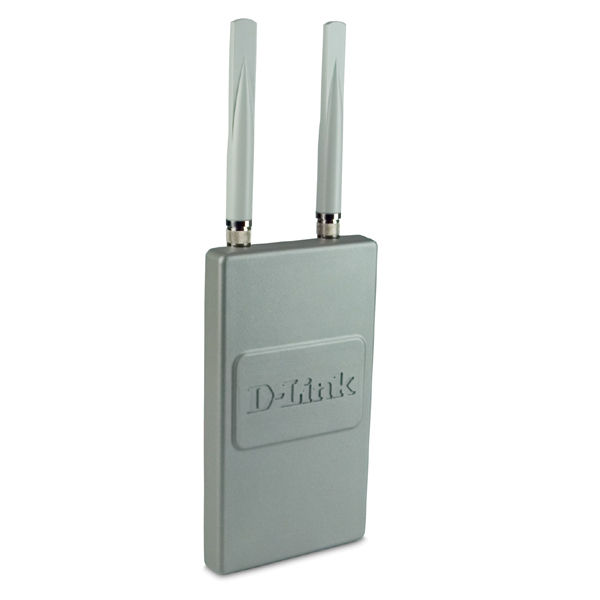

D-Link DWL-7700AP 100 Mbit/s Power over Ethernet (PoE)
Brand: D-Link · SKU: DWL-7700AP/A · MPN: DWL-7700AP/A · Category: Components
D-Link DWL-7700AP, 2.4 GHz, 5 GHz, 100 Mbit/s, 128-bit WEP, 152-bit WEP, 64-bit WEP, SSID, WPA, WPA2, 10,100 Mbit/s. D-Link DWL-7700AP 100 Mbit/s Power over Ethernet (PoE) (part number DWL-7700AP/A) is an enterprise components product available from Server Tech Central. Key specifications include 5 ghz Yes, weight 1.95 kg, 2.4 ghz Yes, internal No, power led Yes, modulation 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK, indoor range 99 m, certification FCC, CSA. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| 5 GHz | Yes |
|---|---|
| Weight | 1.95 kg |
| 2.4 GHz | Yes |
| Internal | No |
| Power LED | Yes |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK |
| Indoor range | 99 m |
| Certification | FCC, CSA |
| Outdoor range | 500 m |
| Frequency band | 2.4 - 5.85 GHz |
| LED indicators | LAN, WLAN |
| Bundled software | AP Manager |
| Data transfer rate | 0.1 Gbit/s |
| Dimensions (WxDxH) | 155 x 278 x 45 mm |
| Power requirements | 48 VDC |
| Management platform | AP Manager |
| Networking features | Fast Ethernet |
| Security algorithms | 128-bit WEP, 152-bit WEP, 64-bit WEP, SSID, WPA, WPA2 |
| Management protocols | SNMP |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Receiver sensitivity | 802.11a: +6Mbps: -85dBm + 9Mbps: -84dBm +12Mbps: -82dBm + 18Mbps: -80dBm +24Mbps: -77dBm + 36Mbps: -73dBm +48Mbps: -69dBm + 54Mbps: -68dBm 802.11b: +1Mbps: -94dBm + 2Mbps: -91dBm +5.5Mbps: -89dBm + 11Mbps: -85dBm 802.11g: +1Mbps: -95dBm + 2Mbps: -91dBm +5.5Mbps: -89dBm + 6Mbps: -90dBm +9Mbps: -84dBm + 11Mbps: -88dBm +12Mbps: -82dBm + 18Mbps: -80dBm +24Mbps: -77dBm + 36Mbps: -73dBm +48Mbps: -72dBm + 54Mbps: -72dBm |
| MAC address filtering | Yes |
| Spread spectrum method | DSSS |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Warranty | 3-Year Warranty |
| Weight | 1.95 kg |
Product Description
Ideal for businesses in need of an outdoor wireless solution, D-Link's high-performance DWL-7700AP Wireless AG Access Point/Bridge supports PoE functionality and is easy to deploy. D-Link, the industry pioneer in wireless networking, introduces a reliable high-performance wireless outdoor solution – the D-Link AirPremier 802.11a/g Outdoor AP/Bridge (DWL-7700AP). The dualband AP/Bridge is capable of delivering maximum wireless signal rates of up to 54Mbps in both 802.11a and 802.11g wireless bands in any outdoor environment – simultaneously. Extended Wireless Coverage The AirPremier 802.11a/g Outdoor AP/Bridge is an ideal addition to businesses seeking to extend dualband wireless signal coverage over a variety of outdoor scenarios. Hot spot operators can use this rugged outdoor access point to support and deliver 802.11a and 802.11g wireless connectivity to their customers—whether they are out on the patio or deck, by the swimming pool, in the terrace, or on the golf course. By offering concurrent dualband connectivity, the total aggregate bandwidth available on the network increases. Another ideal application includes bridging together networks which are located in separate buildings. With the 802.11a/g Outdoor AP/Bridge’s dualband capability, network administrators can bridge the networks on the 802.11a band while simultaneously providing 802.11g coverage for public wireless access. Durable Outdoor AP/Bridge Enclosed in a diecast watertight housing and equipped with a built-in heater monitored by a temperature sensor, the 802.11a/g Outdoor AP/Bridge is designed to endure harsh outdoor conditions. For advanced installations, this Access Point has an integrated 802.3af Power over Ethernet (PoE) port that allows you to install the device in areas where power outlets are not readily available. Both antennas are detachable and can be replaced with higher gain ones for an improved wireless signal. Multiple Operation Modes In addition to convenient installation, the AirPremier 802.11a/g Outdoor AP/Bridge can be configured to operate in any of three modes: Access Point (AP), Wireless Distribution System (WDS) with AP, or WDS (No AP Broadcasting). The AirPremier 802.11a/g Outdoor AP/Bridge includes advanced features such as load balancing that optimizes high network traffic volume and redundancy for fail-safe wireless connectivity. Security When used in any of its operating modes, the 802.11a/g Outdoor AP/Bridge provides maximum security by supporting WEP (64/128/152-bit), WPA™, WPA2™, MAC Address Filtering, Wireless LAN segmentation, and Disable SSID Broadcast ensuring complete network protection. Network Management Network administrators can manage all the 802.11a/g Outdoor AP/Bridge settings via its Web-based configuration utility or with Telnet. For advanced network management, administrators can use D-Link’s AP Manager II or the D-View SNMPv3 management module to configure multiple access points from a single location. With its dualband functionality, integrated PoE support, extensive manageability, versatile operation modes, and solid security enhancements all in one box, the D-Link AirPremier 802.11a/g Outdoor AP/Bridge (DWL-7700AP) provides everything network administrators need to extend a robust wireless network to the great outdoors. - Simultaneous 802.11a/g Connectivity. - Supports Integrated 802.3af Power over Ethernet. - Supports Multiple Operation Modes: Access Point (AP), Wireless Distribution System (WDS), and WDS with AP.
Key Features
D-Link DWL-7700AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 100 Mbit/s. Security algorithms: 128-bit WEP, 152-bit WEP, 64-bit WEP, SSID, WPA, WPA2. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link DWL-7700AP 100 Mbit/s Power over Ethernet (PoE) (DWL-7700AP/A) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link DWL-7700AP 100 Mbit/s Power over Ethernet (PoE) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link DWL-7700AP 100 Mbit/s Power over Ethernet (PoE) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DWL-7700AP/A.
