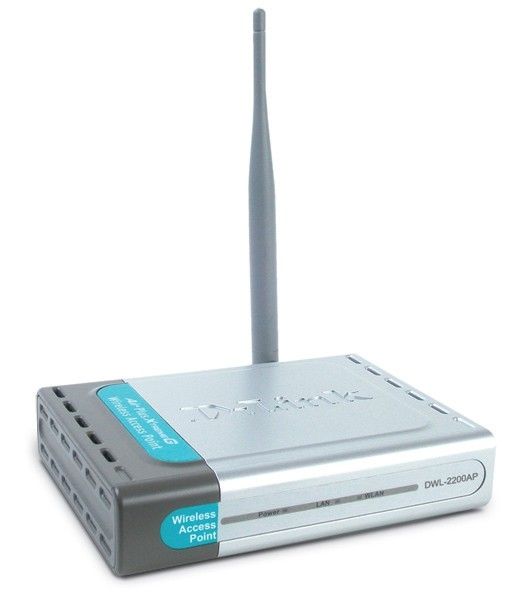

D-Link AirPremier Wireless 108G Access Point 108 Mbit/s Power over Ethernet (PoE)
Brand: D-Link · SKU: DWL-2200AP · MPN: DWL-2200AP · Category: Networking
D-Link AirPremier Wireless 108G Access Point, 2.4 GHz, 108 Mbit/s, TKIP, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK
Specifications
| 2.4 GHz | Yes |
|---|---|
| Modulation | DSSS, OFDM |
| Indoor range | 100m |
| Certification | FCC Class B, UL, WMM, CE, Wi-Fi |
| Outdoor range | 400m |
| Frequency band | 2.4 - 2.4835 GHz |
| LED indicators | LAN, Power, WLAN |
| Channels quantity | 13 channels |
| Cabling technology | 10/100Base-T(X) |
| Dimensions (WxDxH) | 142 x 109 x 31 mm |
| Power requirements | 48VDC |
| Networking features | Fast Ethernet, Wireless LAN |
| Security algorithms | TKIP, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK |
| Management protocols | HTTP, HTTPS, SNMP v3, Telnet, SSH Telnet |
| Receiver sensitivity | 802.11b: 11 Mbps: -83dBm 2 Mbps: -89dBm 802.11g: 54 Mbps: -66dBm 48 Mbps: -71dBm 36 Mbps: -76dBm 24 Mbps: -80dBm 18 Mbps: -83dBm 12 Mbps: -85dBm 9 Mbps: -86dBm 6 Mbps: -87dBm |
| Web-based management | Yes |
| MAC address filtering | Yes |
| Antenna connector type | RP-SMA |
| Antenna gain level (max) | 5 dBi |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -20 - 65 °C |
| Maximum data transfer rate | 108 Mbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Compliance industry standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af |
| Warranty | 3-Year Warranty |
Product Description
The AirPremier DWL-2200AP is an enhanced high performance 802.11g wireless Access Point with 802.3af Power over Ethernet (PoE) for use indoors. This device supports wireless networking speeds of up to 108Mbps (Turbo mode) 1, while providing seamless interoperability with 802.11b/g wireless equipment. With high data transfer rates, enhanced security, built-in bridge function and PoE remote power support, this device offers a business-class solution for a secure, high-speed wireless deployment. Up to 108Mbps Speed With transmission speeds of up to 108Mbps (Turbo mode) on the popular 2.4GHz public frequency, the DWL-2200AP is an ideal solution for bandwidth intensive WLAN application. In a typical working environment with multiple users accessing the network at the same time, the DWL-2200AP can operate at 15 times the throughput of the normal 802.11b wireless LAN equipment. PoE Facilitates Remote Installation For maximum coverage, the DWL-2200AP can be placed at out-of-the-way locations such as on a ceiling or high wall, where AC outlets are inaccessible and providing power to these locations is difficult and expensive. The DWL- 2200AP can easily obtain power from an Ethernet switch located as far as 100 meters away through the unused pairs of your existing network cable, doing away with the need to install separate power wiring. With industry standard 802.3af PoE support, the DWL-2200AP does not even require a PoE injector. Advanced Network Security The DWL-2200AP supports 64/128/152-bit WEP data encryption and WPA/WPA2 security functions. It provides the latest wireless security technologies by supporting both WPA and WPA2 Personal and Enterprise to ensure complete network protection. In addition, the DWL-2200AP comes 802.11i-ready to fully support industrial-grade wireless security. Other security features included in this Access Point are MAC Address Filtering, Disable SSID Broadcast and support for Advanced Encryption Standard (AES) data encryption. To maximize total return on investment, the DWL-2200AP can be configured to operate as an access point (AP mode), a point-to-point bridge or a point-to-multipoint bridge (WDS mode). In the WDS/Bridge mode, the DWL-2200AP communicates only with wireless bridges, without allowing for wireless clients or stations to access them. Advanced Network Management For maximum Network administrators can manage all the DWL-2200AP’s settings via its web-based configuration utility or with Telnet. For advanced network management, the administrators can use the D-View SNMP management module to configure and manage multiple access points from a single location. In addition to a streamlined management process, network administrators can also verify and conduct regular maintenance checks without wasting resources by sending personnel out to physically verify proper operation.
Key Features
D-Link AirPremier Wireless 108G Access Point. 2.4 GHz, Maximum data transfer rate: 108 Mbit/s. Security algorithms: TKIP, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK. Power over Ethernet (PoE)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link AirPremier Wireless 108G Access Point 108 Mbit/s Power over Ethernet (PoE) (DWL-2200AP) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link AirPremier Wireless 108G Access Point 108 Mbit/s Power over Ethernet (PoE) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link AirPremier Wireless 108G Access Point 108 Mbit/s Power over Ethernet (PoE) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DWL-2200AP.
