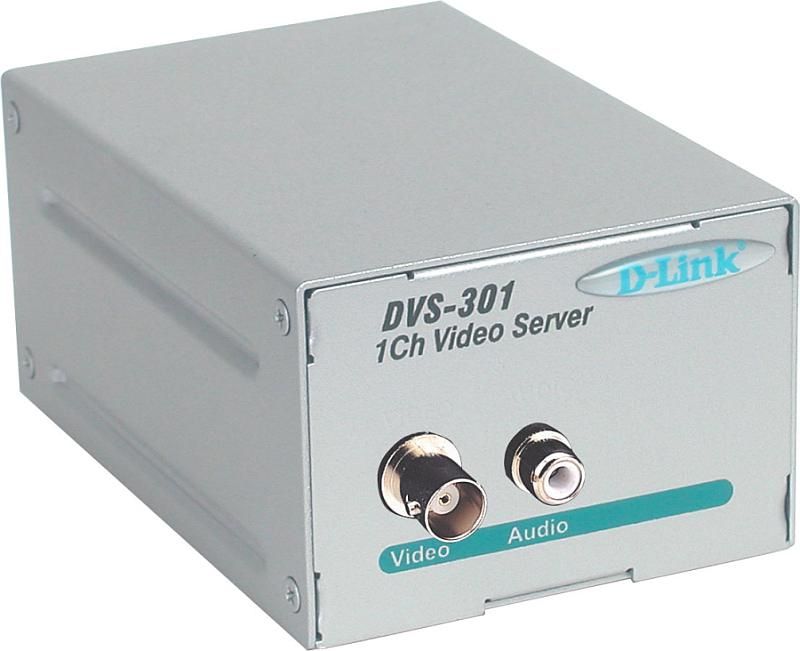

D-Link DVS-301 video servers/encoder 704 x 576 pixels 30 fps
Brand: D-Link · SKU: DVS-301 · MPN: DVS-301 · Category: Servers
D-Link DVS-301, 704 x 576 pixels, 30 fps, 704 x 480 pixels, 704 x 576 pixels, 16 MB, 2 MB. D-Link DVS-301 video servers/encoder 704 x 576 pixels 30 fps (part number DVS-301) is an enterprise servers product available from Server Tech Central. Key specifications include wi-fi No, weight 340 g, ptz control Yes, flash memory 2 MB, rs-232 ports 1, rs-485 ports 1, certification FCC, CE, CNS, led indicators LAN, Link, Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Wi-Fi | No |
|---|---|
| Weight | 340 g |
| PTZ control | Yes |
| Flash memory | 2 MB |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| Certification | FCC, CE, CNS |
| LED indicators | LAN, Link, Yes |
| BNC input ports | 1 |
| Internal memory | 16 MB |
| PAL resolutions | 704 x 576 pixels |
| NTSC resolutions | 704 x 480 pixels |
| Power consumption | 400 mA |
| Dimensions (WxDxH) | 122.9 x 72.3 x 50 mm |
| I/O terminal ports | 2 |
| Maximum frame rate | 30 fps |
| Power requirements | 100 - 240V, 50/60Hz |
| Video motion detection | Yes |
| Maximum video resolution | 704 x 576 pixels |
| Storage temperature (T-T) | -40 - 70 °C |
| Minimum system requirements | IE 4.0+ |
| Operating temperature (T-T) | 0 - 65 °C |
| Power consumption (typical) | 4 W |
| Supported network protocols | TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DHCP |
| Warranty | 3-Year Warranty |
| Weight | 340 g |
Product Description
M-JPEG 1-Channel Video Server Transform Analog Video Into Images for Live Access Over Intranet or Internet The DVS-301 is a high-performance M-JPEG video server designed for professional surveillance applications. It can network an analog camera - a cost-effective single-box solution for transmitting digital video over your company network or the Internet. Save Money & Get Benefits of Digital World You have invested time and money to install an analog surveillance system in your building, with analog cameras, multiplexers, time-lapse recorders, cabling and control room. There are drawbacks such as poor quality video, worn out tapes, video recorders that constantly need servicing, and no possibility to access live images when you are outside the building. By adding a DVS-301, you can turn your camera into a digital system and have images stored on a hard disk at a remote location for convenience and security purposes. You don't need to buy video tapes, change video tapes or service the video recorder. Digital storage also reduces the risk of image degradation and provides quick and easy search capabilities. Protect Previous Investments The DVS-301 integrates easily with your existing analog CCTV (closed circuit television) system. You can get all the digital benefits without scrapping your investment in an analog system. Remote Access The DVS-301 digitizes analog video signals and distributes digital images directly over an IP-based network, effectively turning your analog camera into a network camera and enables you to view live images from a Web browser . The DVS-301 allows you to remotely view live digital images derived from your analog cameras at any time, from any location using a networked computer. Y ou can check on alarms while on the road or from the convenience of your own home. Images from an alarm event could be easily distributed via computer networks to many people in different locations for further examination. Easy to Install & Use With the DVS-301, you can have a professional surveillance application up and running in minutes. It is easy to install. Simply plug an analog camera into the server and images can be transmitted via a LAN, DSL, or analog modem. All that is needed on the receiving end is a networked computer with a Web browser. Usually, an IP-based computer network is already in place, which saves on infrastructure costs. Connectable to Control Equipment Through a built-in RS-232 serial port, you can control equipment such as Pan/Tilt/Zoom cameras. Inputs can be used to trigger the server to start transmitting images. The DVS-301 can also be connected to special cameras such as super sensitive black/white cameras, miniature cameras or microscope cameras.
Key Features
D-Link DVS-301. Maximum video resolution: 704 x 576 pixels, Maximum frame rate: 30 fps, NTSC resolutions: 704 x 480 pixels. Internal memory: 16 MB, Flash memory: 2 MB, Minimum system requirements: IE 4.0+. LED indicators: LAN, Link, Yes, Certification: FCC, CE, CNS. Supported network protocols: TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DHCP, Copper ethernet cabling technology: 100BASE-T, 100BASE-TX, 10BASE-T. Power consumption (typical): 4 W, Power requirements: 100 - 240V, 50/60Hz, Power consumption: 400 mA
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link DVS-301 video servers/encoder 704 x 576 pixels 30 fps (DVS-301) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link DVS-301 video servers/encoder 704 x 576 pixels 30 fps includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link DVS-301 video servers/encoder 704 x 576 pixels 30 fps compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DVS-301.
