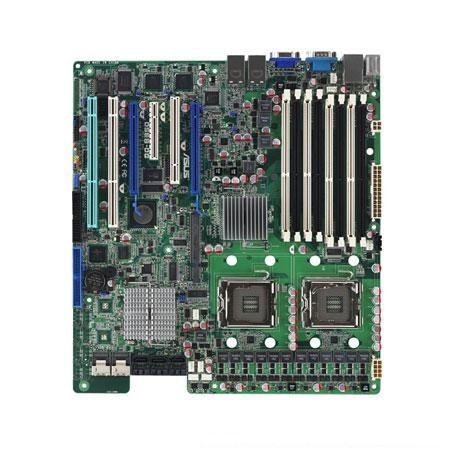

ASUS DSEB-DG/SAS motherboard Intel® 5400 LGA 771 (Socket J) SSI EEB
Brand: ASUS · SKU: DSEB-DG/SAS · MPN: DSEB-DG/SAS · Category: Components
ASUS DSEB-DG/SAS, Intel, LGA 771 (Socket J), 64 GB, 1.55 V, 0, 1, Intel® 82563EB. ASUS DSEB-DG/SAS motherboard Intel® 5400 LGA 771 (Socket J) SSI EEB (part number DSEB-DG/SAS) is an enterprise components product available from Server Tech Central. Key specifications include pci slots 1, pci-x slots 2, raid levels 0, 1, certification FCC, CFR47 Part 15, Class B, CE, EN55022 & EN55024, C-TICK, lan controller Intel® 82563EB, memory voltage 1.55 V, processor socket LGA 771 (Socket J), cpu fan connector Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| PCI slots | 1 |
|---|---|
| PCI-X slots | 2 |
| RAID levels | 0, 1 |
| Certification | FCC, CFR47 Part 15, Class B, CE, EN55022 & EN55024, C-TICK |
| LAN controller | Intel® 82563EB |
| Memory voltage | 1.55 V |
| Processor socket | LGA 771 (Socket J) |
| CPU fan connector | Yes |
| USB 2.0 connectors | 1 |
| Motherboard chipset | Intel® 5400 |
| PS/2 ports quantity | 1 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 2 |
| Serial ports quantity | 1 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 2 |
| Maximum internal memory | 64 GB |
| Motherboard form factor | SSI EEB |
| Number of SATA connectors | 6 |
| Storage temperature (T-T) | 10 - 35 °C |
| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Chassis intrusion connector | Yes |
| Operating temperature (T-T) | -40 - 70 °C |
| Warranty | 3-Year Warranty |
Product Description
ASUS new server board DSEB-DG/SAS is based on 45nm Intel® Xeon® 5400/5300/5200/5100 processor with the green design of 90%+ power efficiency. Featured with leading-edge technology including FSB 1600MHz, FB-DIMM 800MHz, PCI-Express Gen2 x16 and SAS support, the DSEB-DG/SAS is the most out-performance server board which is ideal for enterprise-class and computing demanding applications. Green Design with 90%+ Power Efficiency - Optimizes the power efficiency up to 90%+, which enables power saving of around 1.68KWh per day and 613.2KWh per year, compared to general server boards with 80% power efficiency (actual power saving also depends on loading in the system) - Being a significant reduction of the TCO (Total Cost of Ownership), especially for the enterprises and IDC deploying with numerous server systems to provide 7x24 non-stop services base on above calculation Longer Life and Higher Reliability for all Conductive Polymer Caps - All conductive polymer capacitors design provides better electronic conductivity and longer MTBF, without risk of capacitor explosion - All conductive polymer capacitors effectively reduce energy loss and has better thermal characteristics PCI-E Gen2 x16 Support & Rich Expansion Choices - DSEB-DG/SAS provides two PCI-E Gen2 x16 slots, and each supports up to 8GB/s bandwidth, which doubles the bandwidth compared to PCI-E 1.1 (the bandwidth will be suitable for high speed Infiniband connections or professional graphic cards) - One PCI-E x8 expansion slot, two PCI-X and one PCI 32bit/33MHz interface provide wide expansion choices for legacy add-on-cards Exclusive MemCoolTM Support for FBD - FB-DIMM provides high computing capability - Optional ASUS Patented MemCool Kit maximizes Fully-buffered DIMM performance by eliminating the potential risk of system memory throttling from over-temperature, and minimizes the system integration effort of SI for thermal & acoustic solution Quad Server Class LAN Improve Data Transfers - Built-in Quad-LAN with a “teaming” technology integrates four high-speed Gigabit LAN ports into a single one to provide almost four times the transferring bandwidth than ever - Provide “Fail-over” function, if one or more port fail, the networking connection will not be affected immediately - The Quad-LAN integration provides higher bandwidth compared to dual-LAN scenario - The four ports can be used in individual sub-nets to provide secure data and smooth transfers Complete RAID Data Protection for Customers - 6 SATA2 300MB/s ports from Intel® 6321ESB supports software RAID 0, 1, 10 & 5 via Intel Matrix Storage - LSI® 1068 PCI-X 8-port SAS controller supports LSI® Integrated RAID 0, 1, 1E - Optional LSI® ZCR (Zero-Channel-RAID) PCI-X card help upgrade to support hardware RAID 0, 1, 10, 5, 50
Key Features
ASUS DSEB-DG/SAS. Processor manufacturer: Intel, Processor socket: LGA 771 (Socket J). Maximum internal memory: 64 GB, Memory voltage: 1.55 V. RAID levels: 0, 1. LAN controller: Intel® 82563EB. Motherboard form factor: SSI EEB, Motherboard chipset: Intel® 5400, Certification: FCC, CFR47 Part 15, Class B, CE, EN55022 & EN55024, C-TICK
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS DSEB-DG/SAS motherboard Intel® 5400 LGA 771 (Socket J) SSI EEB (DSEB-DG/SAS) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS DSEB-DG/SAS motherboard Intel® 5400 LGA 771 (Socket J) SSI EEB includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS DSEB-DG/SAS motherboard Intel® 5400 LGA 771 (Socket J) SSI EEB compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DSEB-DG/SAS.
