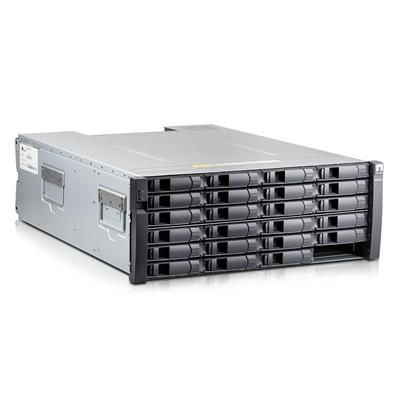

NetApp DS4243 Disk Shelf
Brand: NetApp · SKU: DS4243 · MPN: DS4243 · Category: Components
The NetApp DS4243 is a rack-mountable 4U enclosure that functions as a disk shelf expander. It features 24 hot-swappable 3.5″ drive bays and includes a built-in SAS→SATA expander to expose all bays over a single 4-lane SAS port. It supports a mix of high-capacity/high-performance SAS drives, high-capacity SATA drives, or SSDs. Configurations may ship with two or four redundant, hot-pluggable 580W AC power supplies, depending on the type of disk drives installed. It utilizes IOM3 modules for 3Gb/s SAS connectivity, though IOM6 (6Gb/s) modules are sometimes mentioned as compatible/supported in some configurations. It can be daisy-chained up to 10 shelves. Configurations are often sold populated with specific drives, such as twenty-four 1TB 7.2K SATA 6Gbps HDDs (Part Number X302A-R5).
Specifications
| Drive Bays | 24 x 3.5" LFF hot-swap bays |
|---|---|
| Form Factor | 4U rackmount |
| I/O Modules | Dual IOM3 modules (3Gb/s SAS) - IOM6 (6Gb/s) sometimes mentioned |
| Power Supplies | Redundant, hot-pluggable; up to 4x integrated 580W AC PSUs |
| SAS Connectivity | 4-lane SAS (SFF-8436), QSFP+ cables required |
| Maximum Daisy-Chain | Up to 10 shelves |
| Supported Drive Types | 3.5" SAS HDD (up to 3TB), 3.5" SATA HDD (up to 3TB), 3.5" SSD |
| Warranty | Varies, often sold with a 1-Year Parts Replacement Warranty when populated with drives by resellers. |
| Weight | 45 lbs empty |
| Dimensions | 7.00" Height x 19.00" Width x 24.00" Depth (4U Form Factor) |
Key Features
The NetApp DS4243 is a 4U disk shelf designed for expanding storage capacity on NetApp FAS/V-Series systems. It supports up to 24 3.5-inch SAS or SATA drives, including HDDs and SSDs. It features an integrated SAS to SATA expander, exposing all drives over a single SAS port. It requires Data ONTAP version 7.3.3P2 or later for standard HDDs, or 8.0.1 or later for SSDs.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this NetApp DS4243 Disk Shelf (DS4243) is 100% genuine NetApp hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This NetApp DS4243 Disk Shelf includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the NetApp DS4243 Disk Shelf compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DS4243.
