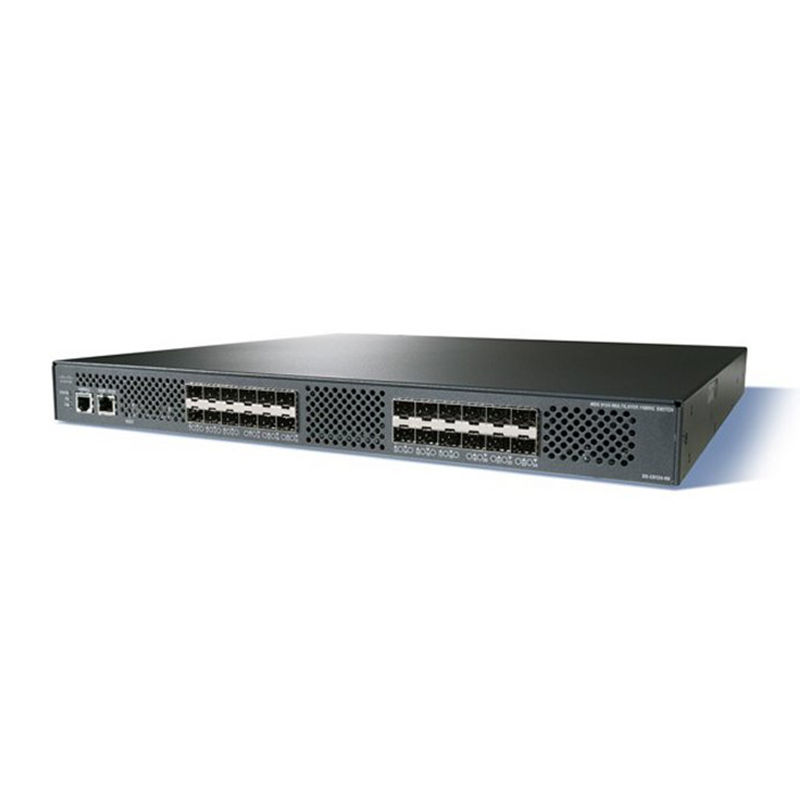

DS-C9124-K9, Cisco MDS 9124 Multilayer Switch, 24x8G FC, 2U, Fibre Channel
SKU: DS-C9124-K9 · MPN: DS-C9124-K9 · Category: Networking
Request for Quote
In Stock • 10 units
Cisco MDS 9124 24-Port Multilayer Fabric Switch
Specifications
| Power | ● 80 Plus Platinum certified power supplies ● Power supply options ◦ 500W AC in base model, port-side exhaust variant (2 per switch) ◦ 500W AC in base model, port-side intake variant (2 per switch) ◦ 1200W AC/ HVAC/ HVDC in base model, Bidirectional airflow (2 per switch) ● Power cord ◦ Notched C15 socket connector connecting to C16 plug on the power supply receptacle for 500W Power Supply ◦ Standard CAB-HVAC-C14-2M IEC C14 to Saf-d-grid connector on the power supply receptacle for 1200W Power Supply ◦ Check Ordering Information table in this document for power cords specific to regions ● 500W PSU AC input: 100 to 240 VAC (10% range) ● 1200W PSU AC input: 90V to 305V ● 1200W PSU DC input: 192V to 400V ● Frequency: 50 to 60 Hz (nominal) ● Typical power consumption ◦ 94W for 24-Port switch in idle status with no optics modules ◦ 113W for 24-Port switch with 8 64G SW optics modules under 50% line rate ◦ 146W for 24-Port switch with 24 64G SW optics modules under 50% line rate ● Airflow ◦ Back to front (toward ports) using port-side exhaust fans ◦ Front to back (inward from ports) using port-side intake fans ◦ 50 Cubic Feet per Minute (CFM) through system fan assembly at 77°F (25°C) ● 100 CFM maximum |
|---|---|
| Security | ● VSAN fabric isolation ● Intelligent packet inspection at port level ● Hardware zoning by Access Control Lists (ACLs) ● Fibre Channel Security Protocol (FC-SP) switch-to-switch authentication ● FC-SP host-to-switch authentication ● Role-Based Access Control (RBAC) using RADIUS, TACACS+, or Lightweight Directory Access Protocol (LDAP) authentication, authorization, and accounting (AAA) functions ● Secure FTP (SFTP) ● Secure Shell Protocol Version 2 (SSHv2) ● Simple Network Management Protocol Version 3 (SNMPv3) implementing Advanced Encryption Standard (AES) ● Control-plane security ● Cisco TrustSec ® payload encryption ● Secure Boot and Anti-counterfeit technology |
| Diagnostics | ● Power-On-Self-Test (POST) diagnostics ● Online Health Management System (OHMS) diagnostics ● Internal loopbacks ● SPAN ● Fibre Channel traceroute ● Fibre Channel ping ● Fibre Channel debug ● Cisco Fabric Analyzer ● Syslog ● Port-level statistics ● Link diagnostics (E-port and F-port links) ● Read Diagnostic Parameter |
| Performance | ● Port speed: 8-, 16-, 32 and 64-Gbps autosensing with 64 Gbps of dedicated bandwidth per port ● Aggregate bandwidth of 1.5-Tbps end-to-end full duplex ● Buffer credits: Up to 24,000 for a group of 24 ports, with a default of 1000 buffer credits per port and a maximum of 16,000 buffer credits for a single port in the group ● Port groups: 1 port group of 24 ports ● Port channel: Up to 24 load-balanced physical links grouped in one port channel |
| Serviceability | ● Configuration file management ● Call Home ● Port beaconing ● Link cable beacon ● System LEDs ● SNMP traps for alerts |
| Fabric services | ● Name server ● Registered State Change Notification (RSCN) ● Login services ● Fabric Configuration Server (FCS) ● Broadcast ● In-order delivery |
| Temperature range | ● Temperature, ambient operating: ◦ 32 to 104°F (0 to 40°C) with port-side exhaust and intake airflow variants ● Temperature, ambient nonoperating and storage: –40° to 158°F (–40° to 70°C) ● Relative humidity, ambient (noncondensing) operating: 10% to 90% ● Relative humidity, ambient (noncondensing) nonoperating and storage: 10% to 95% ● Altitude, operating: –197 to 6500 ft (–60 to 2000m) |
| Advanced functions | ● VSAN ● IVR ● NPV ● Port Channel with multipath load balancing ● Flow- and zone-based QoS |
| Network management | ● Management access through the following out-of-band Ethernet ports ◦ mgmt0: 10/100/1000BASE-T port ● RS-232 serial console port ● USB power-on auto-provision port ● Access protocols ● Command-Line Interface (CLI) using the console and Ethernet port ● SNMPv3 using the Ethernet port and in-band IP over Fibre Channel access ● Storage Networking Industry Association (SNIA) Storage Management Initiative Specification (SMI-S) ● NX-API for HTTP/HTTPS full programmability ● Distributed device alias service ● Network security ● Per-VSAN RBAC using LDAP, RADIUS, and TACACS+-based AAA functions ● Simple File Transfer Protocol (SFTP) ● SSHv2 implementing AES ● SNMPv3 implementing AES |
| Fibre Channel ports | ● Fixed-switch form factor with 24 SFP+ ports base |
| Product compatibility | Cisco MDS 9000 Family |
| Programming interfaces | ● Scriptable CLI ● Cisco DCNM/NDFC web services API ● NX-API HTTP/HTTPS interfaces ● Onboard Python interpreter ● Cisco Embedded Event Manager (EEM) ● Cisco NX-OS Software scheduler |
| Software compatibility | Cisco MDS 9000 NX-OS Release 9.3(1) or later |
| Approvals and compliance | ● Safety compliance ● CE Marking ● UL 60950 ● CAN/CSA-C22.2 No. 60950 ● EN 60950 ● IEC 60950 ● TS 001 ● AS/NZS 3260 ● IEC60825 ● EN60825 ● 21 CFR 1040 ● EMC compliance ● FCC Part 15 (CFR 47) Class A ● ICES-003 Class A ● EN 55022 Class A ● CISPR 22 Class A ● AS/NZS 3548 Class A ● VCCI Class A ● EN 55024 ● EN 50082-1 ● EN 61000-6-1 ● EN 61000-3-2 ● EN 61000-3-3 |
| Reliability and availability | ● Cisco In-Service Software Upgrade (ISSU) ● Hot-swappable, dual redundant power supplies ● Hot-swappable fan tray with switch integrated temperature and power management ● Hot-swappable SFP+ optics ● Stateful process restart ● Any port configuration for port channels ● Fabric-based multipathing ● Per-VSAN fabric services ● Port tracking ● FEC with HBA ports ● Buffer-to-buffer state change notification with HBA ports |
| Physical dimensions (H x W x D) and weight | ● 1 Rack Unit (1RU) (1.72 x 17.299 x 18 in. [4.37 x 43.94 x 45.72 cm]) excluding Power Supply Unit (PSU) and fan-tray handles ● 18.73 lb. (8.5 kg) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this DS-C9124-K9, Cisco MDS 9124 Multilayer Switch, 24x8G FC, 2U, Fibre Channel (DS-C9124-K9) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This DS-C9124-K9, Cisco MDS 9124 Multilayer Switch, 24x8G FC, 2U, Fibre Channel includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the DS-C9124-K9, Cisco MDS 9124 Multilayer Switch, 24x8G FC, 2U, Fibre Channel compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DS-C9124-K9.
