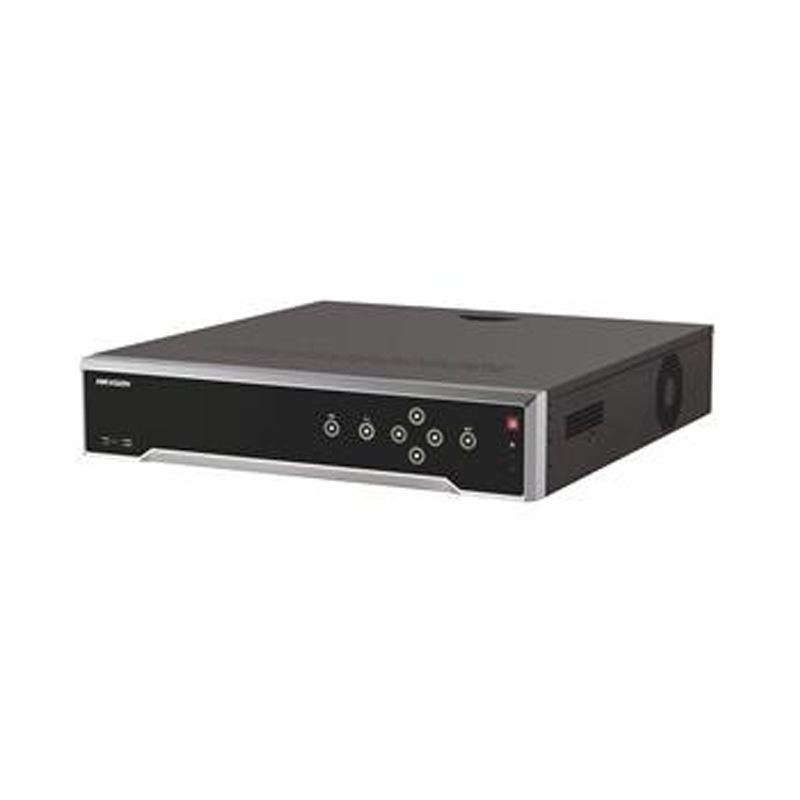

DS-7716NI-K4, Hikvision DS-7700 NVR, 160 Mbps Bandwidth/4-ch 4MP@30fps/4 x 10TB SATA
SKU: DS-7716NI-K4 · MPN: DS-7716NI-K4 · Category: Security
160/160 Mbps In/Out Bandwidth, 1080p@30fps/ 4-ch 4MP@30fps/ 2-ch 4K@25fps Max Resolution, Video output: VGA & HDMI + Audio I/O: 1 In/ 1 Out + Alarm I/O: 16 In/4 Out, 4 x 10TB SATA
Specifications
| General | Power supply: 100 to 240 VAC Power: ≤20 W Consumption (without hard disk): ≤20 W Working temperature: -10 to +55ºC (14 to 131ºF) Working humidity: 10 to 90 % Chassis: 19-inch rack-mounted 1.5U chassis Dimensions (W × D × H): 445 × 390 ×70 mm ( 17.5"× 15.3" × 2.8") |
|---|---|
| Network | Incoming bandwidth: 160 Mbps Outgoing bandwidth: 160 Mbps Remote connection: 128 |
| Decoding | Live view / Playback resolution: 8MP / 6MP / 5MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF Capability: 8-ch@1080P |
| Hard disk | SATA: 4 SATA interfaces for 4HDDs Capacity: Up to 6TB capacity for each HDD |
| Video/Audio input | IP video input: 16-ch Two-way audio: 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| External interface | Network interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces Serial interface: RS-232; RS-485; USB interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 Alarm in/out: 16/4 |
| Video/Audio output | Recording resolution: 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF HDMI output resolution: 1-ch, resolution: 4K (3840*2160)/60Hz, 4K (3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz VGA output resolution: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz Audio output: 1-ch, RCA (Linear, 1kΩ) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this DS-7716NI-K4, Hikvision DS-7700 NVR, 160 Mbps Bandwidth/4-ch 4MP@30fps/4 x 10TB SATA (DS-7716NI-K4) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This DS-7716NI-K4, Hikvision DS-7700 NVR, 160 Mbps Bandwidth/4-ch 4MP@30fps/4 x 10TB SATA includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the DS-7716NI-K4, Hikvision DS-7700 NVR, 160 Mbps Bandwidth/4-ch 4MP@30fps/4 x 10TB SATA compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DS-7716NI-K4.
