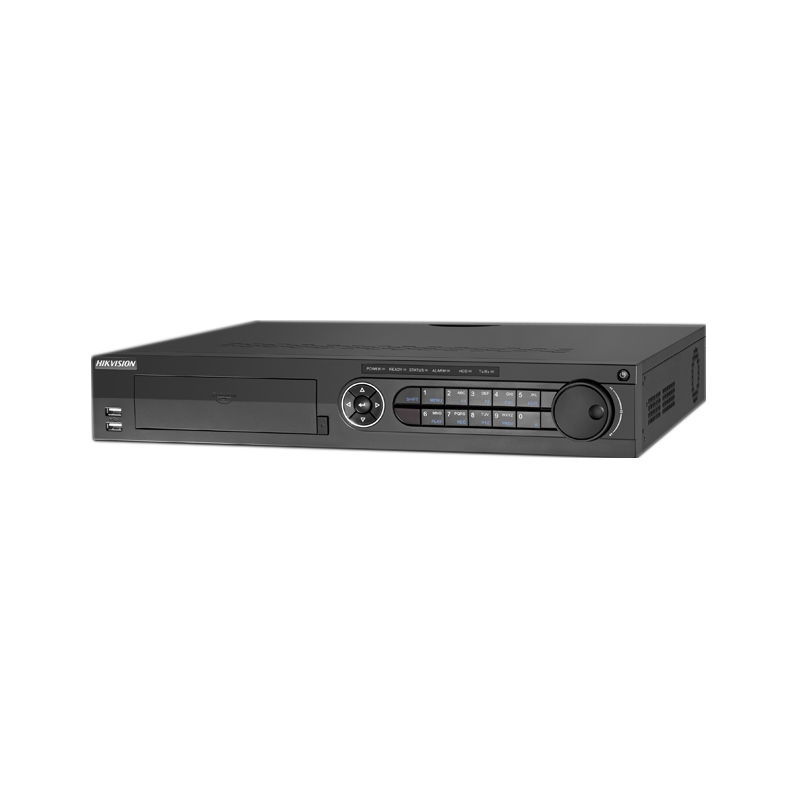

DS-7316HQHI-K4, Hikvision DS-7316HQHI Series DVR, 16-ch 1080p Lite, 24 IP Cam Input, 4x10TB SATA

SKU: DS-7316HQHI-K4 · MPN: DS-7316HQHI-K4 · Category: Components

DS-7316HQHI-K4, Hikvision DS-7316HQHI Series DVR, 16-ch 1080p Lite, 24 IP Cam Input, 4x10TB SATA
$329.36
In Stock • 10 units

16-ch 1080p Lite@25fps(Real Time), 3MP/1080p@15fps (ch 1-4 only), 1080p@15fps (ch 5-16 only), Video output: VGA & HDMI Audio I/O: 4 In/ 2 Out Alarm I/O: 16 In/ 4 Out, 24 IP Cam Input, 4 x 10TB SATA

View Components Products

Specifications

CapacityUp to 10 TB capacity for each disk
Dimensions445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)
Frame RateMain stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Alarm Input16-ch
Audio Input4-ch
CVBS Output1-ch, BNC(1.0Vp-p,75Ω), resolution:PAL:704x576, NTSC:704x480
Consumption≤ 55W(without hard disks)
Stream TypeVideo/Video & Audio
Alarm Output4-ch
Audio Output1-ch RCA(Linear, 1kΩ)
Power Supply100 to 240 VAC
Two-way Audio1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
USB Interface2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel
Interface Type4 SATA Interfaces
Video Bit Rate32 Kbps-6 Mbps
HDMI/VGA OutputHDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
Working Humidity10% ~ 90%
Audio CompressionG.711u
Network Interface1; 10M / 100M / 1000M self-adaptive Ethernet interface
Network protocolsTCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Remote connections128
Working Temperature-10 ℃ ~+55 ℃ (14 ℉ ~ 131 ℉)
Recording resolutionWhen 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this DS-7316HQHI-K4, Hikvision DS-7316HQHI Series DVR, 16-ch 1080p Lite, 24 IP Cam Input, 4x10TB SATA (DS-7316HQHI-K4) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This DS-7316HQHI-K4, Hikvision DS-7316HQHI Series DVR, 16-ch 1080p Lite, 24 IP Cam Input, 4x10TB SATA includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the DS-7316HQHI-K4, Hikvision DS-7316HQHI Series DVR, 16-ch 1080p Lite, 24 IP Cam Input, 4x10TB SATA compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DS-7316HQHI-K4.
