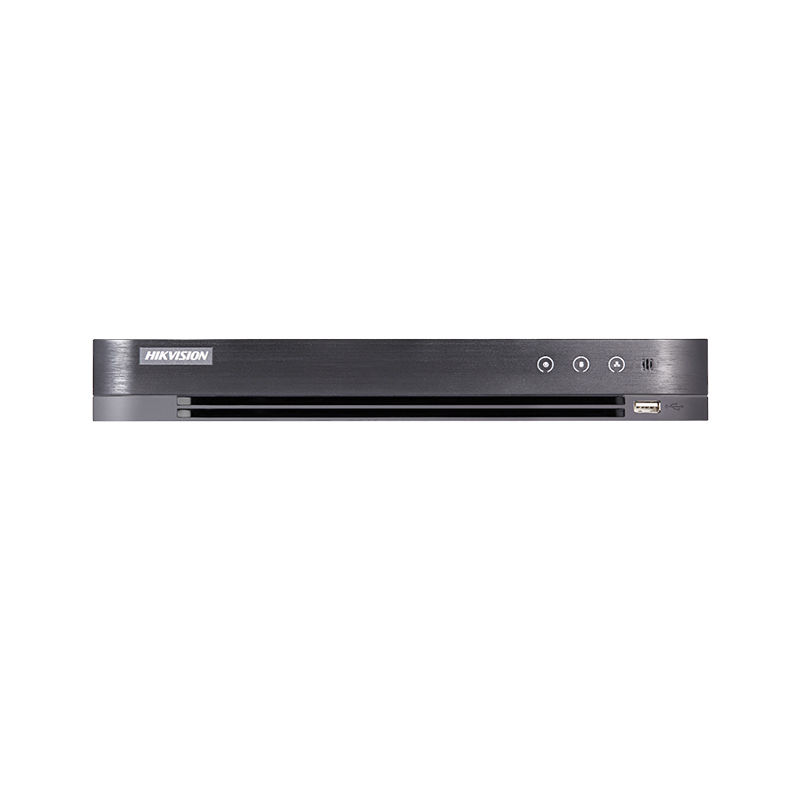

DS-7208HQHI-K1, Hikvision DS-7200 Series DVR, 8-ch 1080p, 1U, H.265
SKU: DS-7208HQHI-K1 · MPN: DS-7208HQHI-K1 · Category: Components
Specifications
| SATA | 1 SATA interface |
|---|---|
| Model | DS-7208HQHI-K1 |
| Capacity | Up to 10 TB capacity for each disk |
| AHD Input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| Frame Rate | Main stream:,When 1080p Lite mode not enabled:,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access:,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled:,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream:,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),Sub-stream:,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 K Ω ) |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω ), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Dual Stream | Support |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDTVI Input | 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1., |
| Stream Type | Video, Video & Audio |
| Alarm In/Out | N/A |
| Audio Output | 1-ch, RCA (Linear, 1 K Ω ) |
| Power Supply | 12 VDC |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 K Ω ) (using the first audio input) |
| USB Interface | 2 × USB 2.0 |
| Audio Bit Rate | 64 Kbps |
| IP Video Input | 4-ch (up to 12-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| VGA/HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Serial Interface | RS-485 (half-duplex) |
| Working Humidity | 10 to 90 % |
| Audio Compression | G.711u |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this DS-7208HQHI-K1, Hikvision DS-7200 Series DVR, 8-ch 1080p, 1U, H.265 (DS-7208HQHI-K1) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This DS-7208HQHI-K1, Hikvision DS-7200 Series DVR, 8-ch 1080p, 1U, H.265 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the DS-7208HQHI-K1, Hikvision DS-7200 Series DVR, 8-ch 1080p, 1U, H.265 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DS-7208HQHI-K1.
