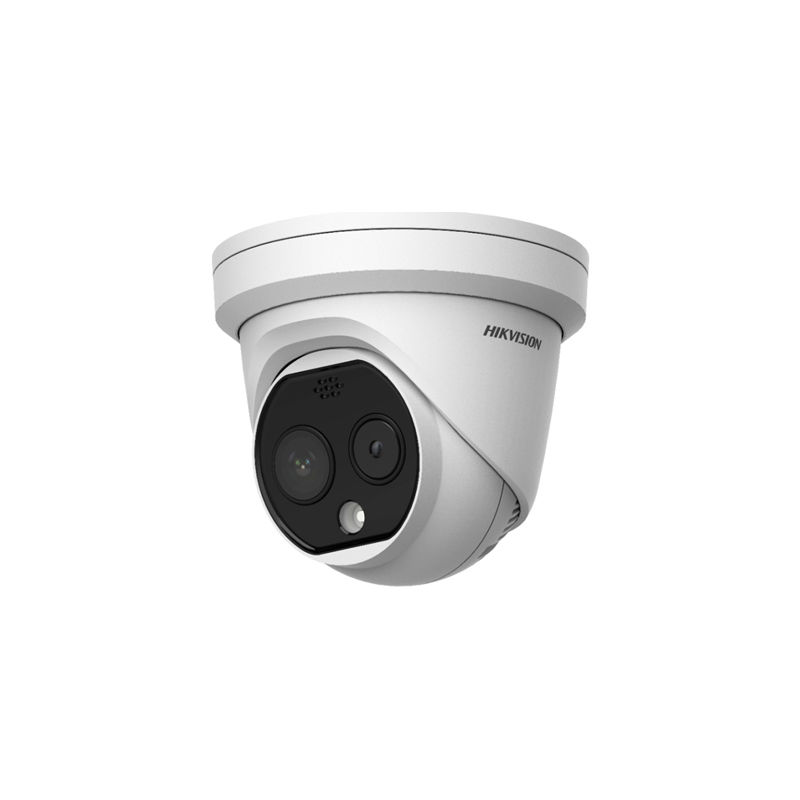

DS-2TD1217B-3/PA, Hikvision Thermographic Turret Camera, Body Temp Measurement/Infrared Sensor/High Accuracy
SKU: DS-2TD1217B-3/PA · MPN: DS-2TD1217B-3/PA · Category: Components
Hikvision Thermographic Turret Body Temperature Measurement Camera
Specifications
| WDR | 120 dB |
|---|---|
| IFOV | 5.48 mrad |
| NETD | Less than 40 mK (25°C), F# = 1.1 |
| Aperture | F1.1 |
| Sub-Stream | Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144) |
| Day & Night | IR cut filter with auto switch |
| IR Distance | Up to 15 m |
| Main Stream | Visible Light: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720) |
| Field of View | 84° × 44.8°(H × V) |
| Shutter Speed | 1s to 1/100,000s |
| Pixel Interval | 17 μm |
| Max. Resolution | 160 × 120 (the resolution of output image is 320 × 240) |
| Min. Illumination | Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON) |
| Response Waveband | 8 μm to 14 μm |
| Temperature Range | 30 °C to +45 °C |
| Video Compression | H.265/H.264/MJPEG |
| Picture in Picture | Combines details of thermal and optical image PIP, overlay thermal image on optical image |
| Lens (Focal Length) | 4 mm |
| Temperature Accuracy | ± 0.5 °C |
| IR Intensity and Angle | Automatically adjusted |
| Min. Focusing Distance | 0.2 m |
| Temperature Measurement | 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line). |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this DS-2TD1217B-3/PA, Hikvision Thermographic Turret Camera, Body Temp Measurement/Infrared Sensor/High Accuracy (DS-2TD1217B-3/PA) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This DS-2TD1217B-3/PA, Hikvision Thermographic Turret Camera, Body Temp Measurement/Infrared Sensor/High Accuracy includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the DS-2TD1217B-3/PA, Hikvision Thermographic Turret Camera, Body Temp Measurement/Infrared Sensor/High Accuracy compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DS-2TD1217B-3/PA.
