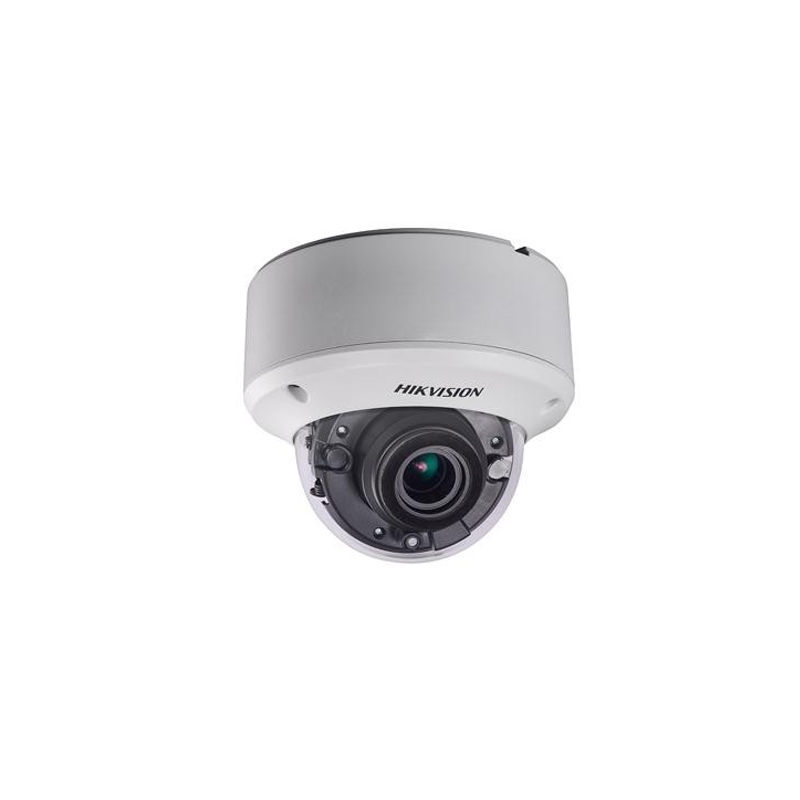

DS-2CE56D8T-AVPIT3Z, Hikvision D8T Series Camera, TVI Only/120dB WDR/2.8-12mm VF Lens
SKU: DS-2CE56D8T-AVPIT3Z · MPN: DS-2CE56D8T-AVPIT3Z · Category: Components
D8T_TVI_1080p: TVI Only, EXIR, 120dB WDR, 3D DNR, Motion Detection, Privacy Mask, IP67, IK10 protection, Motorized VF 2.8-12mm, WDR + 40m IR Distance, 12VDC /24VAC power supply
Specifications
| AGC | Support |
|---|---|
| Lens | 2.8 mm to 12 mm motorized vari-focal lens |
| Function | Brightness, Sharpness, Mirror, Smart IR |
| IR Range | Up to 40m |
| Language | English/Chinese |
| Dimension | Φ 145.2 mm × 124.1 mm (Φ 5.72" × 4.89" ) |
| Day& Night | IR cut filter with auto switch |
| Lens Mount | φ14 |
| Up the Coax | Support |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Signal System | PAL/NTSC |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| Adjustment Range | Pan: 0° to 340°, Tilt:0° to 75°, Rotate: 0° to 355° |
| Effective Pixels | 1920(H)*1080(V) |
| Video Frame Rate | 1080p@25fps/1080p@30fps |
| Min. Illumination | Color: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Power Consumption | Max. 7W |
| Wide Dynamic Range | 75dB |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this DS-2CE56D8T-AVPIT3Z, Hikvision D8T Series Camera, TVI Only/120dB WDR/2.8-12mm VF Lens (DS-2CE56D8T-AVPIT3Z) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This DS-2CE56D8T-AVPIT3Z, Hikvision D8T Series Camera, TVI Only/120dB WDR/2.8-12mm VF Lens includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the DS-2CE56D8T-AVPIT3Z, Hikvision D8T Series Camera, TVI Only/120dB WDR/2.8-12mm VF Lens compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DS-2CE56D8T-AVPIT3Z.
