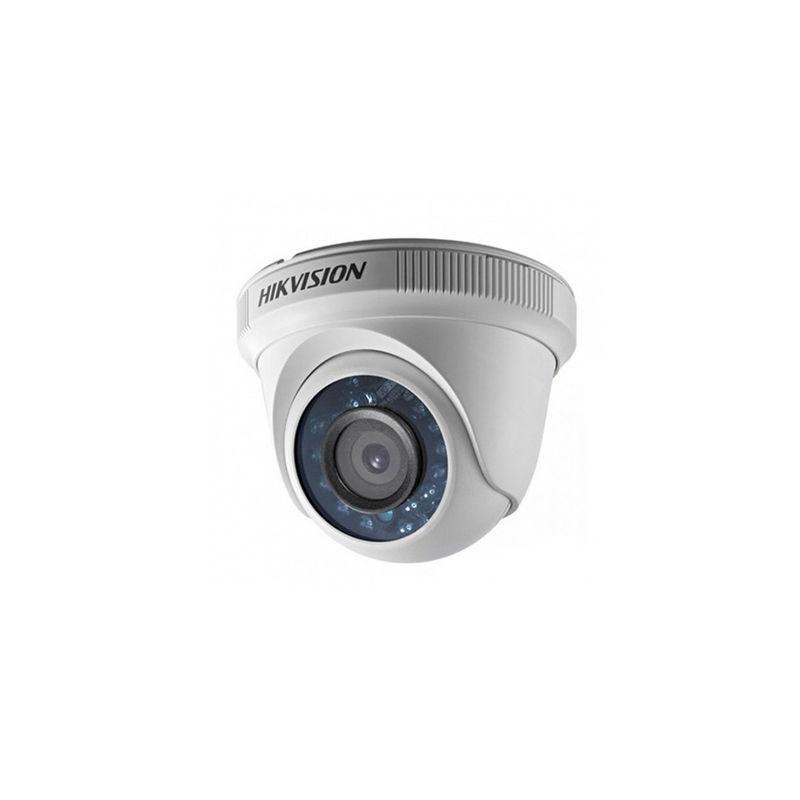

DS-2CE56C2T-IR, Hikvision C2T Series Camera, 1/3" CMOS/720p TVI/20m IR Distance
SKU: DS-2CE56C2T-IR · MPN: DS-2CE56C2T-IR · Category: Components
C2T_TVI_720p: TVI Only, 1/3" CMOS, Smart IR, IP66 protection, 2.8/ 3.6/ 6mm Lens, ICR + 20m IR Distance+ 24pcs IR LEDs, 12 VDC power supply
Specifications
| Lens | 3.6mm (2.8mm, 6mm optional) Angle of View: 78°(3.6mm), 97.3°(2.8mm), 51.2°(6mm) |
|---|---|
| IR Range | Up to 20m |
| Dimension | Φ89.5 × 69.8 mm(Φ3.52” × 2.75”) |
| S/N Ratio | More than 62 dB |
| Day& Night | IR cut filter with auto switch |
| Lens Mount | M12 |
| Power Supply | 12 VDC±15% |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Signal System | PAL/NTSC |
| Weather Proof | IP66 |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| Adjustment Range | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
| Effective Pixels | 1280(H)x960(V) |
| Video Frame Rate | 720p@25fps/720p@30fps |
| Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Power Consumption | Max. 4W |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this DS-2CE56C2T-IR, Hikvision C2T Series Camera, 1/3" CMOS/720p TVI/20m IR Distance (DS-2CE56C2T-IR) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This DS-2CE56C2T-IR, Hikvision C2T Series Camera, 1/3" CMOS/720p TVI/20m IR Distance includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the DS-2CE56C2T-IR, Hikvision C2T Series Camera, 1/3" CMOS/720p TVI/20m IR Distance compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DS-2CE56C2T-IR.
