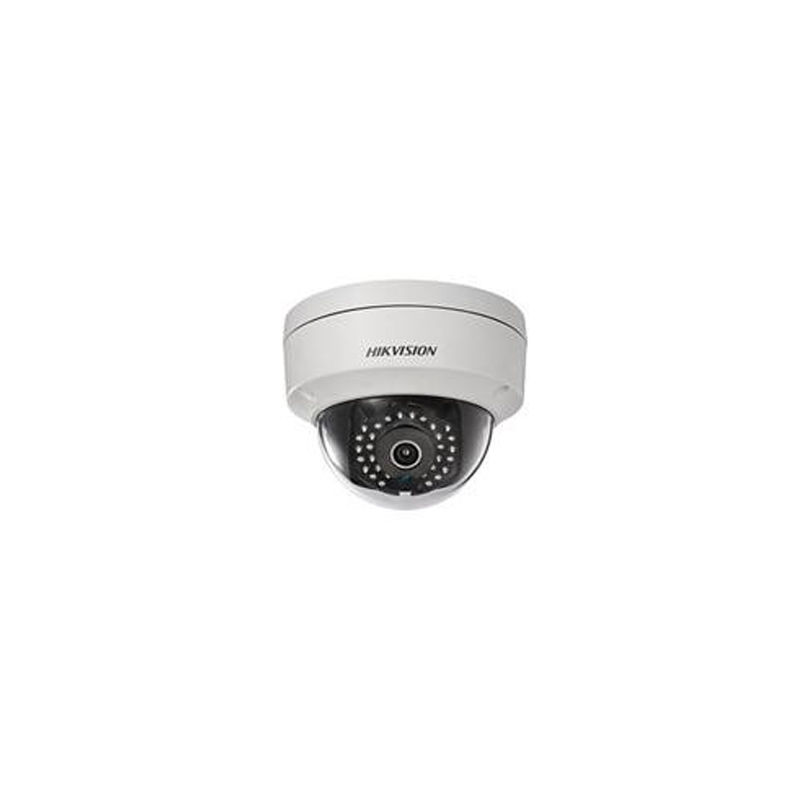

DS-2CD2555FWD-IWS, Hikvision Network Camera, 5MP, H.265+, IP66/IK08
SKU: DS-2CD2555FWD-IWS · MPN: DS-2CD2555FWD-IWS · Category: Security
5MP Max Resolution, H.265+ Codec, IP66, IK08 Protection, White- 2.8/4/6mm fixed lens, 1/2.9" Progressive Scan CMOS; Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR; VCA functions; 3 streams; 3D DNR; BLC/HLC; ICR; EXIR, up to 10m; DC12V&PoE; Built-in micro SD/SDHC/SDXC slot; HIK-Connect cloud service
Specifications
| ROI | Support 1 fixed region for main stream and sub-stream separately |
|---|---|
| Lens | 2.8 mm: Horizontal field of view: 97°, Vertical field of view: 54°, Diagonal field of view: 113° 4 mm: Horizontal field of view: 78°, Vertical field of view: 42°, Diagonal field of view: 92° 6 mm: Horizontal field of view: 60°, Vertical field of view: 33°, Diagonal field of view: 71° |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
| Audio | 2 Inputs: line in or mic in (built-in microphone), 1 output: line out, mono sound, terminal block |
| Focus | Fixed |
| IR Range | Up to 10m |
| Protocols | 802.11b: DQPSK, DBPSK, CCK 802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK |
| Day& Night | IR cut filter with auto switch |
| Dimensions | Φ110 mm × 56.4 mm (Φ4.33" × 2.22") |
| Frame Rate | 50Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Lens Mount | M12 |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Recognition | Face Detection |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| Reset Button | Yes |
| Shutter time | 1/3 s to 1/100,000 s |
| Slow shutter | Support |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) |
| Signal System | PAL/NTSC |
| Weather Proof | IP66 |
| Audio bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Object Removal | Objects removed from the pre-defined region, such as the exhibits on display. |
| Triple Streams | Yes |
| Video bit rate | 32Kbps~16Mbps |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this DS-2CD2555FWD-IWS, Hikvision Network Camera, 5MP, H.265+, IP66/IK08 (DS-2CD2555FWD-IWS) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This DS-2CD2555FWD-IWS, Hikvision Network Camera, 5MP, H.265+, IP66/IK08 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the DS-2CD2555FWD-IWS, Hikvision Network Camera, 5MP, H.265+, IP66/IK08 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DS-2CD2555FWD-IWS.
