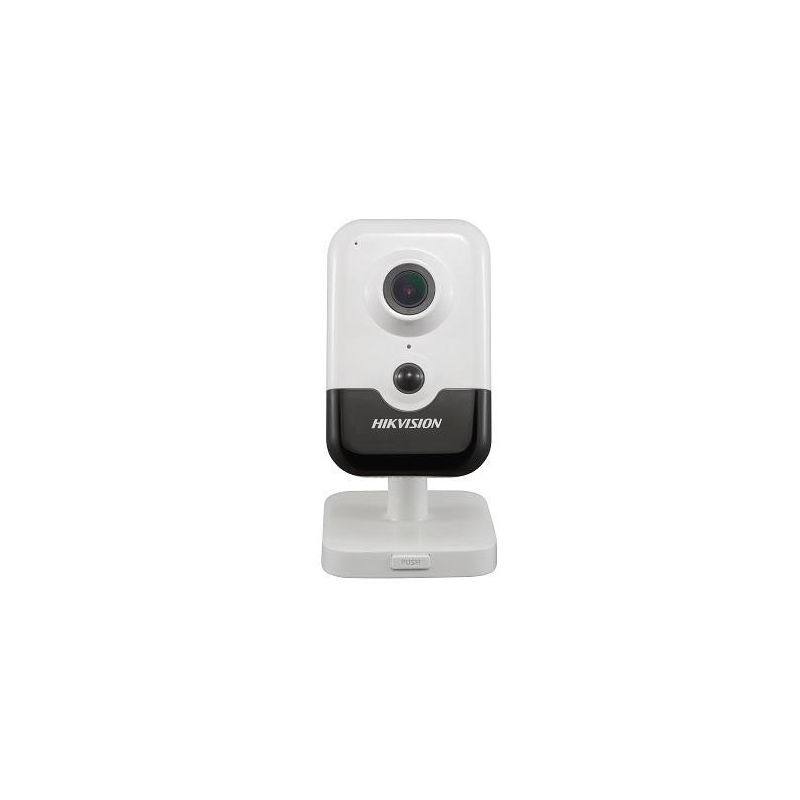

DS-2CD2423G0-IW, Hikvision Cube Camera, 2MP Max Resolution/H.265+/120dB WDR
SKU: DS-2CD2423G0-IW · MPN: DS-2CD2423G0-IW · Category: Components
2MP Max Resolution, H.265+ Codec, EXIR Cube, Indoor Protection, 2.8/4mm fixed lens, 120dB WDR, Line crossing detection, Intrusion detection + Face detection
Specifications
| PIR | 10m |
|---|---|
| ROI | Support 1 fixed region for main stream and sub-stream separately |
| Lens | 2.8 mm: horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° 4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102° |
| Audio | 1 built-in mic, 1 built-in speaker, mono sound |
| Focus | Fixed |
| IR Range | Up to 10m |
| Security | WPA, WPA2 |
| Protocols | 802.11b: DQPSK, DBPSK, CCK 802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK |
| Day& Night | IR Cut Filter |
| Dimensions | 102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3") |
| Frame Rate | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Lens Mount | M12 |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Recognition | Face Detection |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| Reset Button | Yes |
| Shutter time | 1/3 s to 1/100,000 s |
| Slow shutter | Support |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Signal System | PAL/NTSC |
| Audio bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Triple Streams | Yes |
| Video bit rate | 256Kbps~16Mbps |
| Warranty | 3-Year Warranty |
