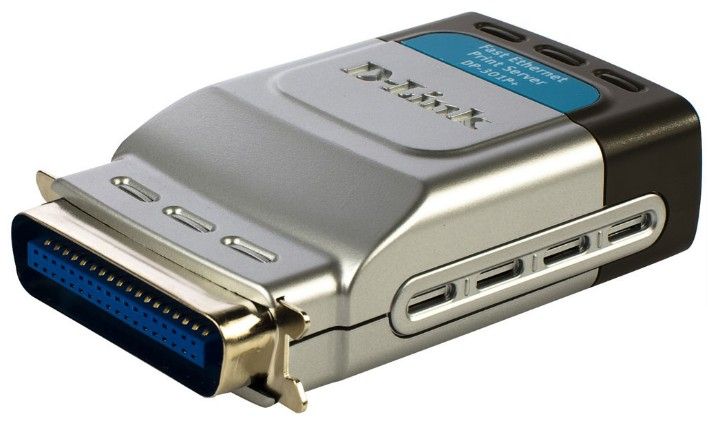

D-Link DP-301P+ print server Ethernet LAN Grey
Brand: D-Link · SKU: DP-301PPLUS · MPN: DP-301PPLUS · Category: Servers
D-Link DP-301P+, Grey, Power, 8 MB, 2 MB, Ethernet LAN, 10,100 Mbit/s. D-Link DP-301P+ print server Ethernet LAN Grey (part number DP-301PPLUS) is an enterprise servers product available from Server Tech Central. Key specifications include depth 52.6 mm, width 85.6 mm, height 25.9 mm, safety UL, LVD, internal No, dc-in jack Yes, user guide Yes, flash memory 2 MB. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 52.6 mm |
|---|---|
| Width | 85.6 mm |
| Height | 25.9 mm |
| Safety | UL, LVD |
| Internal | No |
| DC-in jack | Yes |
| User guide | Yes |
| Flash memory | 2 MB |
| Certification | FCC B, CE B, C-Tick |
| LED indicators | Power |
| Product colour | Grey |
| Internal memory | 8 MB |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Cabling technology | 10/100Base-T(X) |
| External power adapter | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Network connection type | Ethernet LAN |
| Parallel ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Operating temperature (T-T) | 0 - 50 °C |
| Supported network protocols | TCP/IP, NetBEUI, AppleTalk, LPR, SMB, IPP |
| Operating relative humidity (H-H) | 5 - 95% |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Warranty | 3-Year Warranty |
| Dimensions | 85.6 mm x 52.6 mm x 25.9 mm |
Product Description
Fast Ethernet Pocket Print Server D-Link's new Fast Ethernet print server is a compact device that attaches to a parallel printer. This device permits the printer to print files from a large number of users connected over a Fast Ethernet network. Designed to work with both PC and Macintosh, this pocket-sized device saves users cost by doing away with the need to equip every workstation with a dedicated printer. Multiple computers can share a single printer; the print server queues users print files, allowing the printer to print them out in an orderly manner. Through the DP-301P+, users connected over a network who access the Internet, run Windows 95, 98, 2000 or NT, or run Unix, Linux or MacOS can print files transparently from the shared printer. At one end of the DP-301P+ is a 36-pin high-speed Centronics parallel port that plugs directly to the printer without any need for printer cable. On the other end of the DP-301P+ is a 10/100Mbps dual speed LAN port that connects to either an Ethernet or Fast Ethernet network. This LAN port auto-detects the speed of the network (10Mbps or 100Mbps) and adjusts itself accordingly. This single-port print server is cost-effective and most suitable for a SOHO network. However, large workgroups with printers spread around in different locations can also benefit by setting up multiple DP-301P+ print servers. Versatile Administrative Program The DP-301P+ is easily configurable using any Internet web browser or a simple-to-operate GUI under Windows. Telnet support means that the administrator can also configure and maintain the print server from any station on a Unix or TCP/IP network High-speed Printer Port The print server's printer port uses the latest IEEE 1284 standard. This high-speed port, coupled with a large built-in RAM buffer, allows for fast printing and prevents congestion of print files on the network. In addition, the DP-301P+ supports HP's directional PJL protocol, allowing two-way communication between a management station and PJL-supported printers such as high-end HP laser printers. Users can consequently see printer status such as out of paper, low tone and paper jam from a remote place without having to walk over to the printer.
Key Features
D-Link DP-301P+. Product colour: Grey, LED indicators: Power. Internal memory: 8 MB, Flash memory: 2 MB. Network connection type: Ethernet LAN, Ethernet LAN data rates: 10,100 Mbit/s, Copper ethernet cabling technology: 100BASE-TX, 10BASE-T. Supported network protocols: TCP/IP, NetBEUI, AppleTalk, LPR, SMB, IPP. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link DP-301P+ print server Ethernet LAN Grey (DP-301PPLUS) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link DP-301P+ print server Ethernet LAN Grey includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link DP-301P+ print server Ethernet LAN Grey compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DP-301PPLUS.
