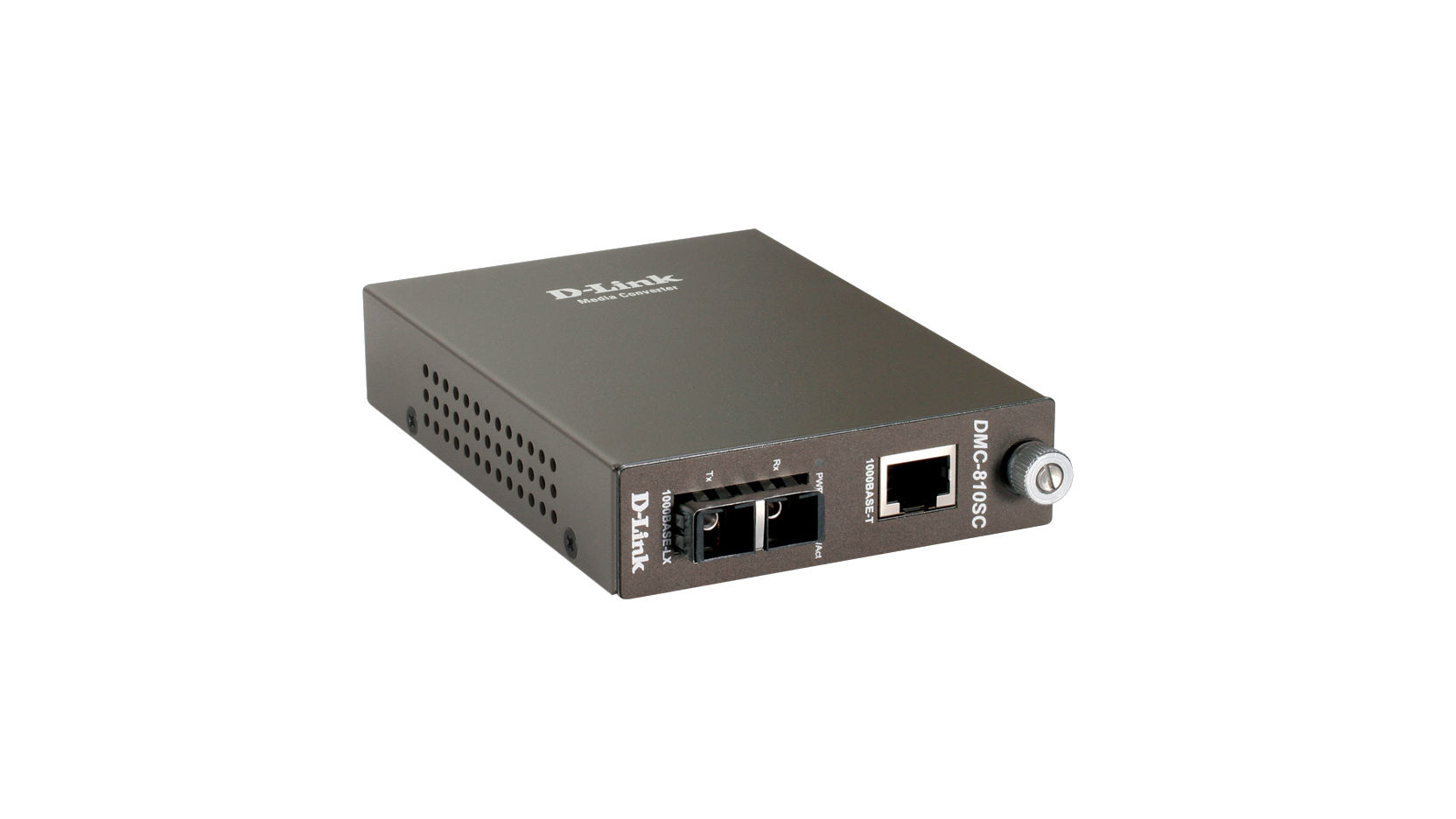

D-Link DMC-810SC network media converter 2000 Mbit/s 1310 nm Black
Brand: D-Link · SKU: DMC-810SC/E · MPN: DMC-810SC/E · Category: Components
D-Link DMC-810SC, 2000 Mbit/s, 1000Base-T, 1000Base-LX, 1000Base-SX, IEEE 802.3ab, IEEE 802.3z, Gigabit Ethernet, 1000 Mbit/s. D-Link DMC-810SC network media converter 2000 Mbit/s 1310 nm Black (part number DMC-810SC/E) is an enterprise components product available from Server Tech Central. Key specifications include depth 88 mm, width 120 mm, height 25 mm, weight 302 g, internal No, i/o ports 1000BASE-T, 1000BASE-SX/LX, MDI-II/MDI-X, dc-in jack Yes, wavelength 1310 nm. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 88 mm |
|---|---|
| Width | 120 mm |
| Height | 25 mm |
| Weight | 302 g |
| Internal | No |
| I/O ports | 1000BASE-T, 1000BASE-SX/LX, MDI-II/MDI-X |
| DC-in jack | Yes |
| Wavelength | 1310 nm |
| Certification | FCC Class A CE Class A VCCI Class A |
| Duplex system | Full |
| Input current | 1 A |
| Input voltage | 5 V |
| Package depth | 274 mm |
| Package width | 208 mm |
| Auto MDI/MDI-X | Yes |
| LED indicators | Yes |
| Package height | 68 mm |
| Package weight | 772.4 g |
| Product colour | Black |
| Store-and-forward | Yes |
| Cabling technology | RJ-45 |
| Pallet gross width | 120 cm |
| Pallet gross length | 110 cm |
| Pallet height (air) | 149.1 cm |
| Warranty | 3-Year Warranty |
| Weight | 302 g |
| Dimensions | 120 mm x 88 mm x 25 mm |
Product Description
This Media Converter can be used by itself or installed in a chassis and converts between 1000BASE-T Gigabit twisted-pair signals to 1000BASE-LX Gigabit single-mode fibre signals. The DMC-810SC converts 1000BASE-T Gigabit twisted-pair signals to 1000BASE-LX Gigabit single-mode fibre signals. Maximum fibre cable distance is 10 km. 1 RJ-45 port and 1 fibre port (SC type connector) are provided. The DMC-700SC can be used as stand-alone device or as a module installed in the DMC-1000 chassis. The media converter is housed in a solid metal case and comes with status LEDs and an external AC power adapter. If you install it in the DMC-1000 chassis, remove its metal case and slide its PC board into an open slot in chassis. In this application, the chassis provides power for all media converters inside it, and the media converter’s own external AC power adapter will not be necessary.
Key Features
D-Link DMC-810SC. Maximum data transfer rate: 2000 Mbit/s, Converter input interface: 1000Base-T, Converter output interface: 1000Base-LX, 1000Base-SX. Maximum transfer distance: 20000 m, Wavelength: 1310 nm. Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 5 V, Input current: 1 A
