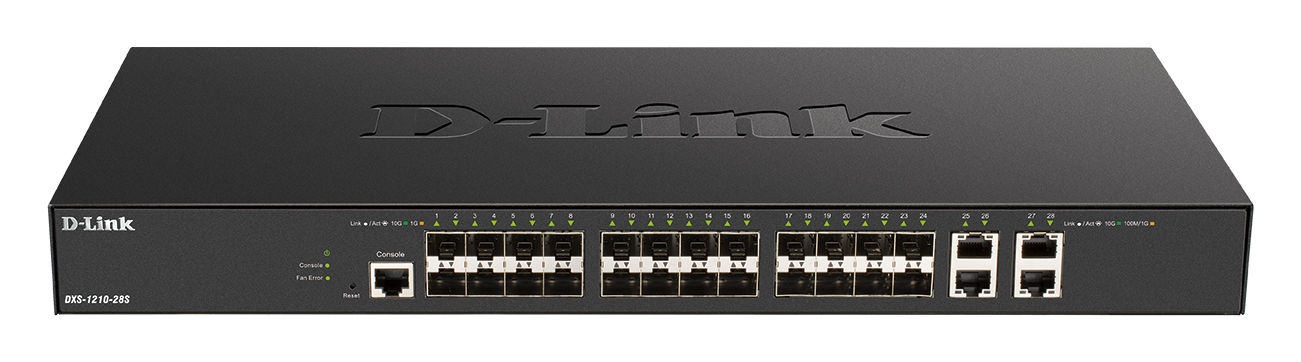

D-Link 24-port 10G SFP+, 4-port 10GBASE-T Smart Managed Switch
Brand: D-Link · SKU: DLI-DXS-1210-28S · MPN: D-Link 24-port 10G SFP+, 4-port 10GBASE-T Smart Managed Switch · Category: Networking
D-Link 24-port 10G SFP+, 4-port 10GBASE-T Smart Managed Switch, Managed, L2/L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U
Specifications
| Depth | 209.5 mm |
|---|---|
| Width | 441 mm |
| Height | 44 mm |
| Manual | Yes |
| Weight | 3.27 kg |
| Stackable | No |
| Throughput | 416.64 Mpps |
| 10G support | Yes |
| Form factor | 1U |
| Switch type | Managed |
| Console port | RJ-45 |
| Jumbo frames | 9000 |
| Switch layer | L2/L3 |
| VLAN support | Yes |
| Certification | CE Class A FCC Class A VCCI Class A IC BSMI |
| IGMP snooping | Yes |
| Rack mounting | Yes |
| Auto MDI/MDI-X | Yes |
| LED indicators | Activity, Link, Speed |
| Number of fans | 2 fan(s) |
| Port mirroring | Yes |
| Product colour | Black |
| Number of VLANs | 4094 |
| AC input voltage | 100 - 240 V |
| Warranty | 3-Year Warranty |
| Weight | 3.27 kg |
| Dimensions | 441 mm x 209.5 mm x 44 mm |
Product Description
The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10 Gigabit switches capable of servicing a range of network needs in any business environment. The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as either an aggregation/access switch in large enterprise environments or deployed at the core of an SMB network. With high performance and low latency, these 10G smart-managed switches fulfil the needs of virtualisation, cloud services, and server-to-server applications. The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time, inter-VLAN static routing helps by reducing the pressure of routers and backbone networks, improving overall network efficiency. The free D-Link Network Assistant utility allows multiple D-Link devices within the same L2 network to be discovered and managed. These switches also provide management through the multi-lingual web UI, a full command-line interface (CLI) through Telnet, a console port, as well as D-View 7 Network Management System.
Key Features
D-Link 24-port 10G SFP+, 4-port 10GBASE-T Smart Managed Switch. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 560 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z. Rack mounting, Form factor: 1U
Technical Deployment Advisory
Target Personnel
Spine-Leaf Architects
Infrastructure Fit
Core Aggregation Layer
"The DLI-DXS-1210-28S is built for the professional requirements of Core Aggregation Layer. It supports management features essential for Spine-Leaf Architects overseeing enterprise fabrics."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link 24-port 10G SFP+, 4-port 10GBASE-T Smart Managed Switch (DLI-DXS-1210-28S) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link 24-port 10G SFP+, 4-port 10GBASE-T Smart Managed Switch includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link 24-port 10G SFP+, 4-port 10GBASE-T Smart Managed Switch compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DLI-DXS-1210-28S.
