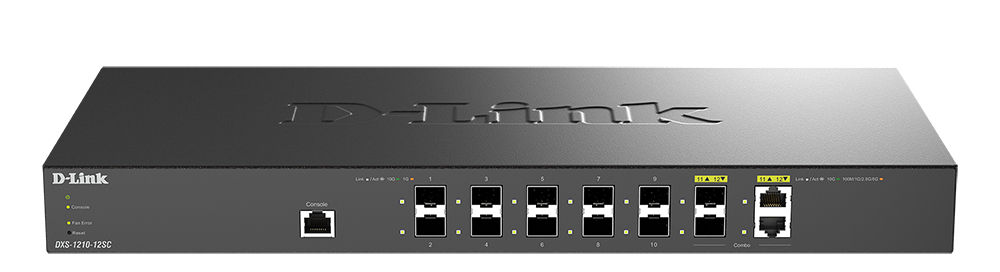

D-Link 10-port 10G SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed Switch
Brand: D-Link · SKU: DLI-DXS-1210-12SC · MPN: D-Link 10-port 10G SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed Switch · Category: Networking
D-Link 10-port 10G SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed Switch, Managed, L2/L3, Rack mounting, 1U
Specifications
| Depth | 210 mm |
|---|---|
| Width | 440 mm |
| Height | 44 mm |
| Weight | 2.72 kg |
| Stackable | Yes |
| 10G support | Yes |
| Form factor | 1U |
| MIB support | Y |
| Noise level | 46.3 dB |
| Switch type | Managed |
| Console port | RJ-45 |
| Jumbo frames | 10000 |
| Power source | AC |
| Switch layer | L2/L3 |
| VLAN support | Yes |
| Certification | CE, FCC, RCM, VCCI, IC, BSMI, cUL, BSMI, CB |
| DHCP features | DHCP client, DHCP server |
| IGMP snooping | Yes |
| Rack mounting | Yes |
| ARP inspection | Yes |
| Auto MDI/MDI-X | Yes |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Port mirroring | Yes |
| Warranty | 3-Year Warranty |
| Weight | 2.72 kg |
| Dimensions | 440 mm x 210 mm x 44 mm |
Product Description
10 Gigabit Ethernet Smart Managed Switches The D-Link DXS-1210 Series conveniently offers a range of 10-Gigabit copper and fiber port combinations to cost-effectively alleviate network congestion. Select models are equipped with SFP+ or SFP28 ports for 10G/25G expandable network designed for scalability and can auto-detect surveillance and voice data to ensure uninterrupted video footage and jitter-free VoIP calls. Alleviate Network Congestion Add 10‑Gigabit Ethernet connectivity with these affordable high-performance switches. Designed for deployment in small to medium-sized business (SMB) core networks and powerful enough for enterprise aggregation applications. Convenient Layer 2 & Layer 3 Lite Configurability The DXS-1210 Series can be deployed as a Layer 2 aggregation switch with features such as port mirroring, STP, and LACP. When implemented as a Layer 3 Lite core switch, IP interfaces, ARP, IPv6 ND, Default Routing, and Static Routing can be applied for efficient routing applications. An Added Line of Defense Against Attacks The DXS-1210 Series defends your network with D-Link’s innovative Safeguard Engine™ to neutralize threats such as malicious network flooding attacks, ARP spoofing, and bogus DHCP IP addressing. The DXS-1210 Series supports 802.1X port-based and host-based authentication, allowing the network to be authenticated through external RADIUS servers. Unhindered Surveillance & VoIP with a Simple Click If you need surveillance or VoIP, there is no need to build a dedicated network. With the DXS-1210 Series, expediting latency-intolerant services such as surveillance and VoIP through the existing network can’t be any easier. Simply enable the Auto Surveillance VLAN & Auto Voice VLAN features. Your surveillance videos will always run smoothly and your VoIP calls will be crystal-clear from beginning to end, even during peak working hours. Better for Your Budget, Better for the Planet When low-traffic or idle interface ports are detected, the DXS-1210 Series automatically transitions them into a low-power state, substantially reducing overall device power consumption. Furthermore, the DXS-1210 Series can determine the approximate length of cables attached to each port to apply just enough power for data transmission on that link, saving even more power while lowering total cost of ownership (TCO).
Key Features
D-Link 10-port 10G SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed Switch. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3z, IEEE 802.3az. Rack mounting, Form factor: 1U
Technical Deployment Advisory
Target Personnel
Network Fabric Engineers
Infrastructure Fit
Secure Campus Backbones
"Network Fabric Engineers should consider the DLI-DXS-1210-12SC for Secure Campus Backbones where consistent throughput and robust connectivity are mandatory."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link 10-port 10G SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed Switch (DLI-DXS-1210-12SC) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link 10-port 10G SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed Switch includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link 10-port 10G SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed Switch compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DLI-DXS-1210-12SC.
