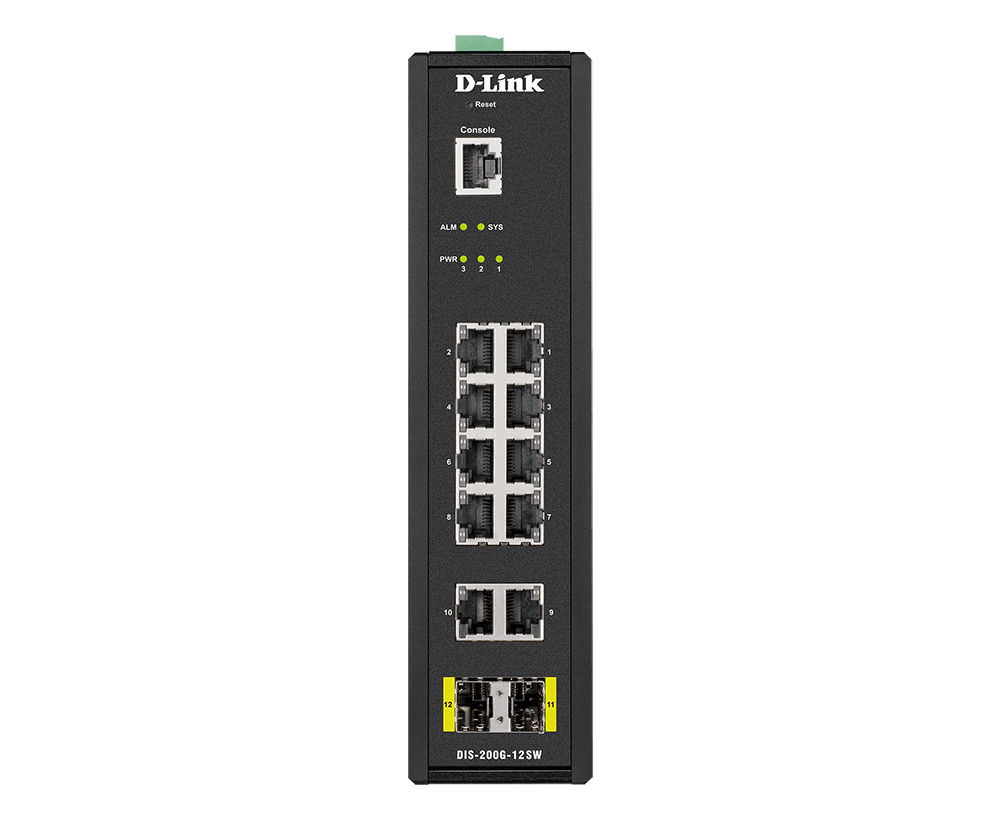

D-Link DIS-200G-12SW network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Brand: D-Link · SKU: DLI-DIS-200G-12SW · MPN: DIS-200G-12SW · Category: Networking
D-Link DIS-200G-12SW, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting
Specifications
| Depth | 53 mm |
|---|---|
| Width | 171.2 mm |
| Height | 210 mm |
| Weight | 1.63 kg |
| Stackable | No |
| 10G support | No |
| Full duplex | Yes |
| Switch type | Managed |
| Console port | RJ-45 |
| Jumbo frames | 9600 |
| Power source | PoE |
| Switch layer | L2 |
| VLAN support | Yes |
| Certification | CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Rack mounting | Yes |
| Authentication | Port-based authentication |
| Auto MDI/MDI-X | Yes |
| LED indicators | Yes |
| Port mirroring | Yes |
| Product colour | Black |
| Wall mountable | No |
| Forwarding rate | 17.85 Mpps |
| Warranty | 3-Year Warranty |
| Weight | 1.63 kg |
| Dimensions | 171.2 mm x 53 mm x 210 mm |
Product Description
Durable and Reliable Design The DIS-200G Series switches are housed in a highly resistant IP30-rated metal casing to protect them from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-200G Series from unwanted effects when operating in environments with strong electromagnetic interference. High Redundancy and Reliability The DIS-200G Series supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the device continues to operate in the event of a primary power supply failure. Surveillance Traffic Optimization The DIS-200G Series supports the Auto-Surveillance VLAN (ASV) feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting this type of traffic from the rest of the network. Easy Troubleshooting The DIS-200G Series features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. Limited Lifetime Warranty D-Link offers a Limited Lifetime Warranty on the DIS-200G Series Gigabit Industrial Unmanaged Switches to further its commitment to product quality and long-term customer confidence.
Key Features
D-Link DIS-200G-12SW. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10, Installed SFP modules quantity: 2, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... DC input voltage: 12 - 48 V. Rack mounting
Technical Deployment Advisory
Target Personnel
Spine-Leaf Architects
Infrastructure Fit
Core Aggregation Layer
"Scaling a Core Aggregation Layer requires hardware that ensures packet integrity; the D-Link DLI-DIS-200G-12SW is design-optimized for this specific role in the network stack."
