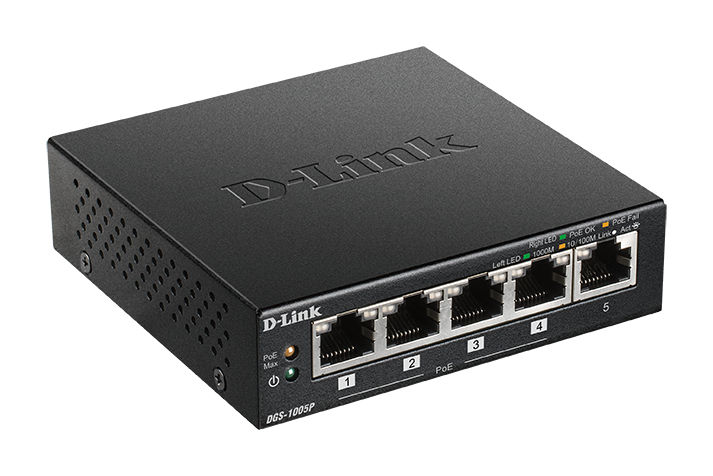

D-Link 5-Port Desktop Gigabit PoE+ Switch
Brand: D-Link · SKU: DLI-DGS-1005P · MPN: D-Link 5-Port Desktop Gigabit PoE+ Switch · Category: Networking
D-Link 5-Port Desktop Gigabit PoE+ Switch, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
Specifications
| Depth | 98 mm |
|---|---|
| Width | 100 mm |
| Height | 28 mm |
| Weight | 260 g |
| 10G support | No |
| Buffer size | 64 KB |
| Full duplex | Yes |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Certification | CE, BSMI, FCC , VCCI, RCM, cUL, CB, LVD, BSMI |
| Plug and Play | Yes |
| Rack mounting | No |
| Auto MDI/MDI-X | Yes |
| LED indicators | Activity, Link, PoE, Power, Speed, Status |
| Product colour | Black |
| Wall mountable | Yes |
| Power connector | DC-in jack |
| Housing material | Metal |
| Packet filtering | 7.44 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Switching capacity | 10 Gbit/s |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Warranty | 3-Year Warranty |
| Weight | 260 g |
| Dimensions | 100 mm x 98 mm x 28 mm |
Product Description
Fast. Compact. Convenient. The D‑Link DGS‑1005P 5‑Port Desktop Gigabit PoE+ Switch enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), network video cameras and IP phones to the network. Built with home and small business users in mind, the DGS‑1005P is compact and operates silently, making it ideal for most rooms and offices. Gigabit Performance. The DGS-1005P features plug-and-play installation and requires no configuration. Automatic MDI/MDI-X support on all ports removes the need for crossover cables when connecting to another switch, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device. With wire-speed filtering and store-and-forward switching, the DGS-1005P maximises network performance while minimising the transmission of bad network packets. Power Over Ethernet+ The DGS-1005P features four Gigabit Ethernet ports that support the IEEE 802.3af and IEEE 802.3at PoE, supplying up to 30 W on each PoE port and providing a total power budget of 60 W. You can connect compatible devices to the DGS-1005P without using an additional power supply. This allows you to save on cabling and power supplies and to install devices on locations without immediate access to power outlets. Green Technology The DGS-1005P features green technology such as IEEE 802.3az Energy-Efficient Ethernet (EEE), link status detection, and cable length detection. EEE adjusts the power consumption of the switch based on network utilisation, reducing energy use during periods of inactivity. Link status detection powers down unused ports, saving power when connected devices are shut down or disconnected. Cable length detection adjusts the power output of the port based on the cable length, reducing the power requirements of the switch. Compact and Silent The compact design of the DGS-1005P allows placement in most locations, including those where space is at a premium. The desktop form factor provides everything you need to set up a new network or expand an existing network, while the fanless design ensures silent operation even in noise-sensitive areas such as workstations and meeting rooms.
Key Features
D-Link 5-Port Desktop Gigabit PoE+ Switch. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE.... Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
Technical Deployment Advisory
Target Personnel
Network Security Admins
Infrastructure Fit
Leaf-Spine Data Center Fabrics
"Scaling a Leaf-Spine Data Center Fabrics requires hardware that ensures packet integrity; the D-Link DLI-DGS-1005P is design-optimized for this specific role in the network stack."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link 5-Port Desktop Gigabit PoE+ Switch (DLI-DGS-1005P) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link 5-Port Desktop Gigabit PoE+ Switch includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link 5-Port Desktop Gigabit PoE+ Switch compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DLI-DGS-1005P.
