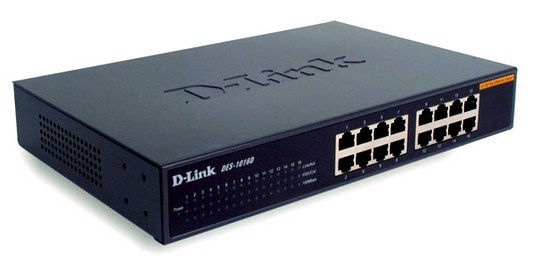

D-Link DES-1016D Unmanaged
Brand: D-Link · SKU: DLI-DES-1016D · MPN: DES-1016D · Category: Components
Specifications
| Full duplex | Yes |
|---|---|
| Switch type | Unmanaged |
| Package depth | 376 mm |
| Package width | 282 mm |
| LED indicators | Power |
| Package height | 78 mm |
| Package weight | 1.82 kg |
| Internal memory | 2 MB |
| MAC address table | 8000 entries |
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 324 x 231 x 44.5 mm |
| Pallet gross width | 110 cm |
| Pallet gross length | 120 cm |
| Pallet height (air) | 137.9 cm |
| Pallet height (sea) | 2.03 m |
| Connectivity technology | Wired |
| Pallet gross weight (air) | 256.4 kg |
| Pallet gross weight (sea) | 376.1 kg |
| Power over Ethernet (PoE) | No |
| Products per pallet (air) | 120 pc(s) |
| Products per pallet (sea) | 180 pc(s) |
| Maximum data transfer rate | 0.1 Gbit/s |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 - 50 °C |
| Warranty | 3-Year Warranty |
| Dimensions | 324 x 231 x 44.5 mm |
Product Description
16-Port 10/100Mbps Switch for SOHO/Workgroup 10/100Mbps Unmanaged Switch The DES-1016D is an unmanaged 10/100Mbps switch designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. 16 Auto-sensing 10/100Mbps Ports The switch comes with 16 10/100Mbps ports, allowing a small workgroup to flexibly integrate to Ethernet and Fast Ethernet. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full and half-duplex. Flow Control for Secure Transmission All ports support flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full. Auto-negotiation of MDI/MDIX Cross Over All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable. Plug-and-Play With 16 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment. The ports can be connected to servers in fullduplex, or hubs in half-duplex. Direct Connection to Workstations With low-cost connection per-port, the switch can be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network.
Key Features
D-Link DES-1016D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries
Technical Deployment Advisory
Target Personnel
Systems Maintenance Techs
Infrastructure Fit
Mid-Lifecycle Capacity Expansion
"For Mid-Lifecycle Capacity Expansion, using verified parts like the DLI-DES-1016D prevents downtime and maintains the service integrity expected by Systems Maintenance Techs."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link DES-1016D Unmanaged (DLI-DES-1016D) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link DES-1016D Unmanaged includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link DES-1016D Unmanaged compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DLI-DES-1016D.
