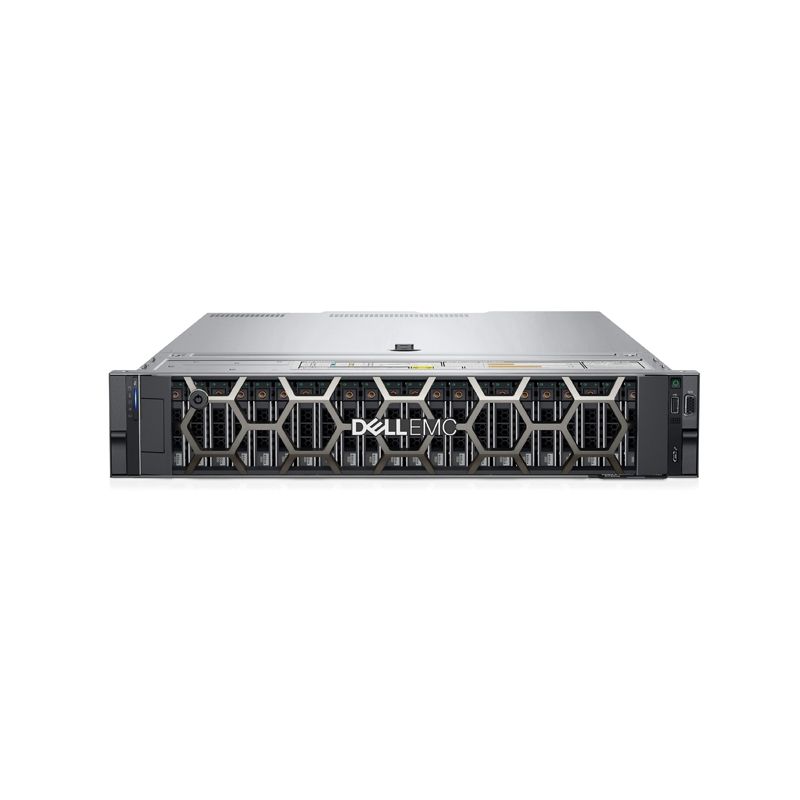

R750xs-8LFF-Server, Dell R750xs Server, 8xLFF/High Performance/Enterprise
SKU: DL:R750xs-8LFF-Server · MPN: DL:R750xs-8LFF-Server · Category: Servers
Specifications
| Fans | • Standard fans/High performance Silver fans/High performance Gold fans • Up to six hot swap fans |
|---|---|
| PCIe | Up to 5 x PCIe Gen4 slots / 1 x PCie Gen3 slots |
| Bezel | Optional LCD bezel or security bezel |
| Ports | Front Ports • 1 x Dedicated iDRAC Direct micro-USB • 1 x USB 2.0 • 1 x VGA Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x RJ-45 • 1 x VGA (optional for liquid cooling configuration) Internal Ports • 1 x USB 3.0 (optional) |
| Memory | • 16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s • Supports registered ECC DDR4 DIMMs only |
| Mobility | OpenManage Mobile |
| Security | • Cryptographically signed firmware • Secure Boot • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Processor | Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores |
| Dimensions | • Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 707.78 mm (27.85 inches) – without bezel 721.62 mm (28.4 inches) – with bezel |
| Drive Bays | Front bays: • 0 drive bay • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB |
| Form Factor | 2U rack server |
| GPU Options | Not supported |
| Embedded NIC | 2 x 1 GbE LOM |
| Power Supplies | • 600 W DC/240 V • 600 W Platinum AC/100 - 240 V • 800 W DC/240 V • 800 W Platinum AC/100 - 240 V • 1100 W DC/-48–(-60) V • 1100 W DC/240 V • 1100 W Titanium AC/100 - 240 V • 1400 W DC/240 V • 1400 W Platinum AC/100 - 240 V |
| Cooling Options | Air cooling |
| Network Options | 1 x OCP 3.0 |
| Embedded Management | • iDRAC9 • iDRAC Service Module • iDRAC Direct • Quick Sync 2 wireless module |
| OpenManage Software | • OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin |
| Storage controllers | • Internal controllers: PERC H345, PERC H745, PERC H755, PERC H755N, HBA355i, S150 • Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs, USB • External PERC (RAID): PERC H840, HBA355e |
| Integrations and Connections | OpenManage Integrations • BMC Truesight • Microsoft System Center • Red Hat Ansible Modules • VMware vCenter and vRealize Operations Manager OpenManage Connections • IBM Tivoli Netcool/OMNIbus • IBM Tivoli Network Manager IP Edition • Micro Focus Operations Manager • Nagios Core • Nagios XI |
| Operating System and Hypervisors | • Canonical Ubuntu Server LTS • Citrix Hypervisor • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this R750xs-8LFF-Server, Dell R750xs Server, 8xLFF/High Performance/Enterprise (DL:R750xs-8LFF-Server) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This R750xs-8LFF-Server, Dell R750xs Server, 8xLFF/High Performance/Enterprise includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the R750xs-8LFF-Server, Dell R750xs Server, 8xLFF/High Performance/Enterprise compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DL:R750xs-8LFF-Server.
