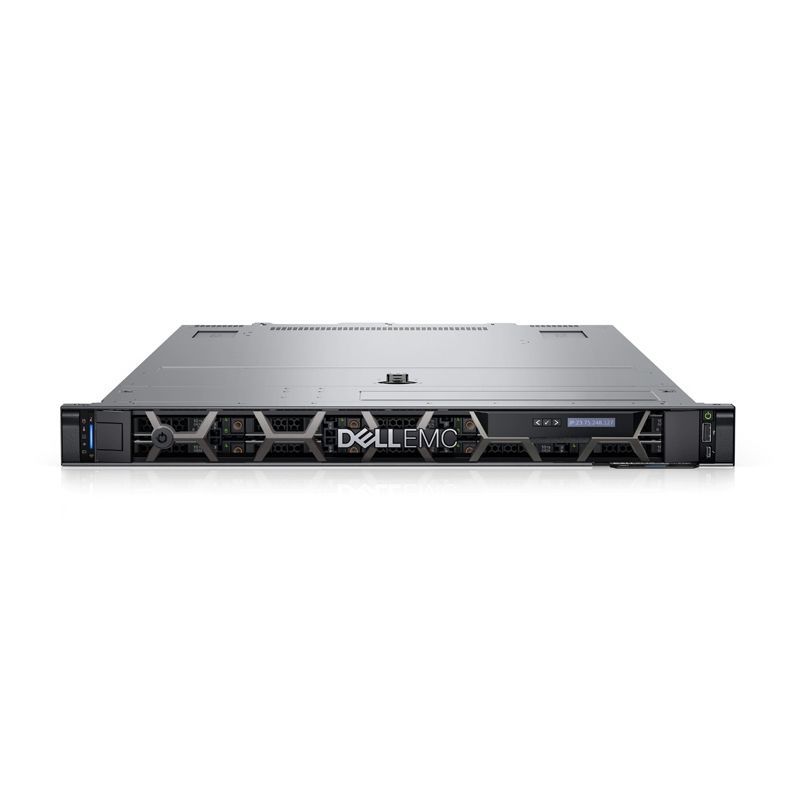

R650-8SFF-Server, Dell R650 Server, 8xSFF/Scalable CPU/DDR4
SKU: DL:R650-8SFF-Server · MPN: DL:R650-8SFF-Server · Category: Components
Specifications
| Bezel | Optional LCD bezel or security bezel |
|---|---|
| Ports | Network Options 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 2 x RJ-45 1 x VGA (optional for liquid cooling configuration) Internal Ports 1 x USB 3.0 (optional) |
| Slots | Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAPI I/O option) or 2 x PCIe (Gen4) full height slots Video Card 1 x VGA (optional for liquid cooling configuration) |
| Memory | DIMM Speed Up to 3200 MT/s Memory Type RDIMM LRDIMM NVDIMM Intel® Persistent Memory 200 series (BPS) Memory Module Slots 32 DDR4 DIMM slots Maximum RAM RDIMM 2 TB LRDIMM 4TB NVDIMM 128 GB Intel® Persistent Memory 200 series (BPS) 8TB |
| Chipset | Intel®C620A chipset |
| Storage | Front Bays Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB Rear bays Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB |
| Security | Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Processor | Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 24 cores per processor |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Service Module iDRAC Direct Quick Sync 2 wireless module Consoles OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin Mobility OpenManage Mobile Tools iDRAC RESTful API with Redfish IPMI RACADM CLI System Update Utility Update Catalogs OpenManage Integrations BMC® Truesight Microsoft® System Center Red Hat® Ansible® Modules VMware® vCenter and vRealize Operations Manager OpenManage connections IBM Tivoli® Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition Micro Focus® Operations Manager Nagios Core Nagios® XI |
| Form Factor | 1U rack server |
| Accelerators | Up to three 75 W single-width GPU |
| Rack Support | ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. |
| Power Supplies | 800 W Platinum AC/240 V Mixed Mode 1100 W Titanium AC/240 V Mixed Mode 1400 W Platinum AC/240 V Mixed Mode 1100 W DC -48 - 60 V Hot plug power supplies with full redundancy option |
| Operating System | (Dell Technologies recommends Windows 11 Pro for business) Canonical® Ubuntu® Server LTS Citrix® Hypervisor® Microsoft® Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
| Dimensions & Weight | Height 42.8 mm (1.68 inches) Width 482 mm (18.97 inches) Depth 809 mm (31.85 inches) – without bezel 822.84 mm (32.39 inches) – with bezel Weight 21.2 kg (46.7 lbs) |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Storage Controllers | Internal Controllers PERC H745, H345, HBA355I, H755, H755N External Controllers PERC H840, HBA355E Software RAID S150 Internal Boot Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or Internal USB 3.0 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this R650-8SFF-Server, Dell R650 Server, 8xSFF/Scalable CPU/DDR4 (DL:R650-8SFF-Server) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This R650-8SFF-Server, Dell R650 Server, 8xSFF/Scalable CPU/DDR4 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the R650-8SFF-Server, Dell R650 Server, 8xSFF/Scalable CPU/DDR4 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DL:R650-8SFF-Server.
